AL1921 IO-Link master with EtherNet/IP interface
16
7 Operating and display elements

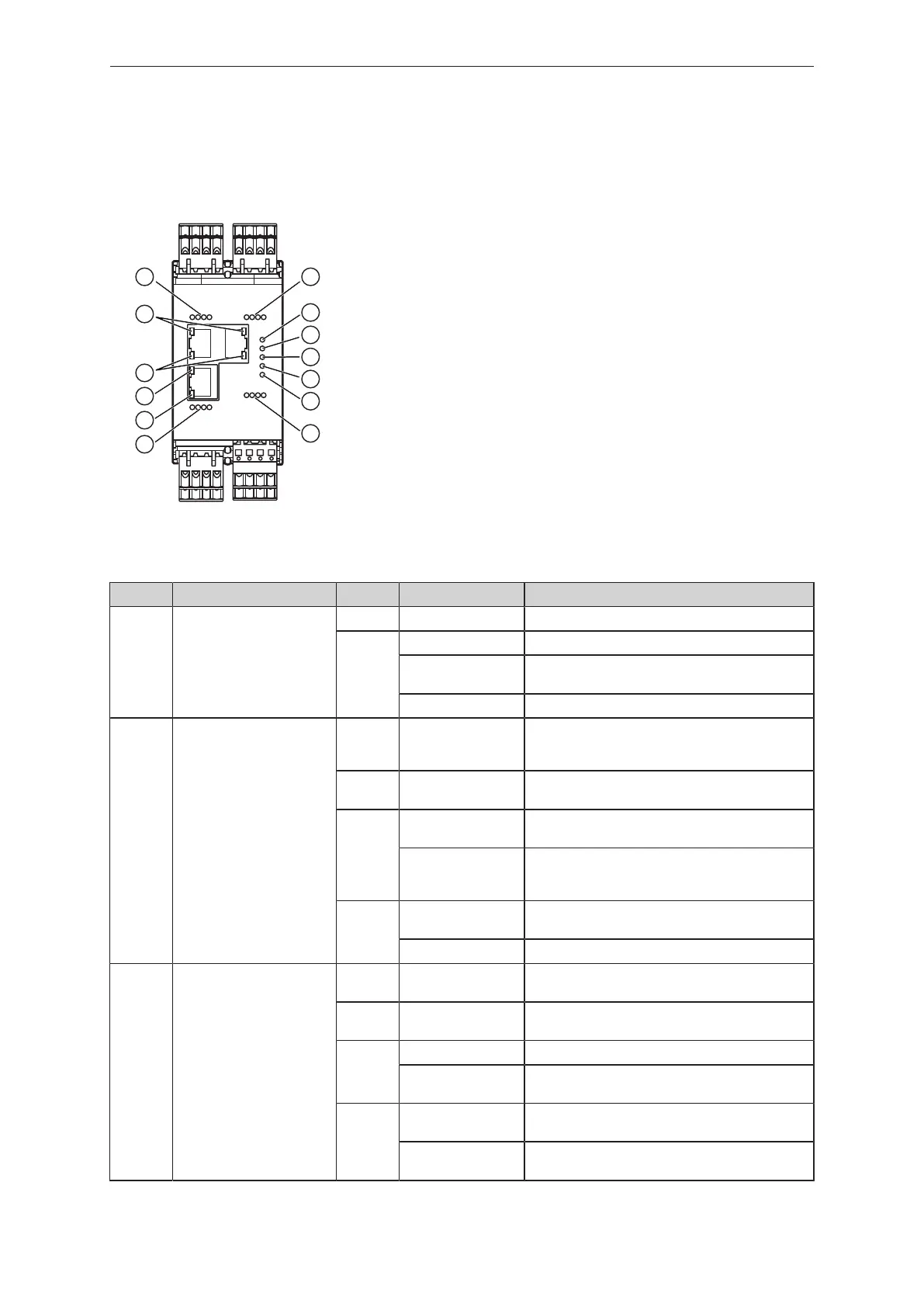

7.1 LEDs
2
3
4
5
6
7
8
1
1
1
1
10
9
1:
Ports: , DI
2: Power In: PWR
3: Status: RDY
4: Status: BF
5: Status: SF
6: IoT: IoT
7: IoT: LNK
8: IoT: ACT
9: EtherNet/IP: LNK
10: EtherNet/IP: ACT
7.1.1 Status
LED Description Colour State Description
RDY Gateway status -- Off Not active or reboots
green flashes (5Hz) Error
flashes (200ms on,
800ms off)
Firmware update running
On OK
NET Network status -- off Not powered, no IP address: device has no IP ad-
dress or no voltage applied or voltage applied is
too low
green /
red
flashes
Self test: device in self-test after start (Ò MOD-
LED)
green flashes (1Hz) No connection: no CIP connection established and
no Exclusive Owner connection timeout
on Connected: device has IP address and at least
one CIP connection established and no Exclusive
Owner connection timeout
red flashes (1Hz) Connection timeout: device has IP address and
Exclusive Owner connection timeout
on Duplicate: IP address used twice
MOD EtherNet/IP module status -- off No power: no voltage is applied or the applied volt-
age is too low
green /
red
flashes Self test: device in self-test
green flashes (2 Hz) Standby: device not yet configured (no IP address)
on Device operational: device functions reliably (nor-
mal operation)
red flashes (1Hz) Major recoverable fault: serious, recoverable error
(e.g. incorrect configuration)
on Major unrecoverable fault: serious, unrecoverable
error (e.g. module failed)
