AL1590 SolutionBlock IO-Link master
24

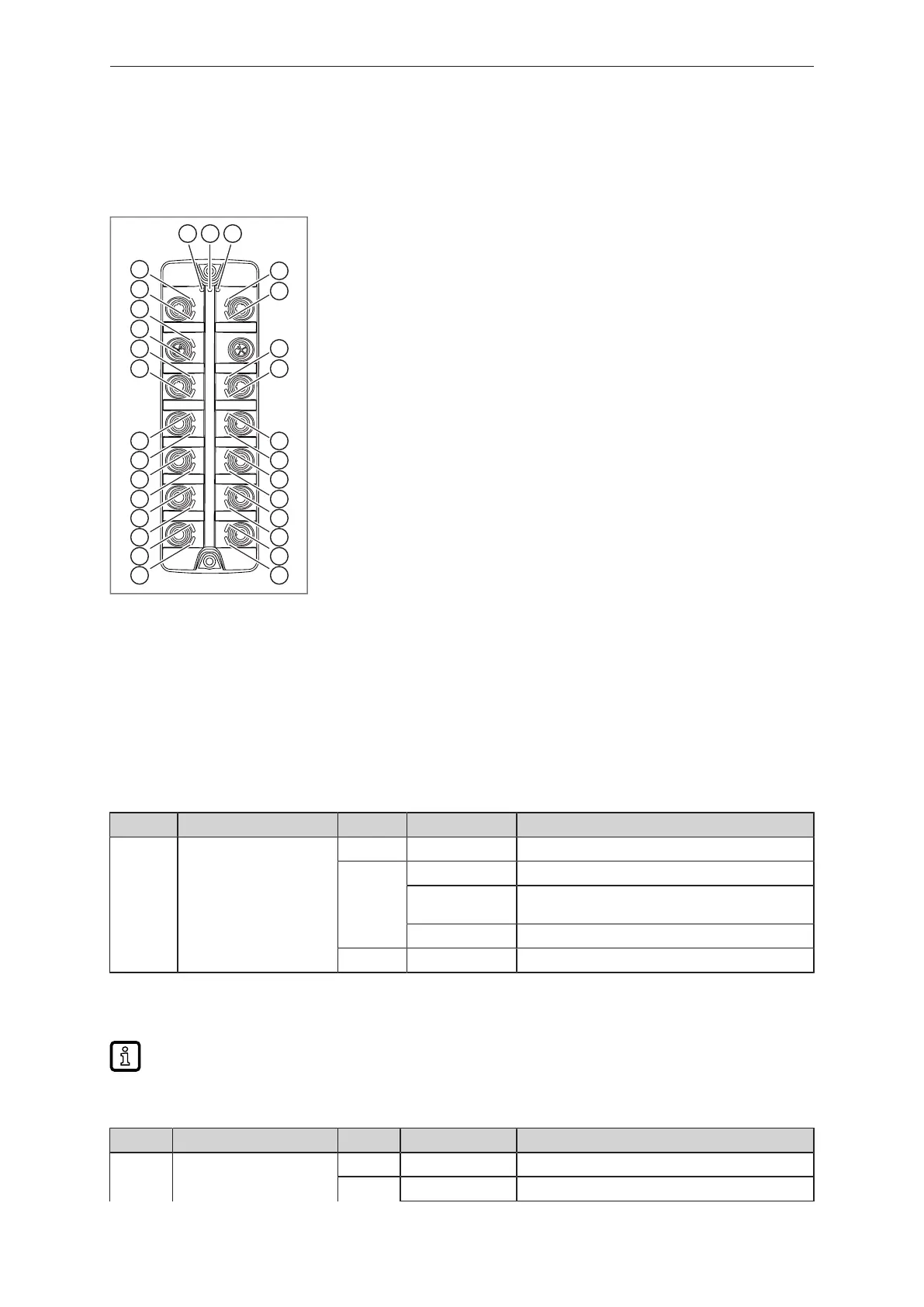

7 Operating and display elements
7.1 Overview
1 2 3
4
5
6
7
6
7
8
9
8
9
10
11
10
11
8
9
8
9
10
11
10
11
4
5
13
12
1: Status: RDY
2: Status: BF (PROFINET) / NET (EtherNet/IP)
3: Status: SF (PROFINET) / MOD (EtherNet/IP)
4: Ethernet: LINK
5: Ethernet: ACT
6: IIoT: LINK
7: IIoT: ACT
8:
IO-Link (Class B):
9: IO-Link (Class B): UA/DO
10:
IO-Link (Class A):
11: IO-Link (Class A): DI
12: Voltage supply: UA
13: Voltage supply: US
7.2 LEDs
7.2.1 Status
7.2.1.1 Gateway and system
Device in standard mode:
LED Description Colour State Description
RDY Gateway and system sta-
tus
-- Off Gateway: Not active or reboots
Green Flashes (5Hz) Gateway: Error
Flashes (200ms
on, 800ms off)
Gateway: Firmware update running
On Gateway: OK
red Flashes (2Hz) Error / power supply error
7.2.1.2 Fieldbus communication
The flashing behaviour of the LEDs depends on the active fieldbus type.
PROFINET
LED Description Colour Status Description
BF BF (Bus Failure): PROF-
INET status
-- Off PROFINET: error-free
red Flashes (1Hz) PROFINET: no connection to the controller
