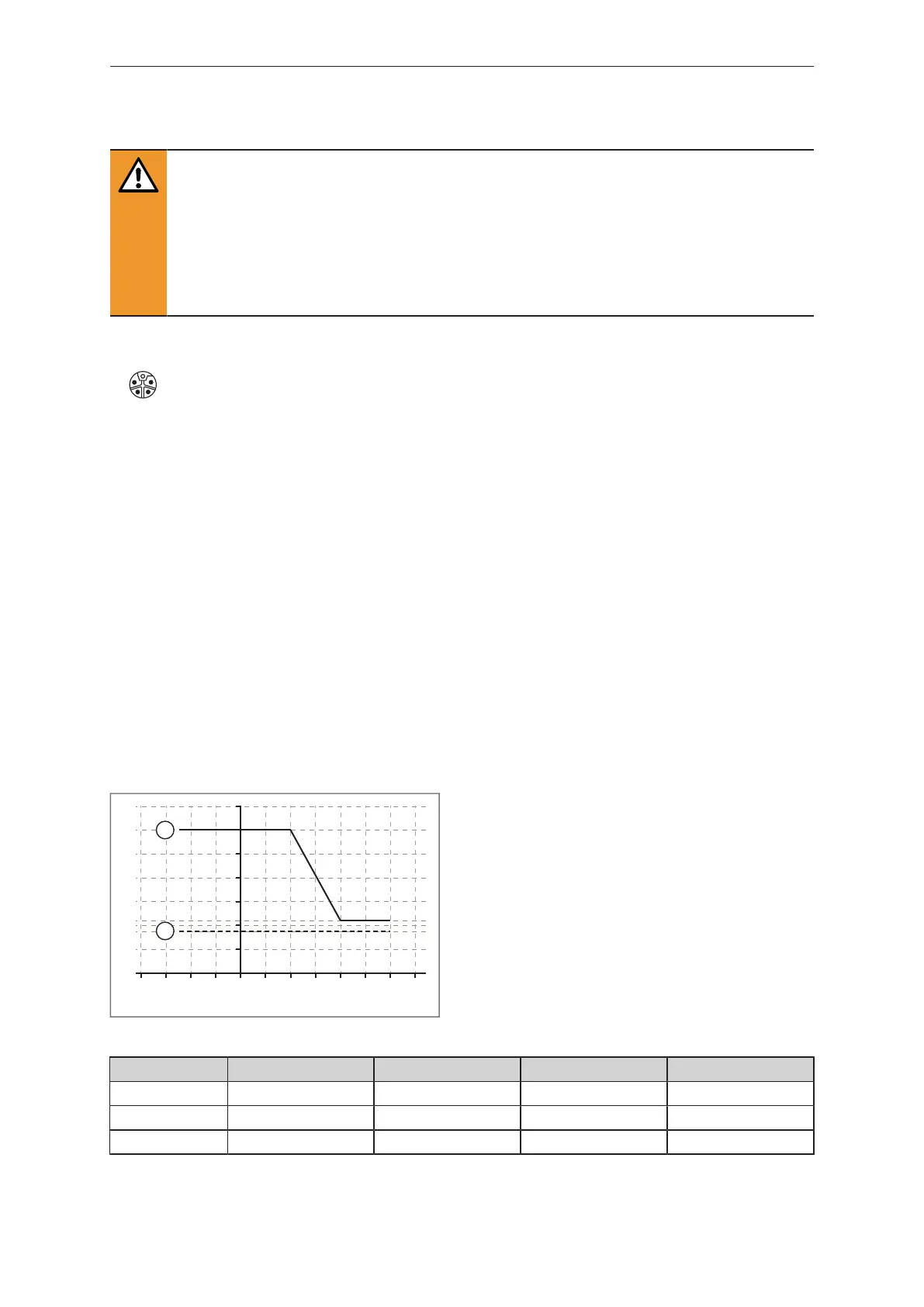

AL1590 SolutionBlock IO-Link master
22
The XD1 port is equipped with reverse polarity protection (US, UA).
WARNING
No internal fusing of the supply voltages US and UA for daisy chaining
w Fire hazard in the event of overload or short circuit
u Limit or fuse the supply voltages US and UA externally.
u Observe technical data, derating values and applicable regulations!
w Protection is guaranteed.
Wiring:
3
1 4
2
5
1: L+ (US)
2: L- (UA)
3: L- (US)
4: L+ (UA)
5: FE
u Disconnect power.
u Connect the device via port XD1 to the supply voltage US with 24VDC (18...30VPELV).
u Connect the device via port XD1 to the supply voltage UA with 24VDC (18...30VPELV).
u Use an EVCA-type L-coded M12 plug connection from ifm for the connection (min. protection
rating: IP65 / IP66 / IP67).
u Tighten the cable sockets according to the torque specifications indicated by the cable vendor.
Maximum permissible tightening torque: 0.9Nm
6.8.1 Derating behaviour
The current I
US
available at ports X1...X8, the current I
UA
available at ports X1...X4, and the currents I
US-
daisy-chain
and I
UA-daisy-chain
available at port XD2 depend on the ambient temperature of the device.
• I
US
(XD1) = I
US
(X1…X8) + I
US-daisy-chain
(XD2)
• I
UA
(XD1) = I
UA
(X1…X4) + I
UA-daisy-chain
(XD2)
Height: 2000m
-40 -30 -20 -10 0 10 20 30 40 50 60 70
2
4
6
8
10
12
14
Current [A]
Temperature [°C]
1
2
1: I
US-daisy-chain
(XD2), I
UA-daisy-chain
(XD2)
2: I
US
(X1…X8), I
UA
(X1…X4)
Example:
Temperature I
US
(X1…8) I
US-daisy-chain
(XD2) I
UA
(X1…X4) I
UA-daisy-chain
(XD2)
20°C 3.6A 12 A 3.6A 12 A
30°C 3.6A 8 A 3.6A 8 A
40°C 3.6A 4.3 A 3.6A 4.3 A
