SolutionBlock IO-Link master AL1590
19

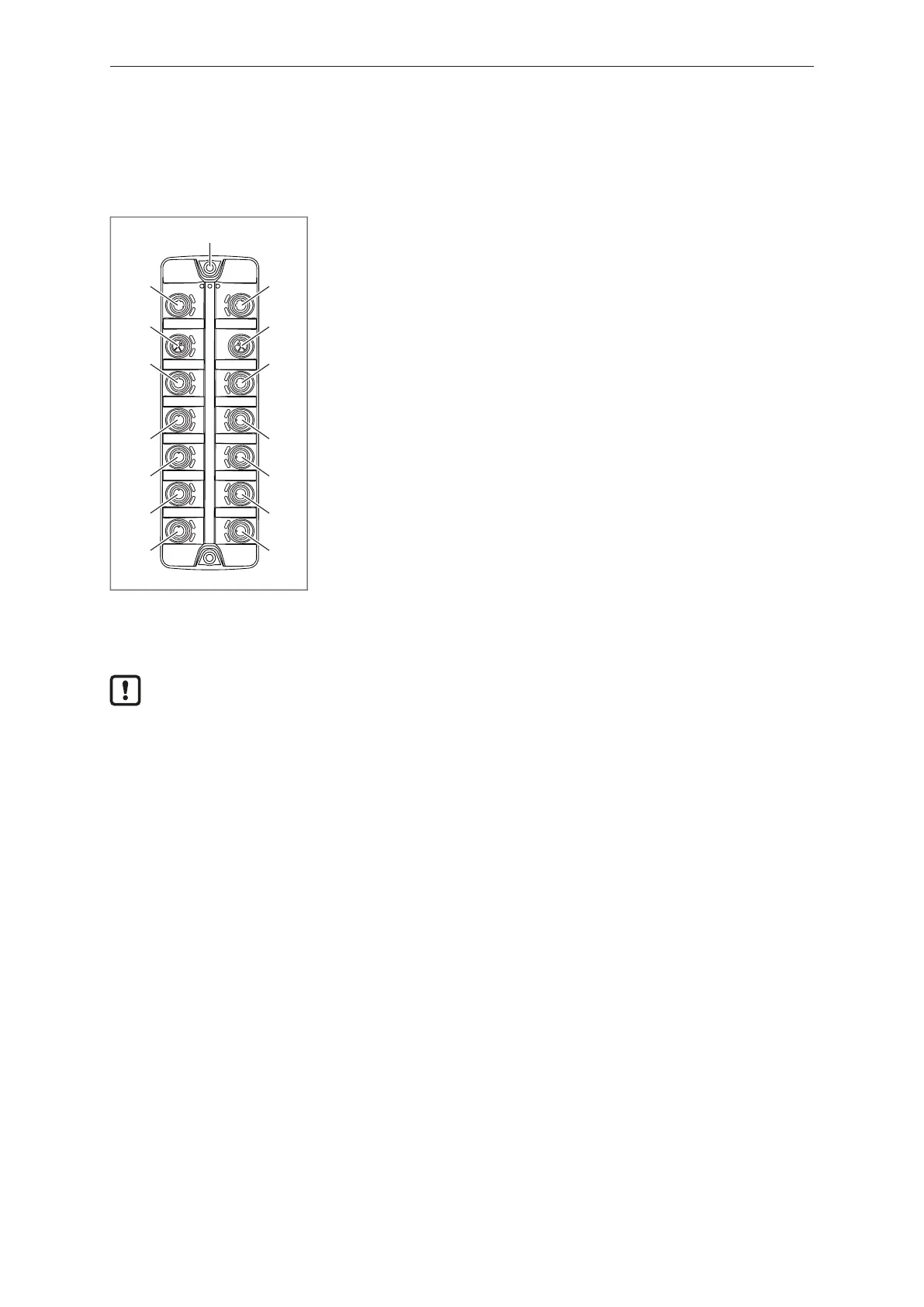

6 Electrical connection
6.1 Overview
XF1 XF2
XD1 XD2
X1
X3
X5
X7
X2
X4
X6
X8
XI1 XI2
FE
FE: Functional earth (FE)
XF1: Fieldbus port 1 (PROFINET / EtherNet/IP)
XF2: Fieldbus port 2 (PROFINET / EtherNet/IP)
XD1: Voltage supply
XD2: Voltage output
XI1: IIoT port 1
XI2: IIoT port 2
X1: IO-Link port (class B)
X2: IO-Link port (class B)
X3: IO-Link port (class B)
X4: IO-Link port (class B)
X5: IO-Link port (class A)
X6: IO-Link port (class A)
X7: IO-Link port (class A)
X8: IO-Link port (class A)
6.2 General wiring information
The unit must be connected by a qualified electrician.
u Observe the national and international regulations for the installation of electrical equipment.
The device is suitable for operation on PELV voltages.
u Observe the notes on IO-Link wiring.
This device contains components that may be damaged or destroyed by electrostatic discharge
(ESD).
u Please observe the required precautions against electrostatic discharge!
The circuits are insulated from each other and from device surfaces that could be touched with basic
insulation according to IEC 61010-1 (secondary circuit with max. 30 V DC, supplied from the mains
circuit up to 300 V of overvoltage category II). The external wiring has to be carried out in a way that
ensures the required separation from other circuits.
The communication interfaces are isolated from each other, from the electrical circuits and from the
touch surfaces of the device with basic insulation in accordance with EN61010-1 (secondary circuit
with maximum 30 V DC, derived from mains circuit up to 300 V of overvoltage category II). The
external wiring has to be carried out in a way that ensures the required separation from other circuits.
6.2.1 Connection technology
The threaded connections in the device correspond to the M12 standard. To ensure compliance with
the specified protection rating, only cables that comply with this standard may be used. In the case of
self-assembled cables, the system manufacturer is responsible for the protection rating.
u Use connectors with gold-plated contacts.
u During installation, place the connectors vertically so that the coupling nut will not damage the
thread.
