AL1431 IO-Link master with EtherCAT interface
18

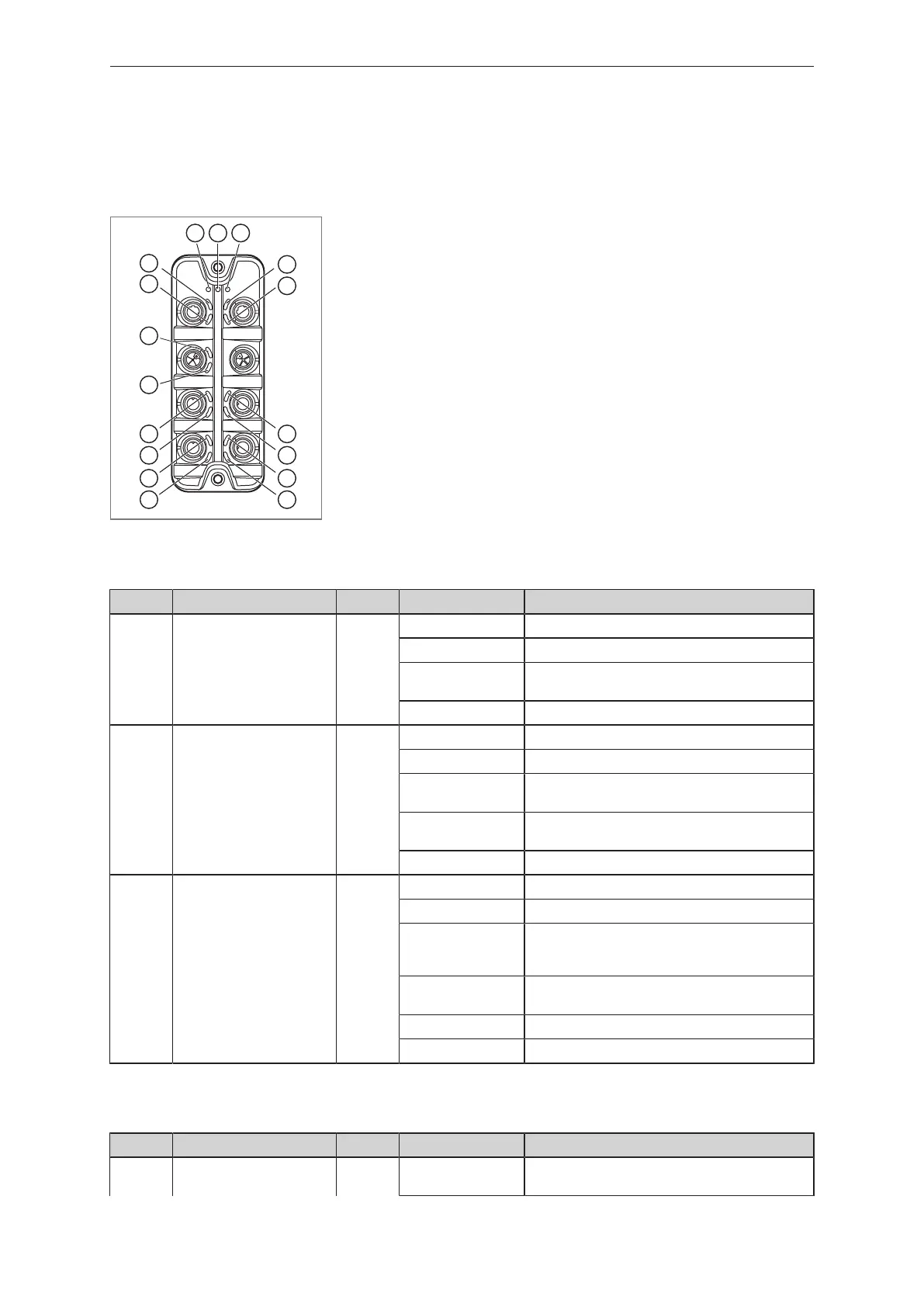

7 Operating and display elements
7.1 LEDs
2 3
4
5
6
7
8
1
4
5
9
6
7
6
7
6
7
1: status: RDY
2: status: ERR
3: status: RUN
4: EtherCAT: LINK
5: EtherCAT: ACT
6:
IO-Link:
7: IO-Link: UA DO
8: Power IN: UA
9: Power IN: US
7.1.1 Status
LED Description Colour State Description
RDY Gateway status Green Off Gateway: Not active or reboots
Flashes (5Hz) Gateway: Error
Flashes (200ms on,
800ms off)
Gateway: Firmware update running
On Gateway: OK
RUN EtherCAT status Green Off Device in “INIT” state
Flashes (2.5Hz) Device in “PRE-OPERATIONAL” state
Flashes (200ms on,
1000ms off)
Device in “SAFE-OPERATIONAL” state
Flashes (10Hz) Device starts and is not yet in the “INIT” state or
device is in the “BOOTSTRAP” state
On Device in “OPERATIONAL” state
ERR Error indication Red Off No error
Flashes (10Hz) Boot error
Flashes (200ms on,
200ms off, 200ms
on, 1000s off)
Watchdog error (EtherCAT or process data)
Flashes (200ms on,
1000ms off)
Local error
Flashes (2.5Hz) Invalid configuration
On Error in application controller
7.1.2 Voltage supply
LED Description Colour State Description
US Status of the supply voltage
US
Green Off No supply voltage is applied or the applied voltage
is too low
