IO-Link master with EtherCAT interface AL1430
13
For UL applications:
u To connect the device and the IO-Link devices, only use UL-certified cables belonging to category
CYJV or PVVA with a minimum temperature of 80°C (75°C in case of a maximum ambient
temperature of 40°C).
6.3 Ethernet ports
The device is connected to the EtherCAT network via the Ethernet ports (e.g. EtherCAT control).
The device is connected to the IT network via the Ethernet ports. The user can configure the device
via the IT network (e.g. laptop/PC with parameter setting software, web browser for access to IoT Core
Visualizer).
Parameter setting with ifm moneo and ifm IoT Core Visualizer is only possible if the Ethernet
over EtherCAT (EoE) protocol is activated and configured on the EtherCAT master and the
EtherCAT slave.
u Observe the notes: Using Ethernet over EtherCAT (EoE) (Ò/47)

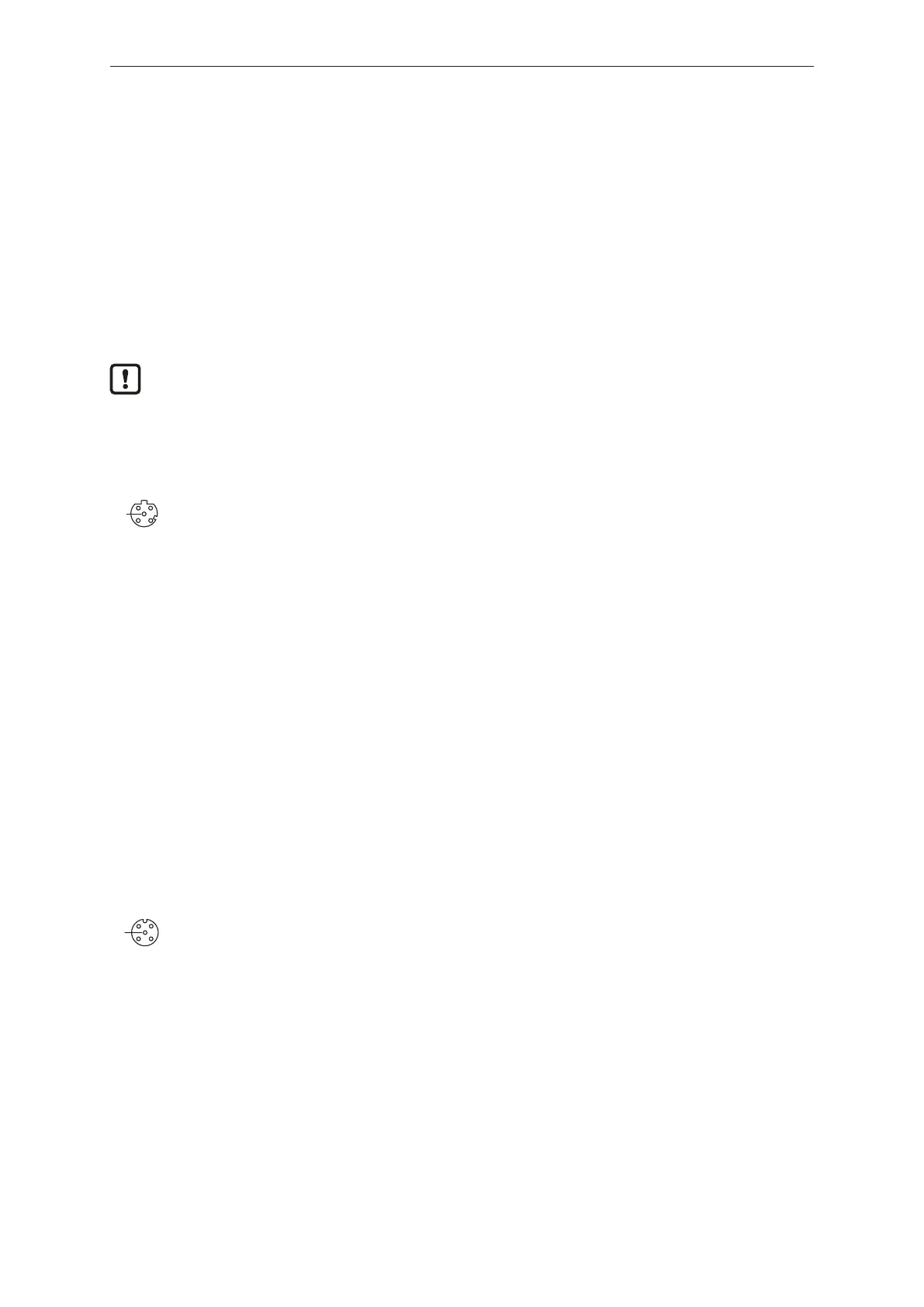

Wiring:
1 2
34
5
1: TX+
2: RX+
3: TX-
4: RX-
5: not used
u Use a free port (XF1, XF2) to connect the device to the EtherCAT network.
u For connection, use M12 connectors (minimum protection rating: IP 65 / IP 66 / IP 67).
u Tighten the cable plug using 1.3 ± 0.1Nm.
6.4 IO-Link ports (class B)
IO-Link devices (sensors, actuators) are connected to the IO-Link ports (class B).
The IO-Link ports meet the requirements of the IO-Link specifications 1.0 to 1.1.2.
The ports are equipped with short-circuit detection (US, UA).
The connected IO-Link devices must be supplied exclusively via the IO-Link master.
The additional digital output at pin 2 of the ports meets the requirements of utilisation category DC-13
according to standard IEC 60947-5-1, 20W.
Wiring:
3
1 2
4
5
1: Sensor supply L+ (US)
2: Digital output / Actuator supply L+ (UA)
3: Sensor supply L- (US)
4: C/Q IO-Link
5: Actuator supply L- (UA)
6.4.1 Connecting IO-Link devices (class B)
u Connect the IO-Link devices to ports X1...X4. Maximum cable length per port: 20 m.
u For connection, use M12 connectors (minimum protection rating: IP 65 / IP 66 / IP 67).
u Tighten the cable plug using 1.3 ± 0.1Nm.
