IIoT controller AE3400
13
6 Electrical connection

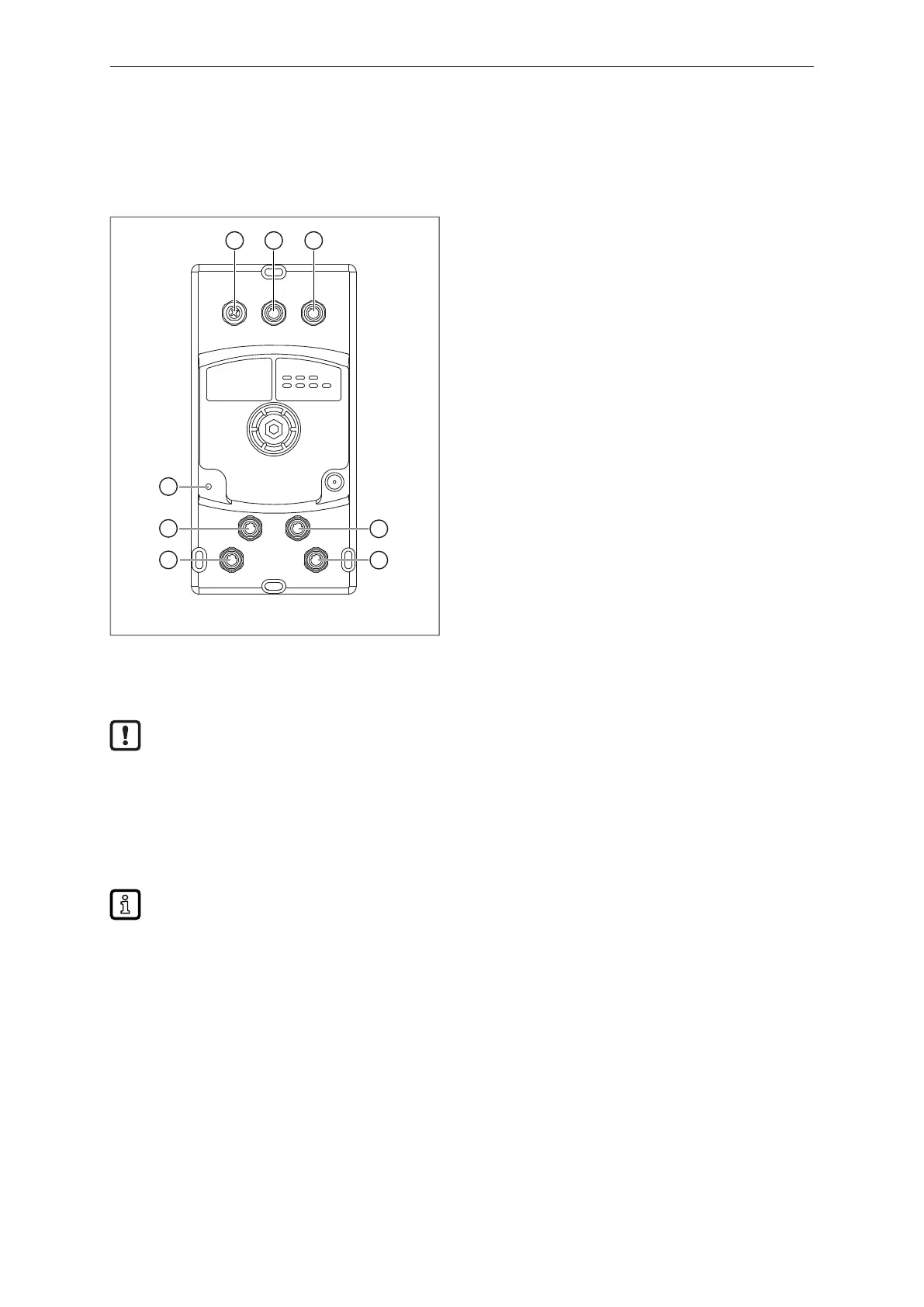

6.1 Overview
2 3
4
5
6
7
8
1
1: Voltage supply
2: USB port USB0
3: USB port USB1
4: Ethernet port eth0
5: Ethernet port eth1
6: Ethernet port eth3
7: Ethernet port eth2
8: FE connection
6.2 General wiring information
The unit must be connected by a qualified electrician.
u Observe the national and international regulations for the installation of electrical equipment.
By means of basic insulation according to EN61010-1, the circuits are isolated from each other and
from device surfaces that could be touched (secondary circuit with max. 32 V DC, supplied from mains
circuit up to 300 V overvoltage category II).
The external wiring has to be carried out in a way that ensures the required separation from other
circuits.
The supply is connected to the FE connection of the device via EMC interference suppression
capacitors and in parallel with high impedance.
The Ethernet circuits are connected to the FE connection of the device via EMC interference
suppression capacitors.
6.2.1 General notes on wiring
The threaded connections in the device correspond to the M12 standard. To ensure compliance with
the specified protection rating, only cables that comply with this standard may be used. In the case of
self-assembled cables, the system manufacturer is responsible for the protection rating.
u Use connectors with gold-plated contacts.
u During installation, place the connectors vertically so that the coupling nut will not damage the
thread.
u Observe the coding of the connectors during installation.
