Part 1 - Introduction

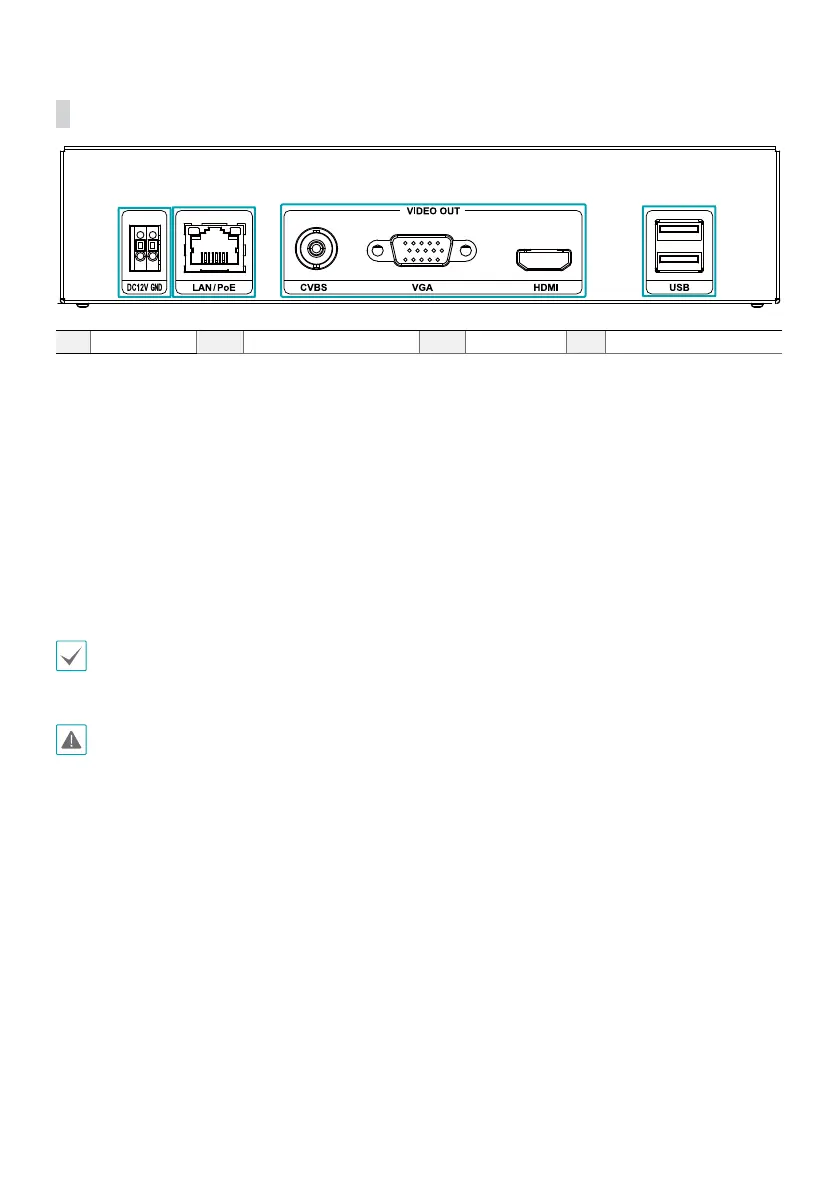

Rear Panel
1 2
3 4
1
DC12V In
2
Network + PoE Power In
3
Video Out
4
USB (2 Ports)
1
DC12V In
Connect the two wires of the power adapter to these ports. Be careful not to cross the DC12V and ground (GND) wires. Booting
will commence once connected to a power supply.
2 Network + PoE Power In
Connect a Cat5e cable with an RJ-45 jack. The video decoder is capable of connecting to networks via an Ethernet connector
and also reveives power from the NVR that is capable of PoE function and LAN cable from Switch Hub.
3
Video Out
Connect video output ports (CVBS, VGA, HDMI). coaxial cables from the video sources.
4 USB (2 Ports)
Connect the two USB ports.
• The network connector is not designed to be connected directly with cable or wire intended for outdoor use.
• Press down on the button and insert the cable into the opening when you connect the DC12V power connectors. Release
the button and then pull on the cable slightly to ensure it is held securely in place. To disconnect the cable, press down on
the button again and pull the cable out.
• Ground the power port’s ground terminal before use.
• Organize the power cable so that it will not cause people to trip over or become damaged from chairs, cabinets, desks,
and other objects in the vicinity. Do not run the power cable underneath a rug or carpet.
• Do not connect multiple devices to a single power outlet.
• Do not connect any device other than a mouse and USB ash memory to USB ports.
