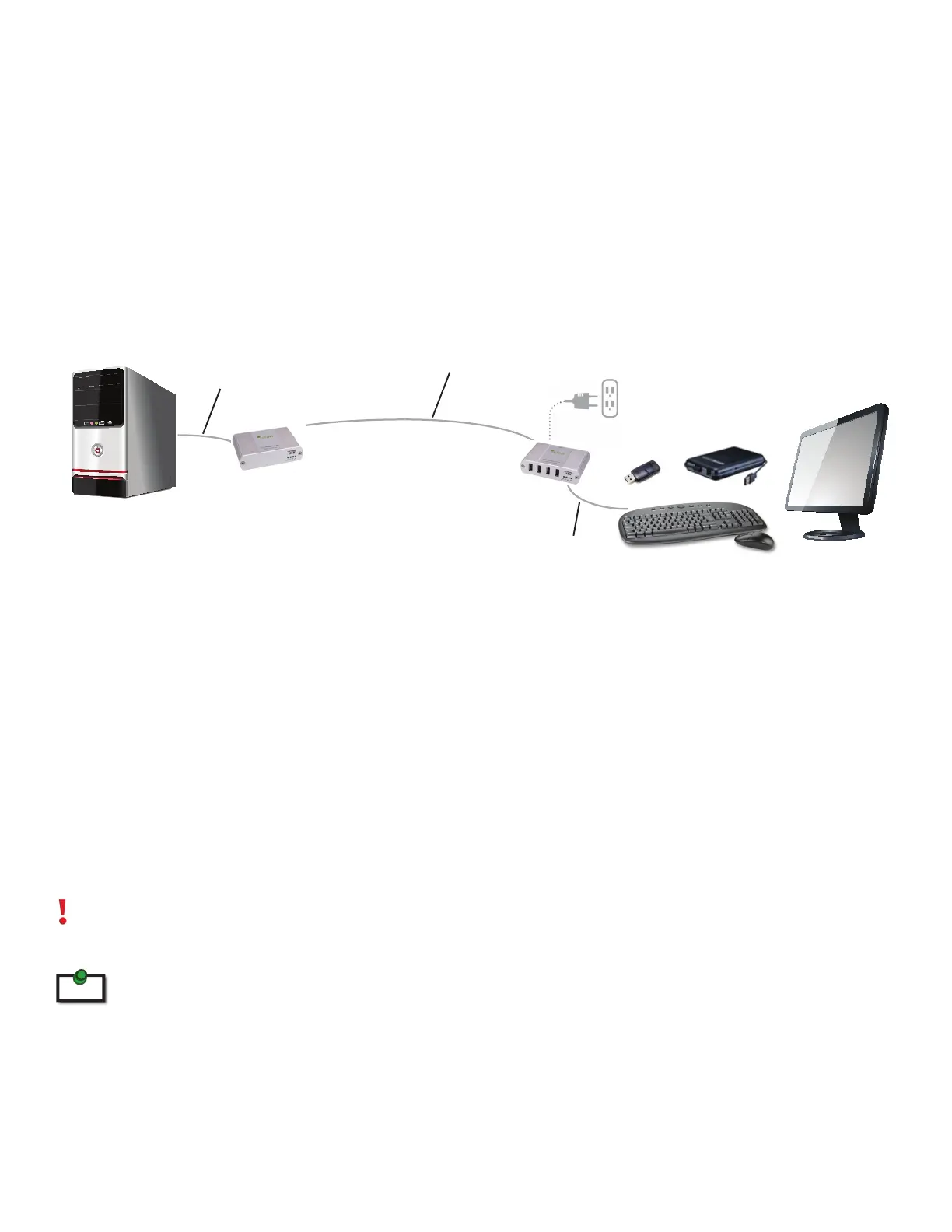

Host Computer

USB Devices

Up to 100m between extenders over CAT 5e/6/7

LEX

REX

Installing the Ranger 2304GE-LAN System as Direct Connect

Requirements

To complete the installation, you will also require the following items that are not included with this system:

• USBcompatiblecomputer(hostcomputer)withaUSBcompliantoperatingsystem

• USBcompatibledevice(s)

• CAT5e/6/7UnshieldedTwistedPair(UTP) cable with two RJ45 connectors (if using surface cabling),

or, CAT 5e/6/7cabling with two information outlets and two CAT 5e/6/7patch cords with RJ45

connectors (if using premise cabling)

Preparing Your Site

Before you can install the Ranger 2304GE-LAN, you will need to prepare your site:

1. Place the computer where desired and set it up.

2. Ensure to locate the USB device(s) within 100m cable-length of the computer. If not, adjust the

locationofthedevicesand/orcomputeraccordingly.

3. If you are using surface cabling, install the CAT 5e/6/7cabling as desired and terminate it with the

appropriate RJ45 ends.

4. If you are using premise cabling, (in-building network infrastructure), ensure your CAT 5e/6/7cabling

does not exceed 100m and that it meets CAT 5e/6/7specication.

Cable installation is important, particularly if high throughput applications are used. When installing, ensure the cable is

installed away from or isolated from potential sources of interference such as electrical wiring, ﬂuorescent lighting, etc.

When terminating cables, ensure the matching RJ45 connector is used for the cable type. For example, if CAT 6 cable is

used, then CAT 6 compatible RJ45 connectors must be used. If this care is not taken, the beneﬁts of higher grade

cabling may not be realized.

note

CAT5e/6/7LinkCable

USB cable

USB cable or device

connectors
