Installation Guide

Installing the Ranger 2304GE-LAN System on a Local Area Network

Requirements

To complete the installation, you will also require the following items that are not included with the product:

• USBcompatiblecomputer(hostcomputer)withaUSBcompliantoperatingsystem

• USBcompatibledevice(s)

• TwoCAT5e/6/7patchcables

• PreconguredLocalAreaNetwork

Preparing your Network

Your network must be properly conﬁgured in order for full USB 2.0 throughput to be realized and for

maximum stability and reliability of your devices. Consult with your network administrator prior to

installation. Using the Ranger 2304GE-LAN over a network requires:

• TheLEXandREXunitstobeonthesamesubnet

• RJ45informationoutletstobenearthecomputerandUSBdevicestobeconnectedtothenetwork 

switch(es)

• Pre-installedandconguredLocalAreaNetwork

USB 2.0 is capable of consuming up to 480Mbps. The minimum requirement for using the Ranger 2304-LAN is a Gigabit

(1000Base-T) network. The performance of the USB network extension will be limited to the slowest link between the LEX

and REX.

Some networks may be conﬁgured to block devices with unfamiliar MAC addresses. If this is the case, you will need to provide

your network administrator the MAC addresses of the LEX and REX units. These can be found on the label on the bottom

of each unit.

Some networks may be conﬁgured to block devices that consume a consistently high level of bandwidth.

The Ranger 2304GE-LAN may exhibit this behaviour when high bandwidth devices are connected. Consult with your

network administrator to resolve this.

Units will be pre-paired with each other if they were sold together in the same box. If they are not paired, follow the

instructions provided in the section for pairing a LEX and REX.

Increasing the number of switches between the LEX and REX units may reduce the available bandwidth and as a result

prevent some devices from functioning properly.

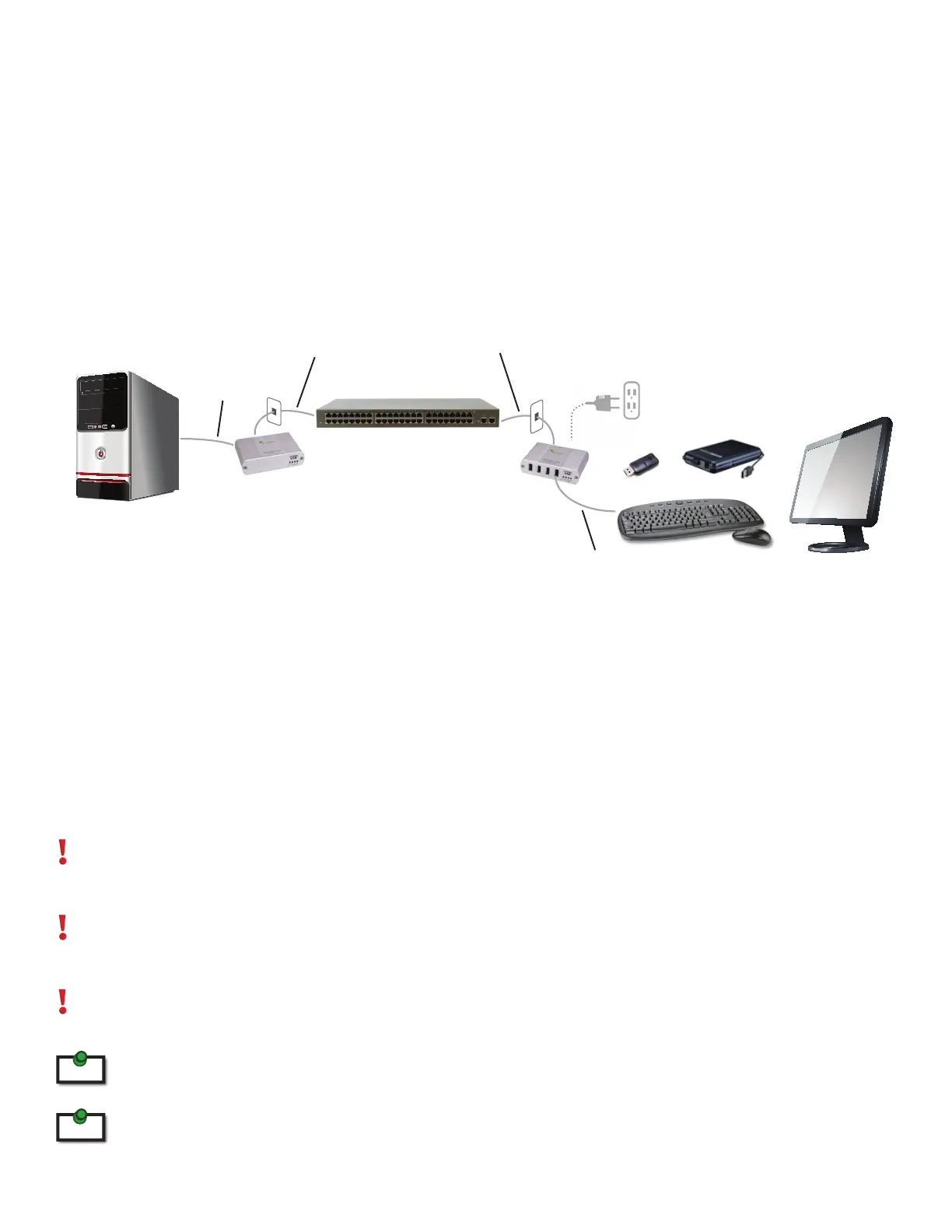

Computer

USB Devices

LEX

REX

Ethernet Switch(es)

Up to 100m between extender and switch

and between switches over CAT 5e/6/7

note

USB cable

USB cable or device

connectors

CAT5e/6/7Cable CAT5e/6/7Cable
