OPTION 2: USB Extender Direct Surface Mounting (using your own hardware)

The bottom of the Ranger 2304GE-LAN enclosures features four pre-drilled holes for optional surface

mounting.

Distance between the enclosure mounting holes:

42.0mm x 77. 0mm

1. Mark the center point of each of the four holes on your mounting surface either by directly measuring or

using a print out of the stencil below.

2. Hardware recommendation: M3.0 locking washers and M3.0 screws (4 of each per extender) noting

screw length will depend upon thickness of mounting surface.

3. Drillthrougheachofthefour-holemarkingsonthemountingsurfaceusinga4.7625mm(3/16”)drillbit.

4. Align the bottom enclosure holes to the newly drilled out holes on the mounting surface.

5. Place a locking washer on each of the four screws and using a screwdriver, fasten the extender into place.

To ensure the stencil below prints to scale be sure to set the page scaling setting to “none”.

42.0mm (1.6535'')

4.8mm (3/16'')

(4 Places)

77.0mm (3.0315'')

mounting hole

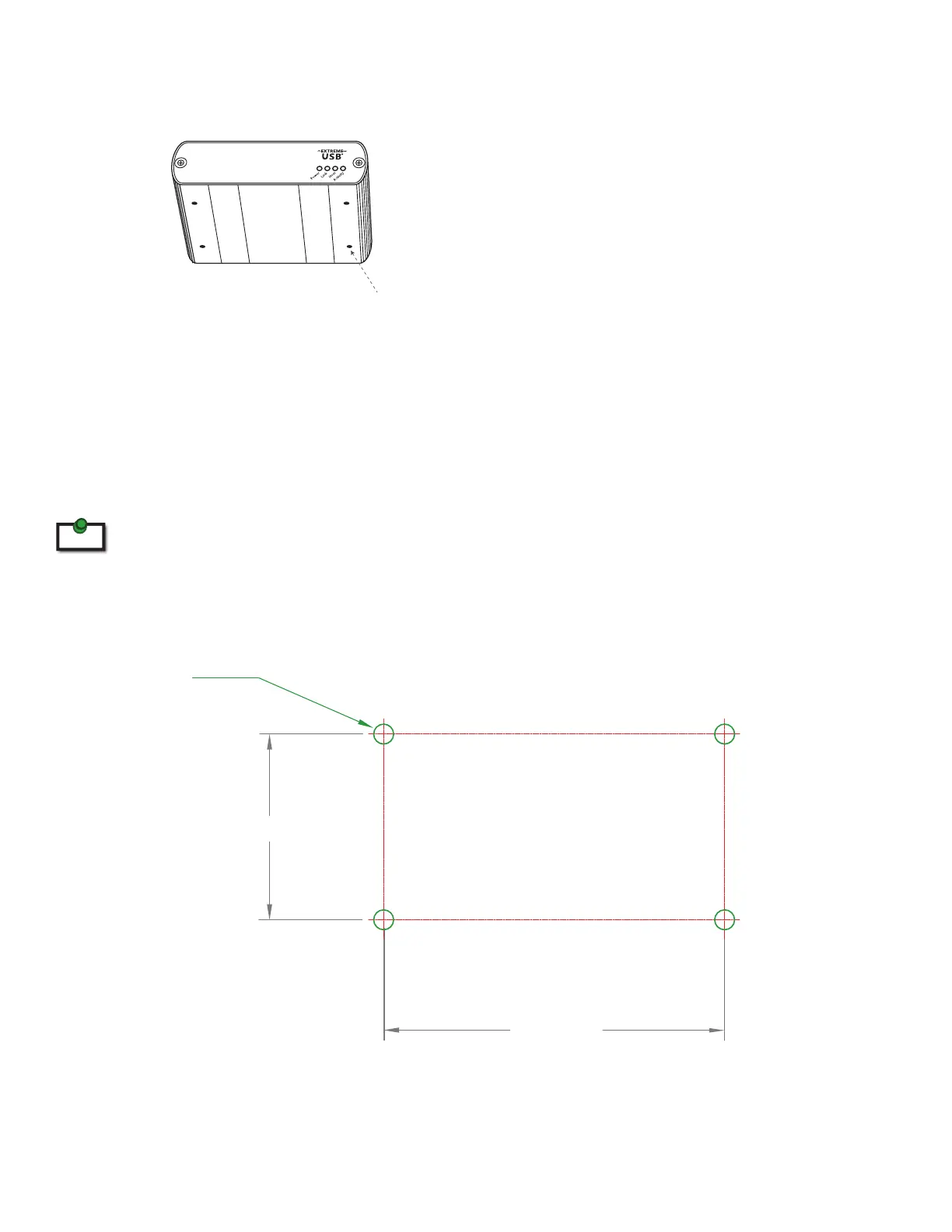

Direct Surface Mounting Measurement Stencil
