USB Extender Mounting Options

The bottom of the Ranger 2304GE-LAN enclosures features four convenient pre-drilled holes for optional

mounting. Based on your requirements, choose from two available mounting options:

1. USB Extender Mounting Kit (Purchased separately) Order Part #10-00406 USB Mounting Kit - Silver

2. USB Extender Direct Surface Mounting (Using your own hardware, stencil provided on page 13)

OPTION 1: USB Extender Mounting Kit - each kit includes:

• 2 mounting brackets

• 4 (M3.0) locking washers

• 4 (M3.0 x 5mm) Phillips pan head screws

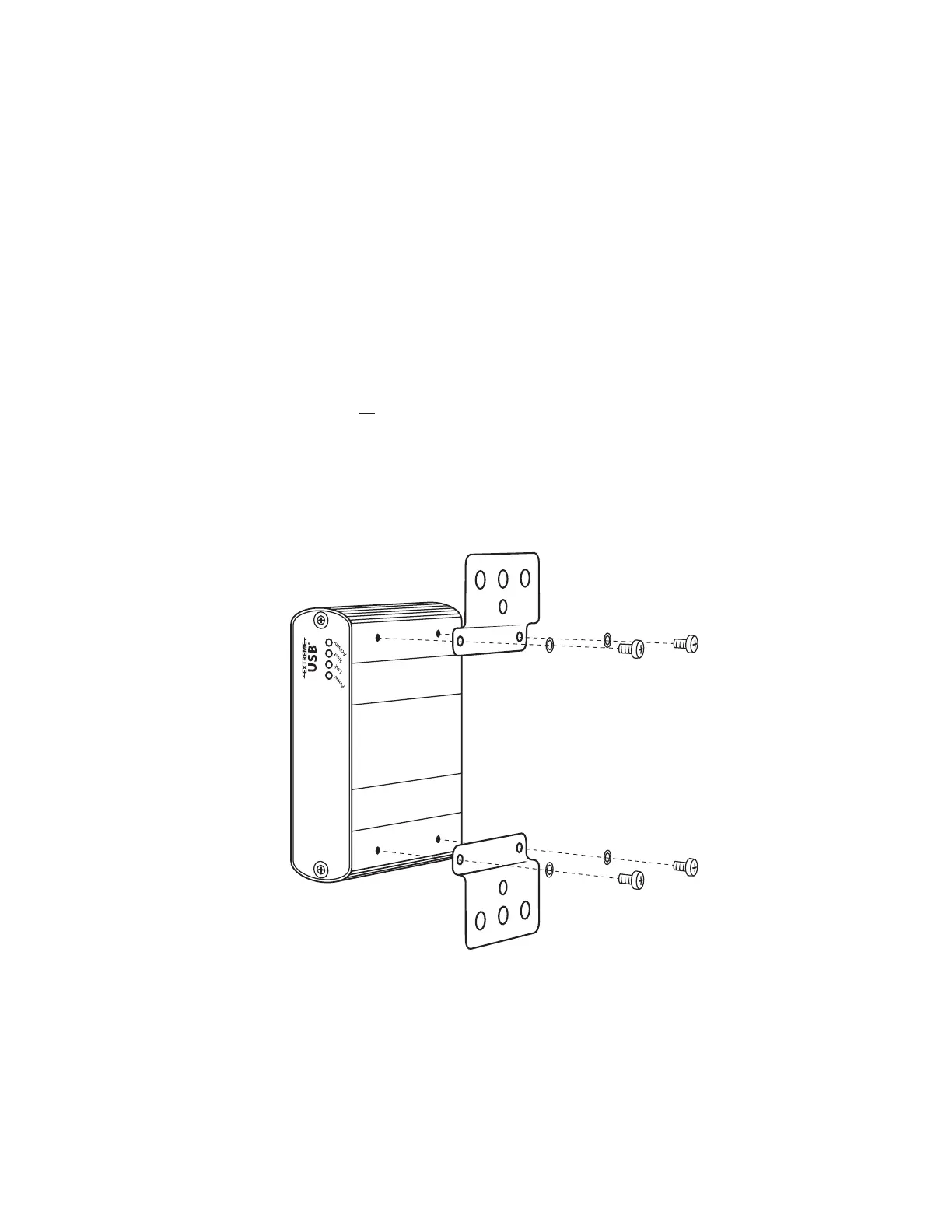

• Mounting bracket installation guide (see diagram below)

1 kit required to mount per LEX or REX unit

Using a Phillips screwdriver, in the order as illustrated below, fasten and secure the provided screws, locking

washers and brackets into place.

Once the bracket mounting is secured onto the extender, it is ready for mounting onto a surface. Please note

you will need to provide your own screws to secure the extender using the available slots on each bracket.
