5
Status
Host CHost BHost A Host D
21 3 4 Reset/
Test
DEVICE
24V 2.71A
DEVICE
34 2 1
RS232
Network
Control
TX RX
1 2 3 4 5 6 7 8 9 10 11
12
13
14
15
16
17
18

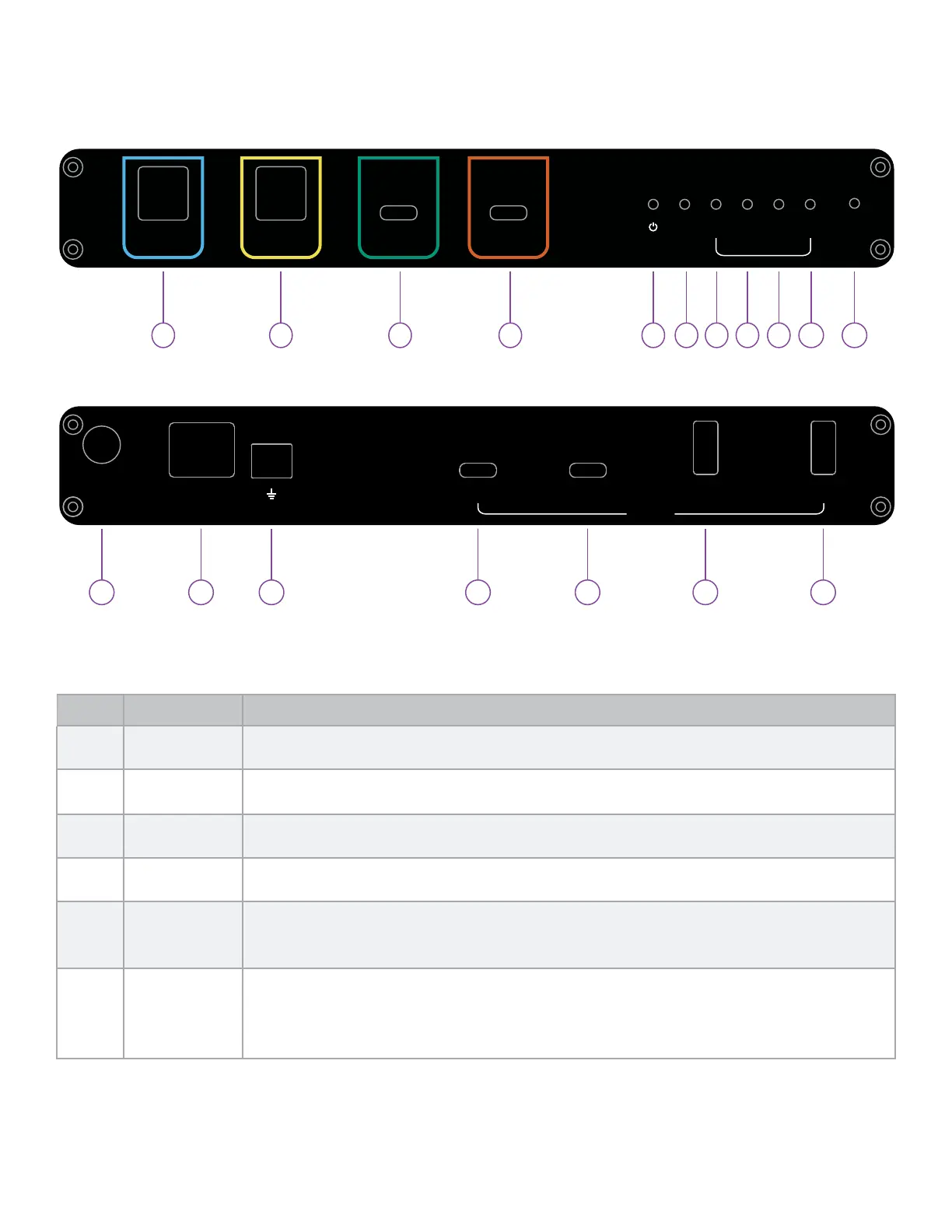

Polaris 7044 Unit
ITEM TYPE DESCRIPTION
1 Host “A” Port Upstream USB-B port (3.1 5Gbps) for a host connection
2 Host “B” Port Upstream USB-B port (3.1 5Gbps) for a host connection
3 Host “C” Port Upstream USB-C port (3.1 5Gbps) for a host connection. Supports USB data only.
4 Host “D” Port Upstream USB-C port (3.1 5Gbps) for a host connection. Supports USB data only.
5 Power LED
LED is SOLID ON when DC is supplied to the Polaris unit.
LED is OFF when there is no power applied to the Polaris unit.
6 Status LED
LED is SOLID ON when the system is functioning normally.
LED BLINKS when the system is updating rmware.
LED is OFF when the system is initially booting.
Front Faceplate
Back Faceplate
