BEFORE USING THE CONTROLLER
1-18
Installation and connections

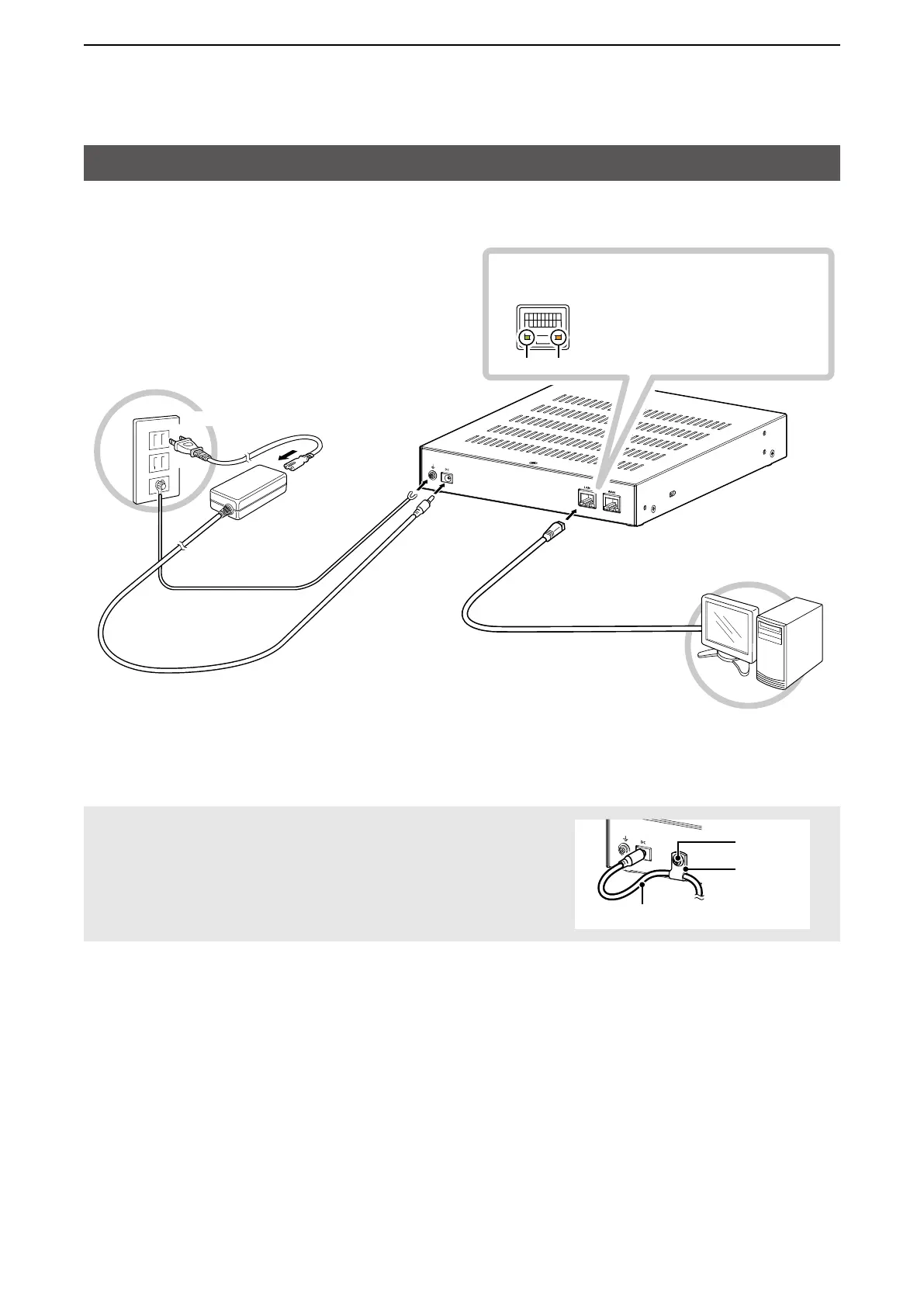

■ Connecting the cables and the PC
NOTE: Use the supplied clamp to x the power cable to the ground
terminal.
Clamp
Power adapter cable
Set screw
Lights: Connected
Blinks: Communicating
q
Green: 1000BASE-T/2.5GBASE-T
w
Orange:
100BASE-TX
q
w
3 Turn ON the PC
4 Check the [LAN] port indications
1 Connect cables
2 Connect to the power supply
PC for setting up the Controller
(IP address example : 192.168.0.100)
IP1100CV
(IP address example : 192.168.0.1)
L Use a LAN cable of category 5e or higher
To a
ground
terminal
BC-207S or BC-236
AC adapter
( Purchase Separately)
To an AC outlet
To the DC jack
To the [LAN] port
To the ground terminal
