BASIC MANUAL
1
2
3
1
2
3
ENGLISH
PANEL DESCRIPTION
2
1[PTT] SWITCH
Hold down to transmit, release to receive.
2[CH/SET] KEY
z On the Standby screen, push to enter
or exit the Channel Select mode.
z On the Standby screen, hold down for
1 second to enter the Set mode.
z In the Set mode, push to move
between the setting items, and hold
down for 1 second to return to the
Standby screen.
3[
] KEY
Hold down for 1 second to turn the
transceiver ON or OFF.
4SPEAKER MICROPHONE JACK
To connect an optional speaker
microphone or headset.
5USB CONNECTOR (Type-C) [USB]
For only charging the battery.
L The USB connector does not support
USB Power Delivery (USB PD) or a
data communication.
6[MONI] KEY
While holding down this key, the Monitor
function is ON on the Standby screen.
7[
] KEY
On the Standby screen, hold down for
1 second to turn the Lock function ON or
OFF.
8[▲]/[▼] KEY
z On the Standby screen, push to
adjust the audio level.
z In the Set mode and the Channel
Select mode, push to select a value.

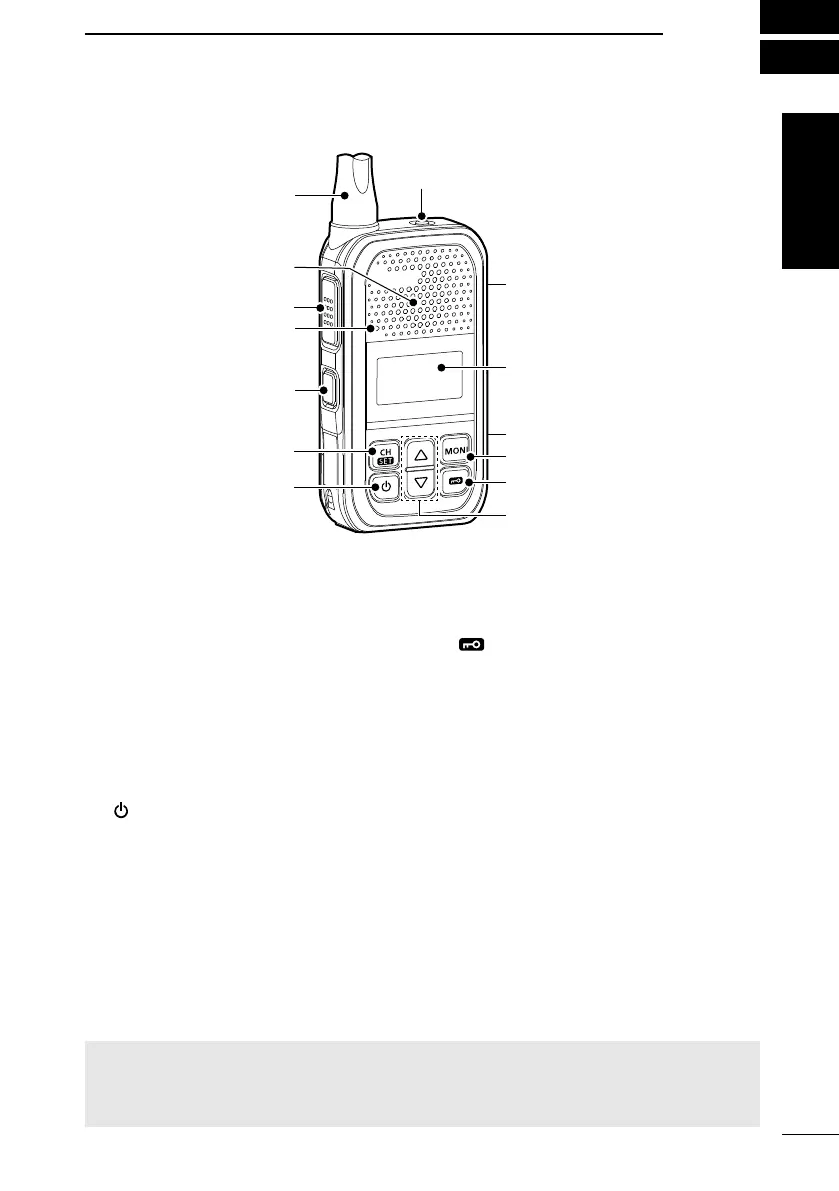

■ Front, top and side panels
1
2
3
4
5
6
7
8
Antenna
Microphone
Speaker
[Side]*
[Top]*
Function display
* The [Side] and [Top] key functions are dealer assignable.
CAUTION: DO NOT use the transceiver without the connector covers or the optional
equipment attached.
The transceiver meets IP54 requirements for dust-tight and splash resistance only when
the connector covers or the optional HM-183LS is attached.
