2
1

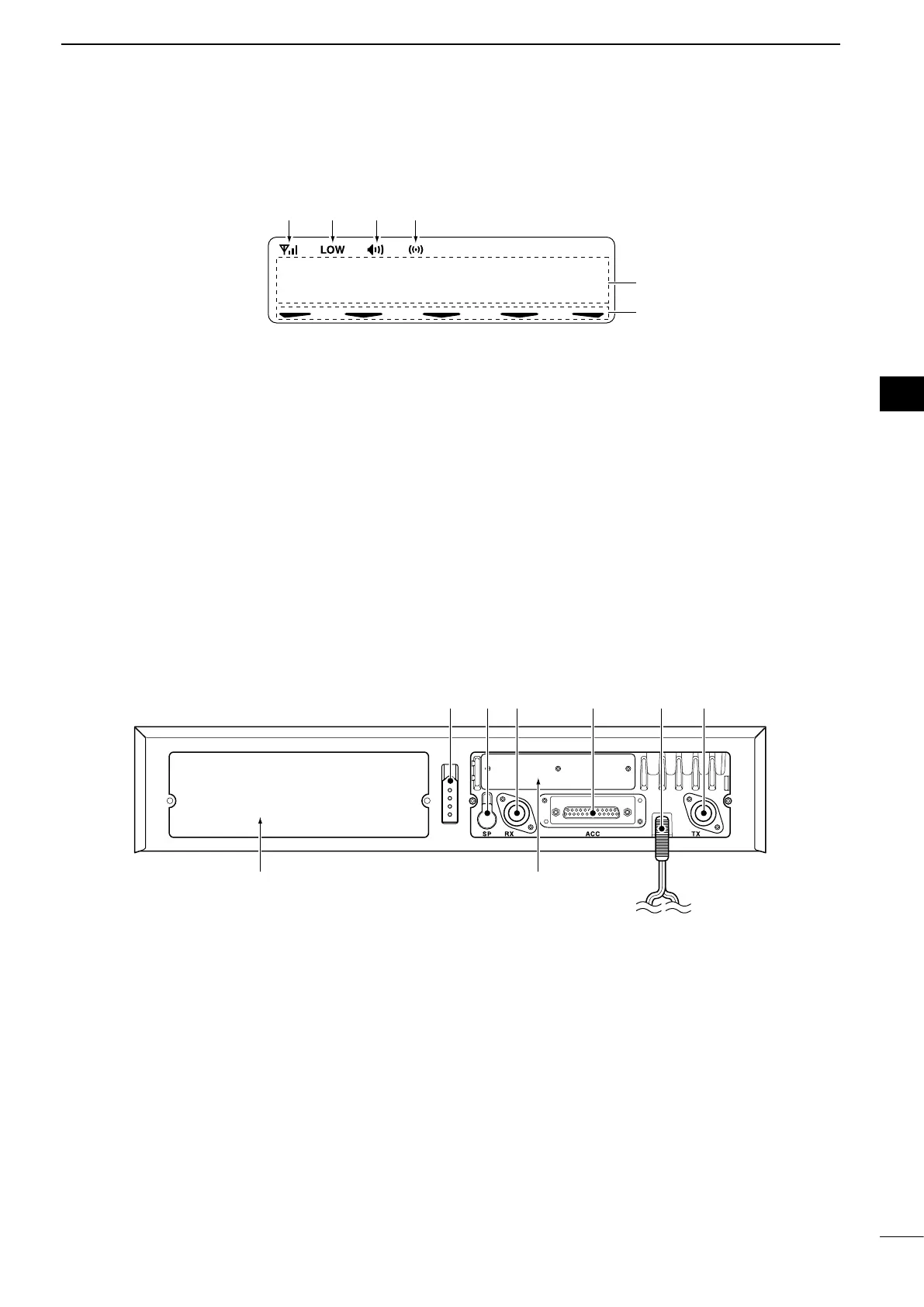

PANEL DESCRIPTION
1 DC POWER CONNECTOR (For cooling fans)
Connects to an external DC power source using
the supplied CAB-1149 DC power cable to activate
the cooling fans.
See page 5 for connection details.
2
EXTERNAL SPEAKER CONNECTOR [SP]
Connects to the optional speaker SP-35.
3 RECEIVE ANTENNA CONNECTOR [RX]
Connects to a receive antenna (impedance: 50 ø).
4 ACCESSORY CONNECTOR [ACC]
Connects to the accessory connector.
See page 3 for the accessory connector
information.
5 DC POWER RECEPTACLE
Connects to an external DC power source using
the supplied OPC-1784 DC power cable.
See page 5 for connection details.
6 TRANSMIT ANTENNA CONNECTOR [TX]
Connects to a transmit antenna (impedance: 50 ø).
-8 CYN
The optional channel extension module
can be installed here.
Ask your dealer for details.
The optional trunking/network controller
can be installed here.
Ask your dealer for details.
1 SIGNAL STRENGTH INDICATOR
Indicates the relative signal strength level.
2 LOW POWER INDICATOR
Displayed when low output power is selected.
3 AUDIBLE INDICATOR
Displayed when the channel is in the ‘audible’ (un-
mute) mode.
4 GNSS INDICATOR
Displayed when a UC-FR5300 is installed, and the
GNSS (Global Navigation Satellite System) posi-
tioning is established.
This indicator can be deactivated using program-
ing software.
5 ALPHANUMERIC DISPLAY
Shows a variety of text and code information.
6 KEY ICON
Displayed when the key assigned as [Lock] or [Tx
Disable] and it is active.
■
Rear panel
D
Function display
ICOM Inc.
-8C
N
Y
The repeater rear panel may be dierent, depending on the repeater’s version.
