4
1
PANEL DESCRIPTION

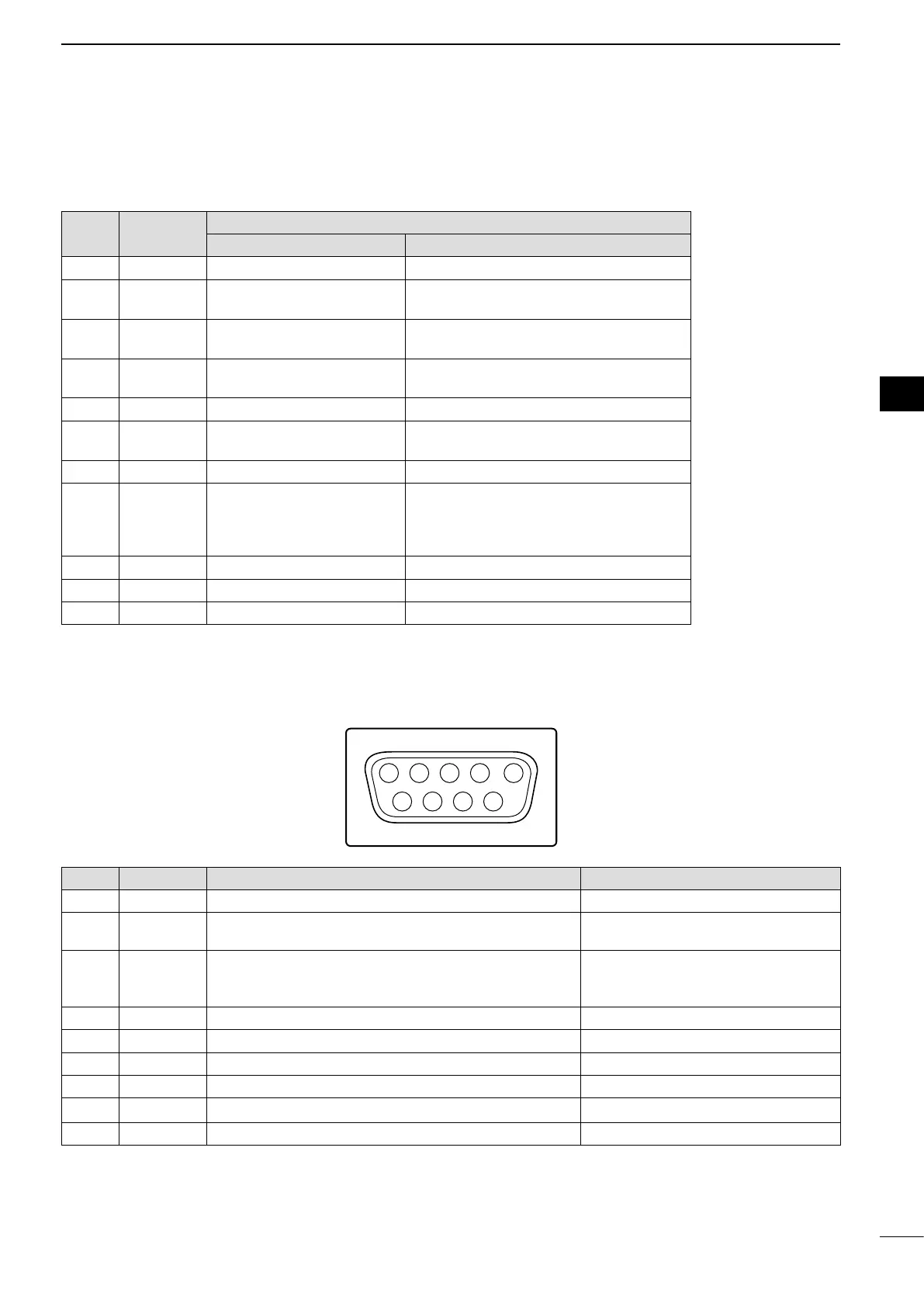

D I/O connector (for the PA unit)
yo
qt
Pin No. Pin Name Description Specification
1 PA TEMP Output terminal for the PA unit temperature data. —
2 FAN ALM Output terminal for the cooling fan data. H: Normal,
L: Fan stops or decreases to half speed.
3 50 W/100 W Input terminal for the output power selection. H: 50 W, L: 100 W
•Dependingontherepeater’sversion,
the output power is restricted to 50 W.
4 RF ALM Output terminal for the low output power level. H: Normal, L: Low output power
5 PTT Input terminal. When grounded, transmit. H: Standby, L: Transmit
6 NC No connection —
7 GND Connects to the [GND] terminal of the PA unit. —
8 NC No connection —
9 NC No connection —
The list shows the default functions that are assigned to the pins 10, 12, 15, 16, 17, 18, 19, 21, 23, 24 and 25.
Pin No. Pin Name
Default
IC-FR5100/IC-FR6100 IC-FR5100H/IC-FR6100H
10 EXT. D/A Null Null
12 EXT. A/D
Null UR-PA5000 Temperature Input*
(Connects to Pin 1 of the I/O connector.)
15 EXT. I/O 15
Null External Alert1 Input*
(Connects to Pin 2 of the I/O connector.)
16 EXT. I/O 16
P0 Monitor Output External Alert2 Input*
(Connects to Pin 4 of the I/O connector.)
17 EXT. I/O 17 Busy Output Busy Output
18 EXT. I/O 18
Null TX Output*
(Connects to Pin 5 of the I/O connector.)
19 EXT. I/O 19 EPTT Input EPTT Input
21 EXT. I/O 21
Analog Audible Output 50W/100W Output*
(Connects to Pin 3 of the I/O connector.)
•Dependingontherepeater’sversion,the
output power is restricted to 50 W.
23 EXT. I/O 23 Mic Mute Output Mic Mute Output
24 EXT. I/O 24 Null Alert Output
25 EXT. I/O 25 Mic Hanger Output Mic Hanger Output
* When the PA unit is used, these functions must be assigned to the specified pin. Ask your dealer for details.
