PANEL DESCRIPTION
q
EXTERNAL SPEAKER JACK [SP]
Connects to the optional external speaker.
w IF SIGNAL OUT CONNECTOR
Connects to a dPMR control unit to output an IF sig-
nal.
e RECEIVE ANTENNA CONNECTOR [RX]
Connects to a 50 ˘ antenna to receive.
r ACCESSORY CONNECTOR [ACC]
See page 3 for accessory connector information.
(For IC-FR5100/IC-FR6100)
Connects to an external equipment.
(For IC-FR5100H/IC-FR6100H)
Connects to the [I/O] connector on the PA unit and/
or to an external equipment.
t DC POWER RECEPTACLE
Connect the supplied DC power cable from this
connector to an external 13.2 V DC power source.
y TRANSMIT ANTENNA CONNECTOR [TX]
(For IC-FR5100/IC-FR6100)
Connects to a 50 ˘ antenna to transmit.
(For IC-FR5100H/IC-FR6100H)
Connects to the [TX] connector on the PA unit
through the supplied coaxial cable (OPC-2243) to
output the repeater’s transmit signal to the PA unit.
u GROUND TERMINAL [GND]
Connect this terminal to ground to prevent electrical
shocks, TVI, BCI and other problems.
i ANTENNA CONNECTOR [ANT]
Connects to a 50 ˘ antenna to transmit.
o DC POWER RECEPTACLE
Connects the supplied DC power cable from this
connector to an external 13.2 V DC power source.
!0 INPUT/OUTPUT CONNECTOR [I/O]
Connects to the [ACC] connector on the repeater
unit through the optional OPC-2202 or OPC-2203.
•Seepage6fortherepeaterunitconnectiondetails.
!1 RF IN CONNECTOR [TX]
Connects to the [TX] connector on the repeater unit
through the supplied coaxial cable to input the re-
peater’s transmit signal.
er yt iu!1!0o
Repeater unit* PA unit
q
w
q SIGNAL STRENGTH INDICATOR
Indicates the relative signal strength level.
w LOW POWER INDICATOR
Appears when low output power is selected.
e AUDIBLE INDICATOR
Appears when the channel is in the ‘audible’ (un-
mute) mode.
r COMPANDER INDICATOR
Appears when the compander function is activated.
t SCRAMBLER/ENCRYPTION INDICATOR
Appears when the voice scrambler/encryption func-
tion is activated.
y ALPHANUMERIC DISPLAY
Shows a variety of text and code information.

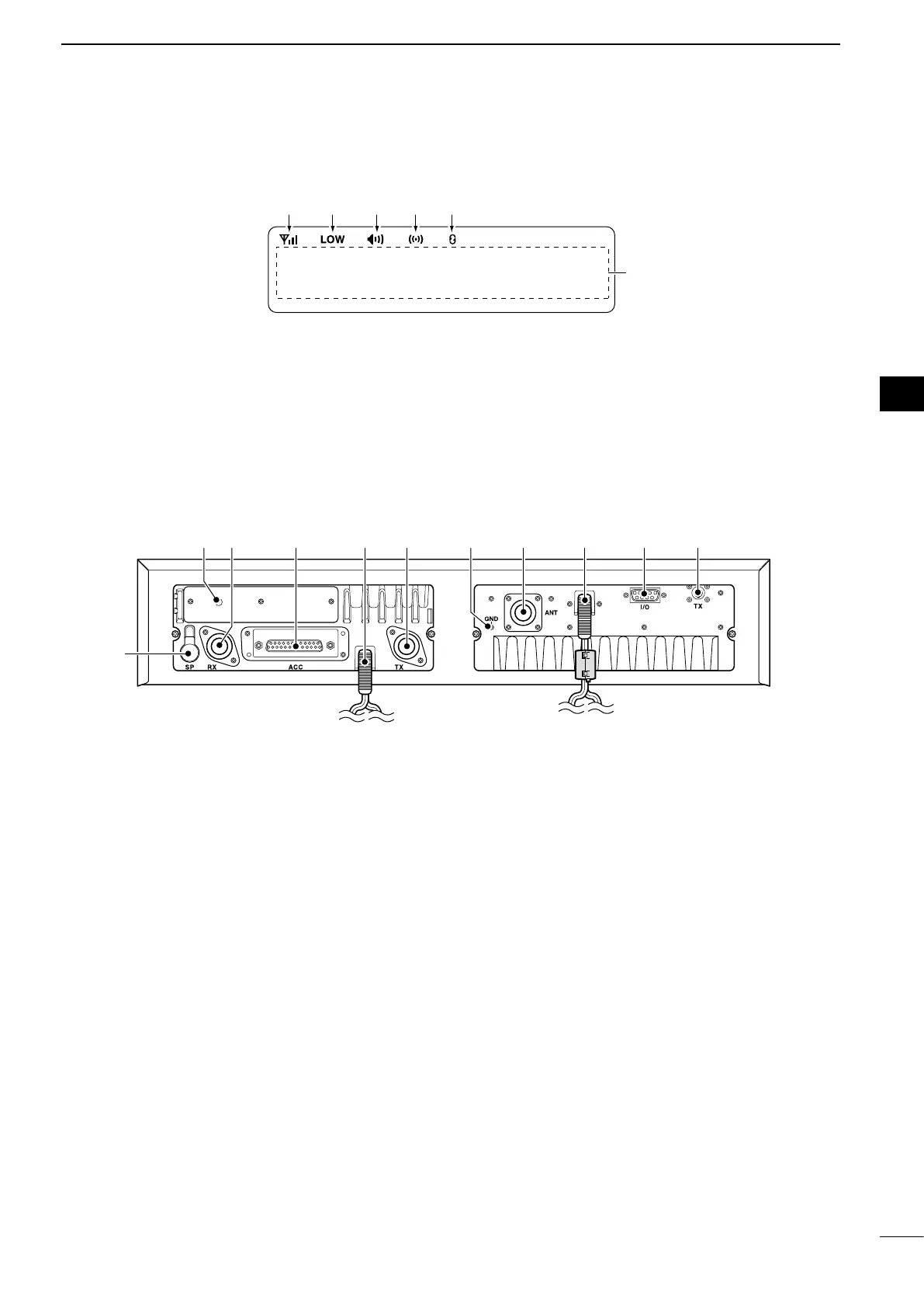

■ Rear panel
D Function display
ICOM Inc.
qwert
y
* For the IC-FR5100/IC-FR6100, the repeater unit is installed in the right side (back view).
