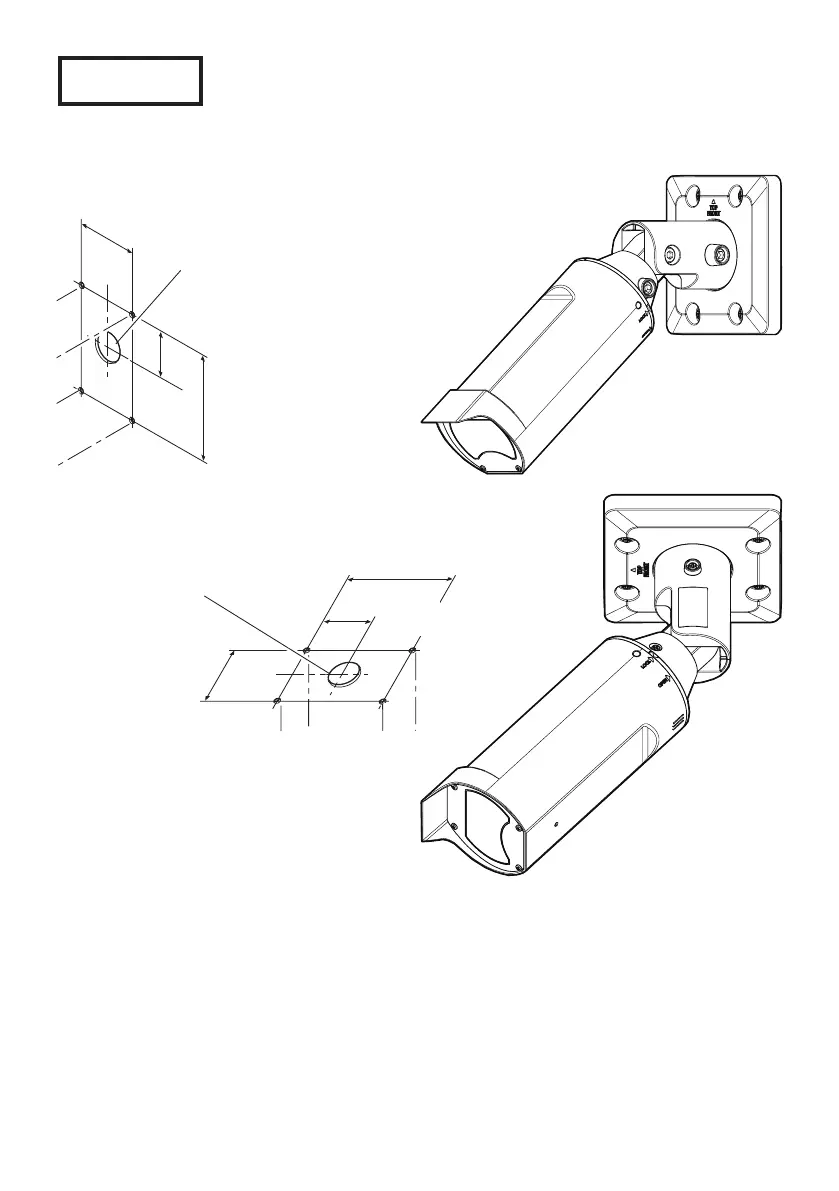

Step 2
Directly mount the camera onto the installation surface.
<When mounting on a wall>
<When mounting on a ceiling>
83.5 mm {3-9/32 inches}
40 mm {1-21/32 inches}
46 mm {1-13/16 inches}
⇧
The “up” direction
of the camera
Cable access hole
ø30 mm {ø1-3/16 inches}
⇦
Direction in which the camera is pointed
Cable access hole
ø30 mm {ø1-3/16 inches}
46 mm
{1-13/16 inches}
40 mm
83.5 mm
{3-9/32 inches}
{1-21/32 inches}
Note:
• When running the cable using the side cable access hole of the camera, the cable access hole
indicated in the upper figure is not required.
• To install this product outdoors, be sure to waterproof screw holes and cable access hole.
■
When using the gangbox/ junction box on the installation surface
Mount the gangbox/ junction box on the installation surface.
Note:
• When gangbox/ junction box or the like are used, it is recommended that 2 pieces be used side by side.
(Cable connection will become easy by fixing the camera on one side and wiring on the other side.)
14
