3 Before the journey
34 Exsis I/T - 01/23-1 - EHG-0027-02EN
1 Clamping eyelet
2 Clamping rail

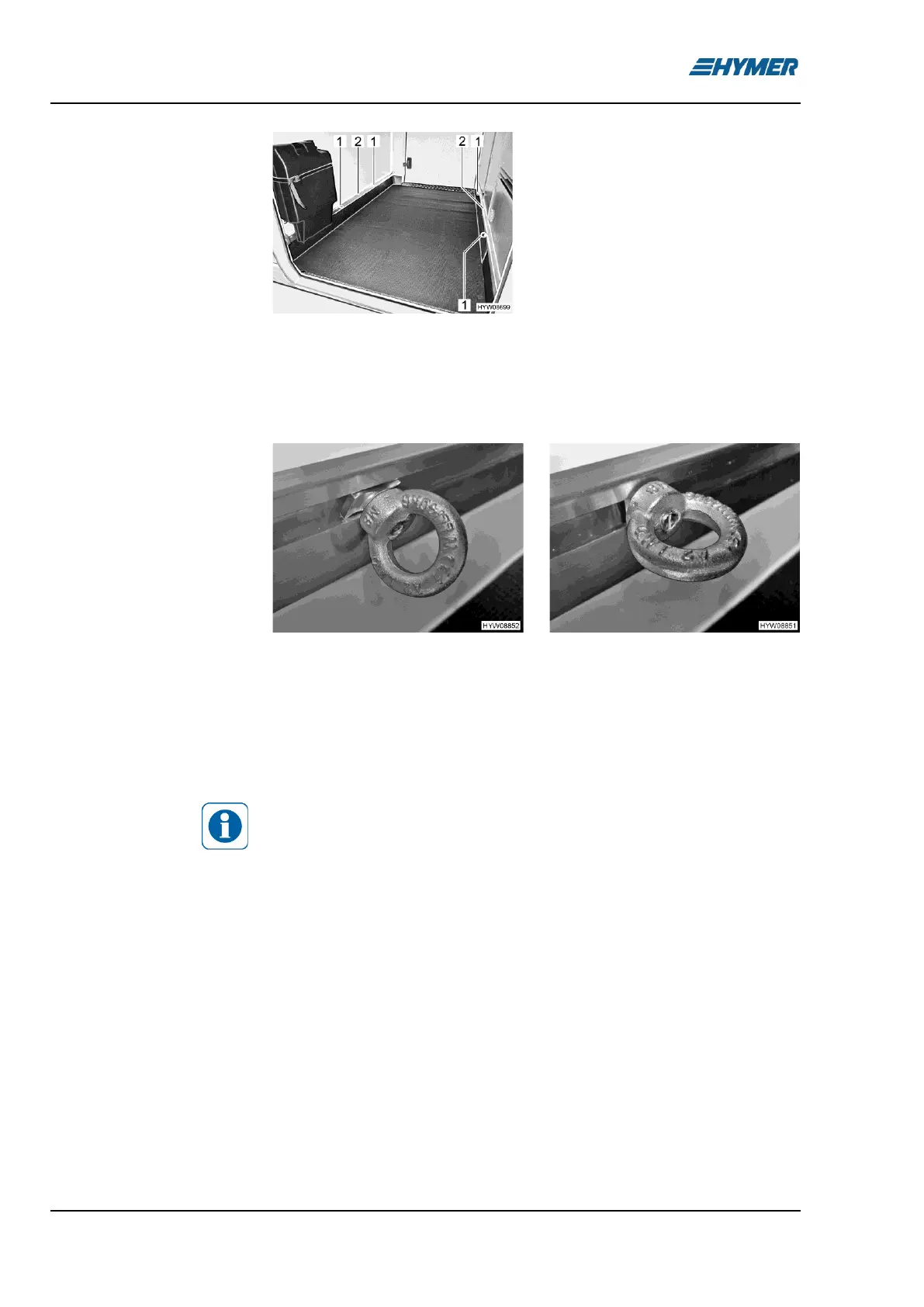

Fig. 5 Clamping eyelets (rear gar-
age)
◼ Turn the clamping eyelet (Fig. 5,1) half a turn in an anticlockwise direc-
tion. Now, the clamping eyelet (Fig. 6) may be moved.
Fig. 6 Clamping eyelet (movable)
Fig. 7 Clamping eyelet (clamped)
◼ Push the clamping eyelet into the clamping rail (Fig. 5,2) to the desired
position.
◼ Give clamping eyelet one half turn in a clockwise direction. The clamp-
ing eyelet (Fig. 7) sits tightly in the clamping rail again.
◼ Check that the clamping eyelet is tight.
Please observe the maximum permissible load of the rear garage or rear
storage compartment at all times. The specified maximum permissible
load of the rear garage or rear storage compartment may be influenced
by the selection of further optional equipment, such as trailer couplings
or frame extensions. However, the technically permissible maximum
laden mass and the technically permissible maximum laden mass on the
axle must not be exceeded under any circumstances. Especially when
stowing or attaching heavy accessories or heavily laden accessories
(such as motorcycle carriers or bicycle carriers) at the rear, the mass on
the axle must be checked and complied with. For this reason, please
note that the maximum load may not be fully utilized if this would result
in the exceedance of the technically permissible maximum laden mass
or technically permissible maximum laden mass on the axle.
Further information on correct loading can be found in the sections
"Technically permissible maximum laden mass" (page 22), "Technically
permissible maximum laden mass on the axle (mass on the axle)"
(page 28) and "Load securing and load distribution" (page 26).
Moving the clamping
eyelets:
