Electrical system 8
Exsis I/T - 01/23-1 - EHG-0027-02EN 119
8.6 Transformer/rectifier (EBL 30)
Do not cover the ventilation slots. Danger of overheating!
Depending on the model, not all slots for the fuses are occupied.
Further information can be obtained in the manufacturer's instruction
manual.

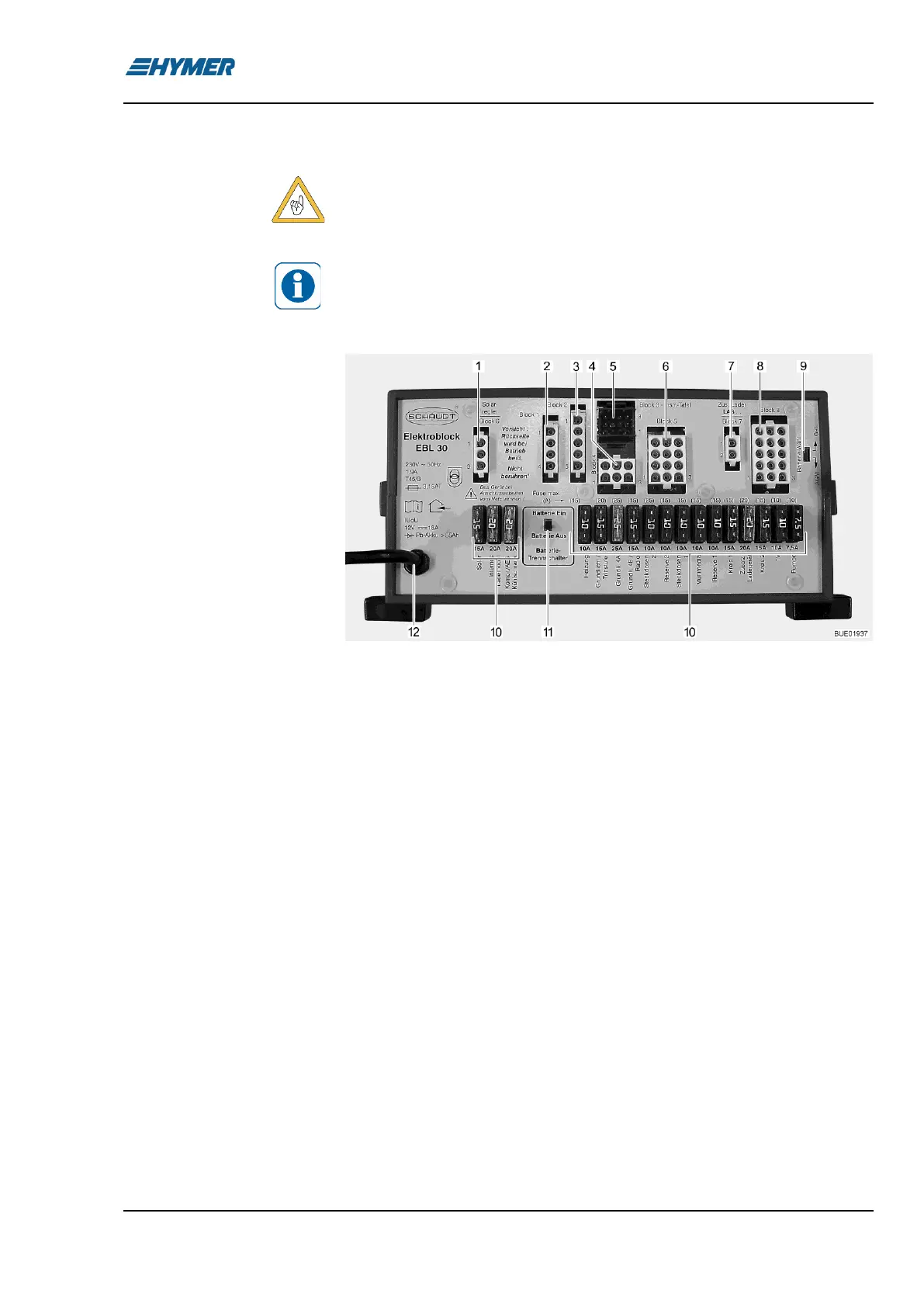

Fig. 104 Transformer/rectifier (EBL 30)
1 Block 6: Solar charge regulator (if fitted)
2 Block 1: Refrigerator
3 Block 2: Refrigerator power supply D+, battery sensor/control lines
4 Block 4: Heating, basic light (lighting in the entrance area), entrance step
5 Block 3: Panel
6 Block 5: Spare 2, sockets, basic light
7 Block 7: Auxiliary charging unit
8 Block 8: Appliances, TV, water pump, spare 1, multimedia, sockets
9 Battery selector switch (Gel/AGM)
10 Fuses
11 Battery cut-off switch ("Batterie Ein/Aus" (battery On/Off))
12 Mains connection 230 V~
The transformer/rectifier has the following functions:
⚫ The transformer/rectifier charges the living area battery. The trans-
former/rectifier charges the starter battery with a float charge only.
⚫ The transformer/rectifier monitors the voltage in the living area battery.
⚫ The transformer/rectifier distributes the current to the 12 V circuits and
secures them. Devices with a maximum of 10 A can be connected to the
sockets.
⚫ The transformer/rectifier provides connections for a solar charge regula-
tor, an auxiliary charging unit, as well as other control and monitoring
functions.
⚫ When the vehicle engine is turned off, the transformer/rectifier separates
the starter battery electrically from the living area battery. This prevents
the 12 V living area appliances from discharging the starter battery.
⚫ The battery cut-off switch in the transformer/rectifier separates all the
appliances from the living area battery.
Functions
