6 Living
82 B-MC I/T - 01/23-1 - EHG-0016-03EN
6.4.3 Hinged roof window with rotary window supports
When opening the hinged roof window, ensure that there are no torsio-
nal forces. Open and close the hinged roof window evenly.

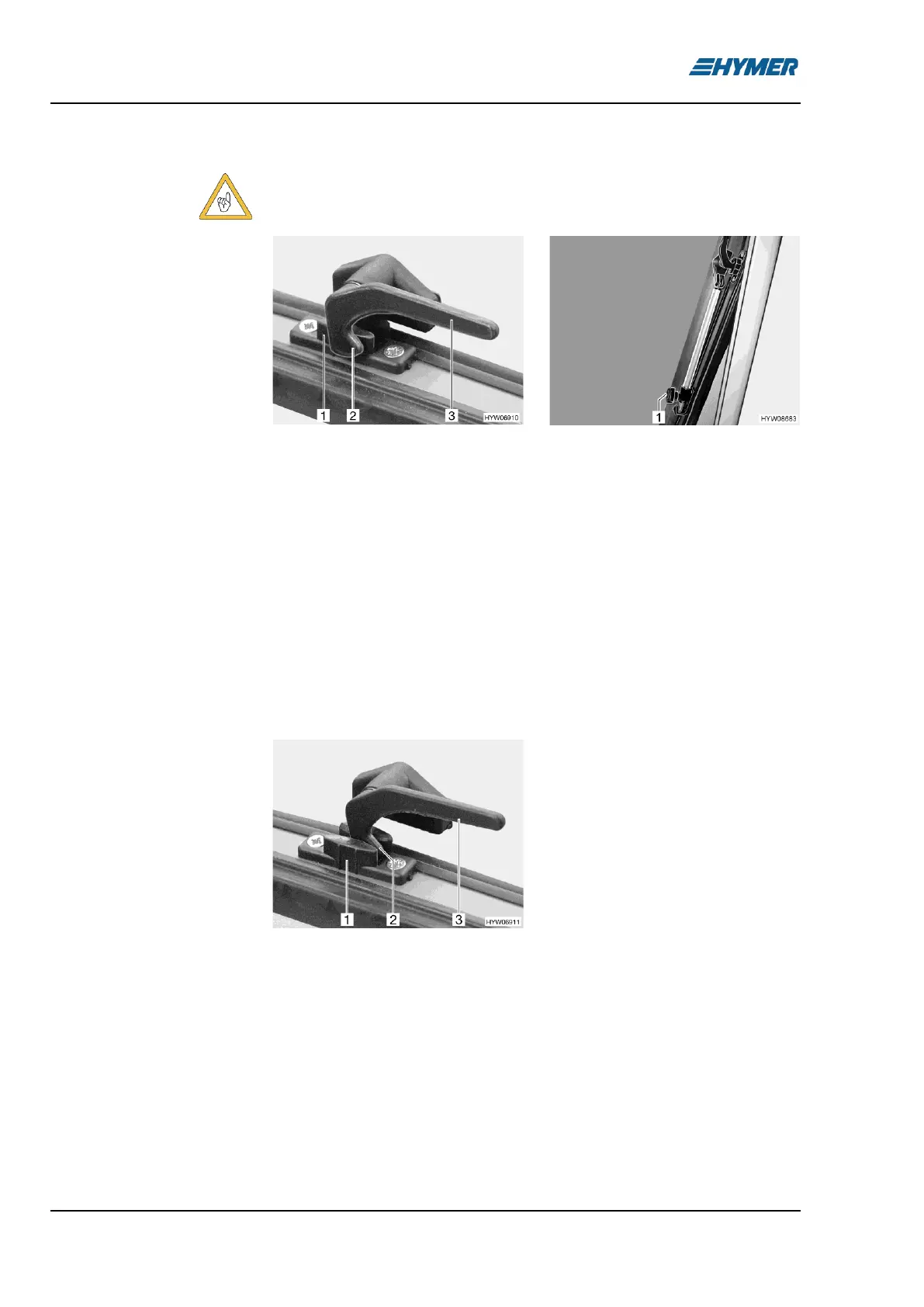

Fig. 66 Catch lever ("closed" posi-
tion)
Fig. 67 Window support (hinged roof
window)
◼ Turn all catch levers (Fig. 66,3) a quarter turn towards the centre of the
window.
◼ Open the hinged roof window to the desired position and use knurled
knob (Fig. 67,1) to lock it in position.
The hinged roof window remains locked in the desired position.
◼ Turn knurled knob (Fig. 67,1) until the latch is released.
◼ Close the hinged roof window.
◼ Turn all catch levers (Fig. 66,3) a quarter turn towards the window
frame. The locking catch (Fig. 66,2) is located on the inside of the
window catch (Fig. 66,1).
Fig. 68 Catch lever ("continuous
ventilation" position)
The hinged roof window can be brought to 2 different positions using the
catch levers:
⚫ "Continuous ventilation" (Fig. 68)
⚫ "Firmly closed" (Fig. 66)
Opening:
Closing:
Continuous ventilation
