7 Gas system
118 B-MC I/T - 01/23-1 - EHG-0016-03EN
7.3 Gas isolator taps
1 Cooker
2 Hot water
3 Refrigerator
4 Oven/grill
5 Heater
6 Hot water/heater

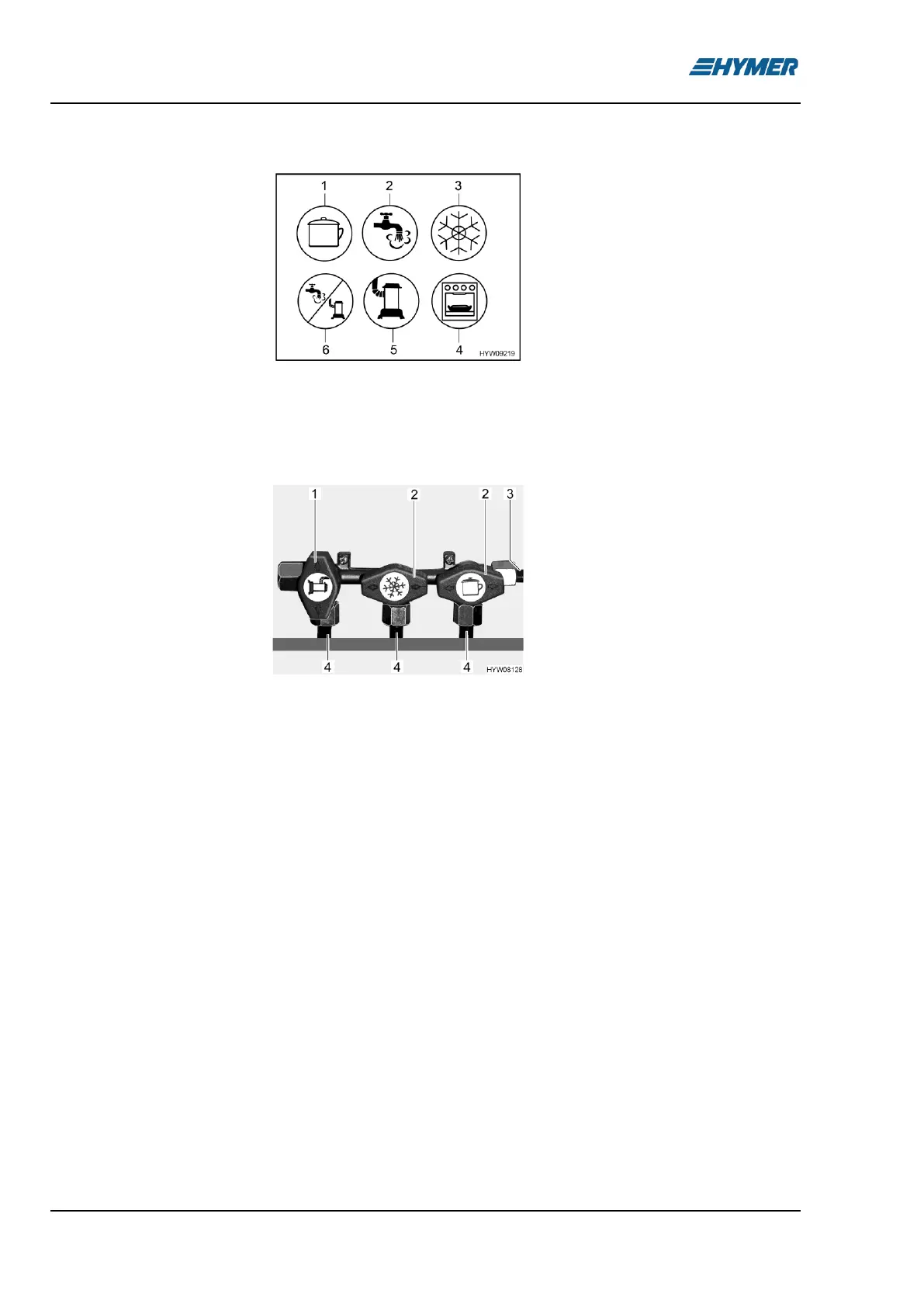

Fig. 126 Possible symbols for the
gas isolator taps
A gas isolator tap (Fig. 126) for every gas device is built into the vehicle. The
gas isolator taps can be found under the cooker.
1 Gas isolator tap open
2 Gas isolator tap closed
3 Gas pipe
4 Pipe to the gas device
Fig. 127 Gas isolator taps position
(example)
◼ Position the gas isolator tap of the corresponding gas device parallel
(Fig. 127,1) to the pipe (Fig. 127,4) leading to the gas device.
◼ Position the gas isolator tap of the corresponding gas device transverse
(Fig. 127,2) to the pipe (Fig. 127,4) leading to the gas device.
Opening:
Closing:
