6 Living
112 B-MC I/T - 01/23-1 - EHG-0016-03EN
6.13.8 Conversion of L-seating group and individual seat into ad-
ditional bed
Do not place a load onto the lowered table top until the cushions have
been laid correctly on the table top. Otherwise the table could be dama-
ged.
Together with the individual seat on the side and the shiftable lift-off table,
the L-seating group can be converted into an additional bed. Two additional
cushions are needed to create the lying surface. An additional board is also
required, which is equipped with a fold-out support foot and a support bra-
cket.

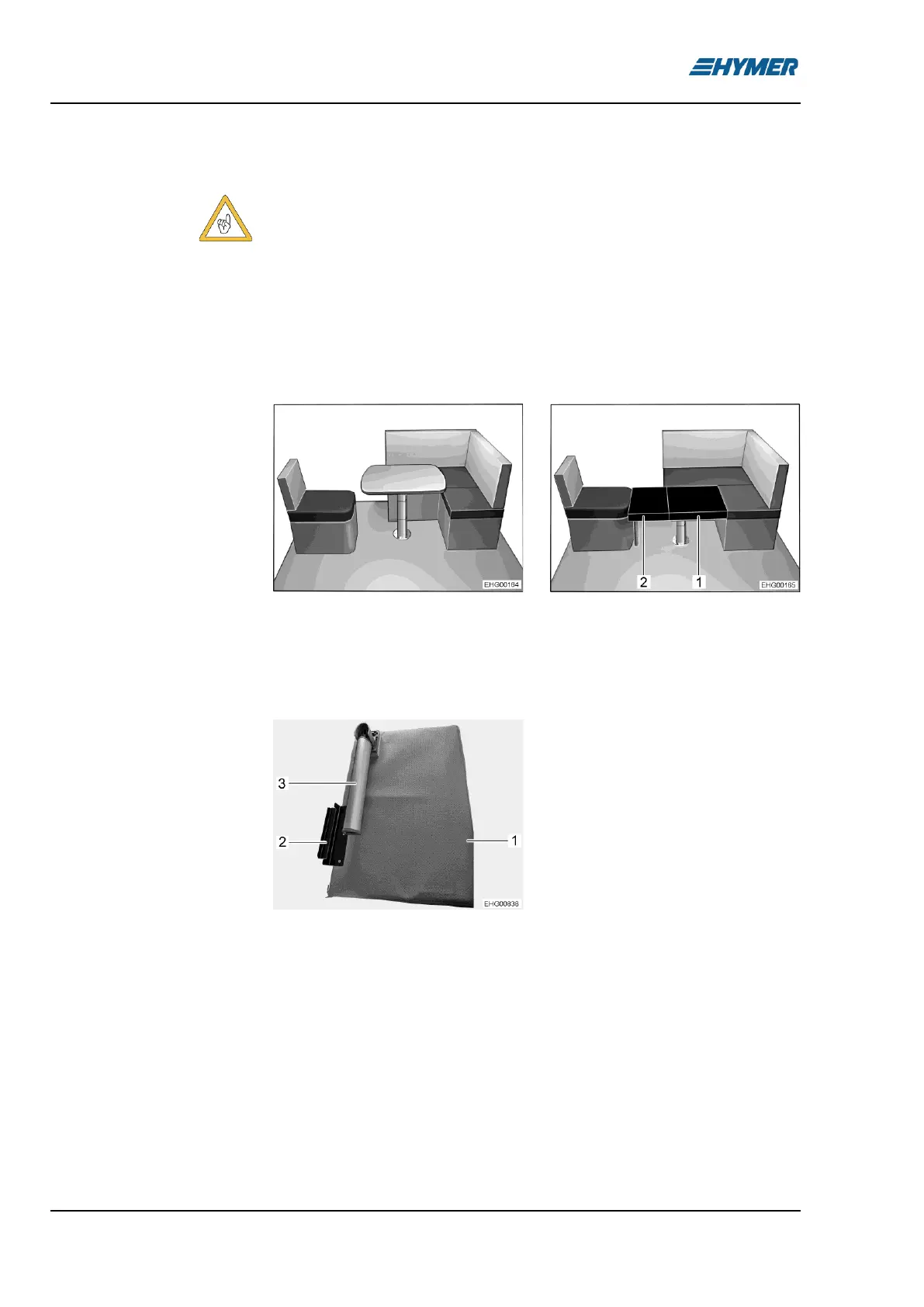

Fig. 120 Prior to conversion
Fig. 121 After conversion
◼ Shift shiftable lift-off table such that the table top can be lowered.
◼ Convert shiftable lift-off table into bed foundation (see section 6.10.1).
◼ Remove seat cushion from individual seat.
Fig. 122 Additional board
◼ Unfold the support foot (Fig. 122,3) on the additional board (Fig. 122,1).
◼ Attach the support bracket (Fig. 122,2) of the additional board to the in-
dividual seat and place the additional cushion (Fig. 121,2) on the table
top.
◼ Place the second additional cushion (Fig. 121,1) on the table top.
◼ Attach the seat cushion of the individual seat again.
Setting up the additional
bed:
