Living 6
B-MC I/T - 01/23-1 - EHG-0016-03EN 109

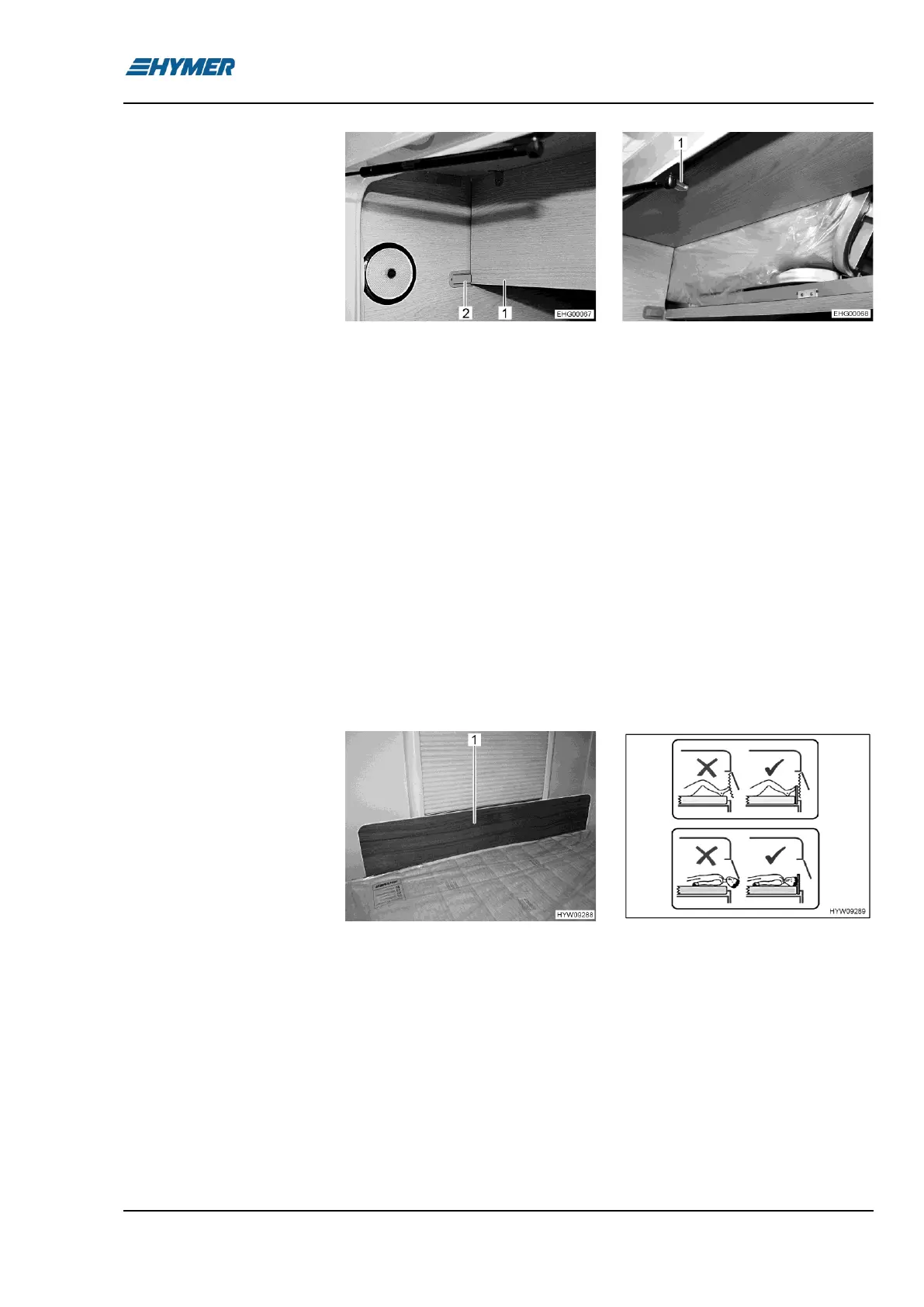

Fig. 110 Panel (closed)
Fig. 111 Panel (open)
◼ Press locking device (Fig. 110,2) and fold panel (Fig. 110,1) upwards.
◼ Secure panel with lever (Fig. 111,1).
◼ Press lever (Fig. 111,1) to the side and fold panel downwards.
◼ Secure panel with locking device (Fig. 110,2).
6.13.5 Protective panel / fall out protection
The scope of delivery of vehicles with rear single beds or rear transverse
beds, in which the bed is installed at window height, includes a plug-in pro-
tective panel.
The protective panel protects the blinds in the lying area from accidental da-
mage.
In addition, the protective panel serves as fall out protection in case the
window is open.
Fig. 112 Protective panel / fall out
protection
Fig. 113 Note on protective panel
◼ Plug in the protective panel (Fig. 112,1) in front of the window, between
mattress and window frame. The clamping effect of the mattress holds
the protective panel in its position in front of the window frame.
◼ When the bed is not used (or before setting off), stow the protective pa-
nel underneath the mattress.
Opening panel:
Closing panel:
Using the protective panel:
