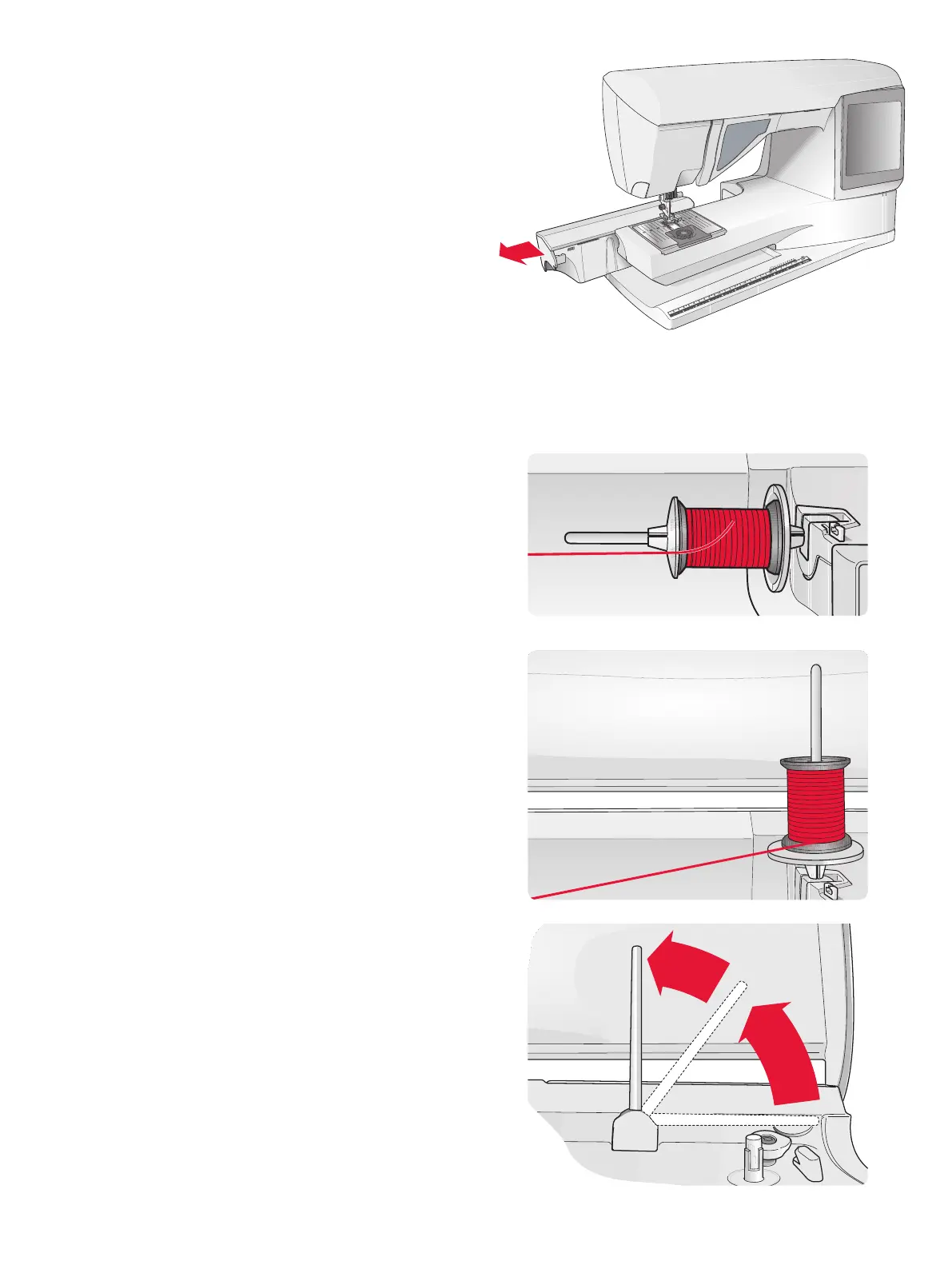

2:3Set up

FREE ARM

Slide the accessory tray to the left when you wish to remove

it and use the free arm. Use the free arm to facilitate sewing

trouser legs and sleeve hems. To replace the accessory tray, slide

it onto the machine until it ts in place.

SPOOL PINS

Your machine has two spool pins; a main spool pin and an

auxiliary spool pin. The spool pins are designed for all types of

thread. The main spool pin is adjustable and can be used both

in a horizontal position (the thread reels off the spool) and a

vertical position (the thread spool rotates). Use the horizontal

position for regular sewing threads and the vertical position for

specialty threads.

HORIZONTAL POSITION

Place a spool cap and the thread spool on the spool pin. Make

sure that the thread reels off the spool counter clockwise and

slide on a second spool cap.

Note: Not all thread spools are manufactured in the same way. If you

experience problems with the thread, turn it in the opposite way or use the

vertical position.

Use a spool cap slightly larger than the thread spool. For narrow

thread spools, use a smaller spool cap in front of the spool. For

large thread spools, use a larger spool cap in front of the spool.

The at side of the spool cap should be pressed rmly against

the spool. There should be no space between the spool cap and

the thread spool.

VERTICAL POSITION

Lift the spool pin up and all the way to the right. Lock the spool

pin in the vertical position by slightly pressing it down. Slide on

the large spool cap. For spools smaller than the medium size

spool cap or when using specialty threads, place a felt pad under

the thread spool to prevent the thread from reeling off too fast.

For larger spools, the felt pad is not needed.

Do not place a spool cap on top of the vertical spool pin as it

may prevent the spool from rotating.

Note: When the spool pin is used in the vertical position, the thread tension

might need to be adjusted manually.

AUXILIARY SPOOL PIN

The auxiliary spool pin is used when winding a bobbin from a

second spool of thread or for a second spool when sewing with

a twin needle.

Lift the auxiliary spool pin up and to the left. Slide on the large

spool cap. For spools smaller than the medium size spool cap,

place a felt pad under the thread spool to prevent the thread

from reeling off too fast. For larger spools, the felt pad shall not

be used.

Note: When sewing with two needle threads, deactivate deLuxe

™

Stitch

System button in Machine Settings.
