Ceiling Bracket DownrodTop Housing Hanging Fan Wiring Canopy CapBlades Wall Control
Wiring the Fan
Turn the blade assembly right side up and place it in one of the holes in the
packaging.
Align the top motor housing screw holes with the screw holes in the
motor. Secure the top motor housing to the motor with the previously
removed motor housing screws.

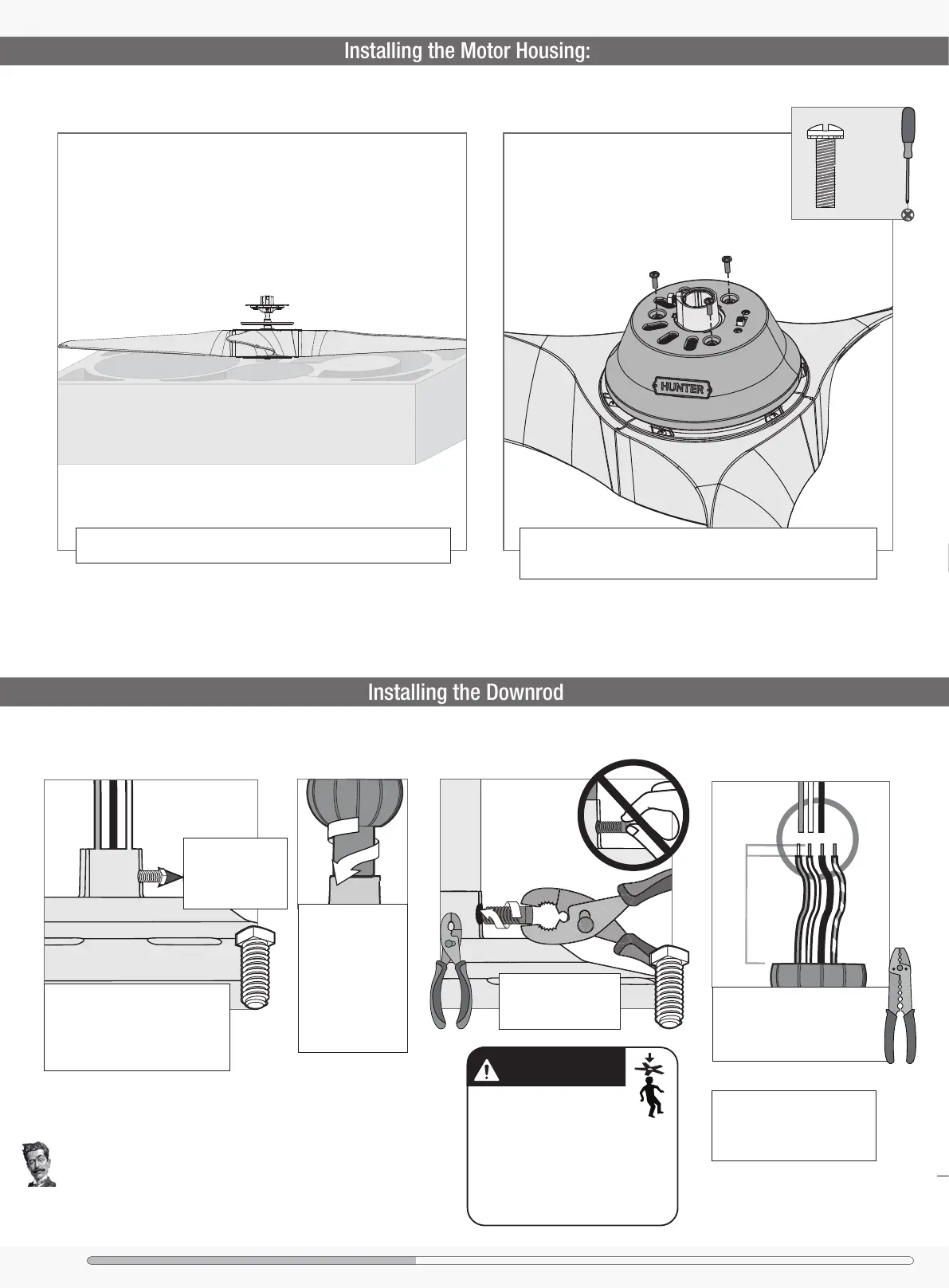

Installing the Motor Housing:
PB 1
1886
1886
DR-01 r071221
Installing the Downrod
Follow below if you are using the downrod that came pre-assembled in your box. Need to
install a longer or shorter downrod? Check out the guide at the end of this manual.
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
8”
3/8”
C
U
T
&
S
T
R
I
P
(not to scale)
Pass all wires
to one side of
horizontal bar in
downrod assembly.
Hand tighten the
downrod until it
stops (at least
4–5 complete
revolutions).
Trim the wires coming from
the fan so that 8-inches
remain coming from the top
of the downrod.
Tighten the setscrew
with pliers. DO NOT
HAND TIGHTEN.
Hunter Pro Tip:
The ground wire attached to
the downrod is approximately
8 inches.
WARNING
FAN FALL HAZARD
To prevent SERIOUS INJURY or DEATH:
• ALWAYS tighten setscrew with pliers.
• DO NOT
hand tighten setscrew.
• CHECK
the setscrew is tight using pliers
each time you change fan direction.
K
E
E
P
!
Back out the pre-installed setscrew
so that the setscrew’s threads
are still engaged while the shank
does not protrude and obstruct the
insertion of the downrod.
DO NOT
REMOVE
SETSCREW
COMPLETELY
3 of 3
Motor
Housing
Screws
