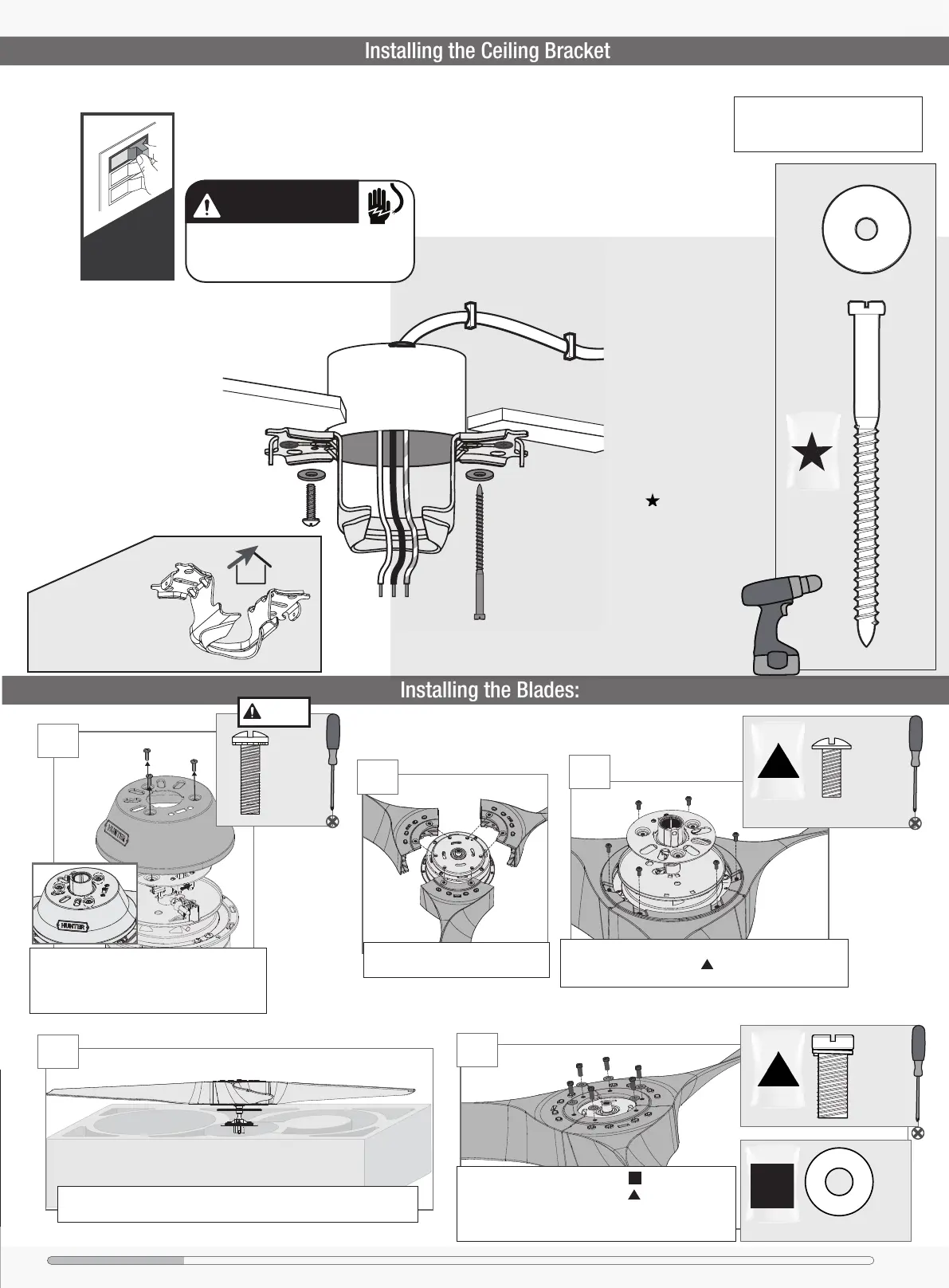

Check the outlet box:
Installing the Ceiling Bracket
Use wood screws and
washers (included) when
securing to support structure
with approved electrical
outlet box. Drill 9/64” pilot
holes in support structure
to aid in securing ceiling
bracket with hardware found
in the
hardware bag.
Use machine screws
(provided with outlet box)
and washers when securing
to existing ceiling fan-rated
outlet box. Make sure it is
securely installed and is
acceptable for fan support of
31.8 kg (70 lbs) or less.
Option 2:
Wood Screws
Option 1:
Machine Screws
OFF
Turn Power
Do this rst!
The machine screws are the ones
that came with your outlet box.
Hunter Pro Tip:
For angled ceilings,
point opening
toward peak.
ANGLED
MOUNTING TIP
bag
Wood Screw
Washer
x2
x2
You have two options for installation. Pick which one works best for your location. Remove any existing
bracket prior to installation. Only use the provided Hunter ceiling bracket that came in your fan’s box.
Ceiling Bracket DownrodTop Housing Hanging Fan Wiring Canopy CapBlades Wall Control
WARNING
To avoid possible electrical shock, before
installing your fan, disconnect the power by
turning off the circuit breakers to the outlet
box associated with the wall switch location.
Installing the Blades:
x6
bag
Blade Washer
Align all blades screw holes with the
screw holes of the motor.
Initially secure blades to motor with the assembly screws,
located in the hardware bag .
Turn the blade assembly upside down and place it in one of the holes in
the packaging.
Put the blade washers found in the hardware bag
onto the blade screws found in the hardware bag.
Then install the blade screws to secure each blade to
the fan.
6 of 6
Blade
Assembly
Screw
x6
Blade
Screw
bag
bag
2
STEP
1
STEP
4
STEP
3
STEP
5
STEP
Remove the three pre-installed screws from
the top housing. Save the screws. They will
be needed after the blade installation.
3 of 3
Motor
Housing
Screws
KEEP
