grid when an exception occurs, select a proper overcurrent protection device in
compliance with local power distribution regulations.
WARNING
Do not connect loads between the inverter and the AC switch.
The inverter is installed with an integrated monitoring unit for the residual
current. When the inverter detects that the residual current exceeds the permitted
value, it disconnects from the power grid quickly.
NO TICE
● If the external AC switch has residual current protection, its rated leakage
tripping current must be greater than or equal to 300 mA.
● If multiple inverters are connected to the master leakage protection device
through their AC switches, the rated leakage tripping current of the device
must be greater than or equal to the number of inverters x 300 mA.
● The AC switch cannot be a knife switch.
COM Port Pin Denitions
NO TICE
● When laying out signal cables, separate them from power cables and keep
them away from strong interference sources to avoid strong communication
interference.
● Ensure that the protection layer of a signal cable is inside the connector, that
excess core wires are cut
o from the protection layer, that the exposed core
wires are totally inserted into the cable hole, and that the cable is connected
securely.

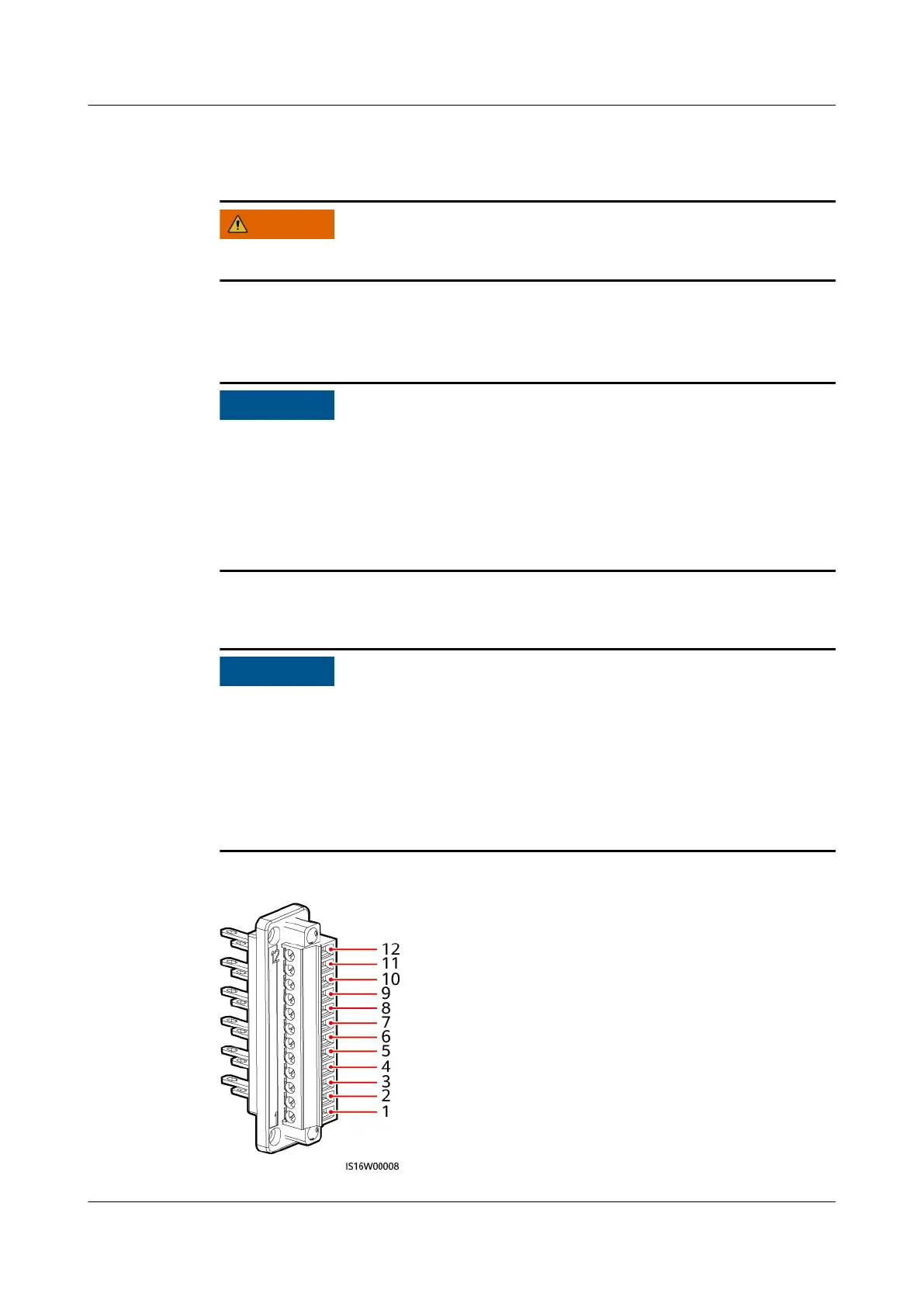

Figure 5-7 Signal denitions
SUN2000-(12KTL-25KTL)-M5 Series
User Manual 5 Electrical Connections
Issue 01 (2022-06-15) Copyright © Huawei Digital Power Technologies Co., Ltd. 35
