Fig.4

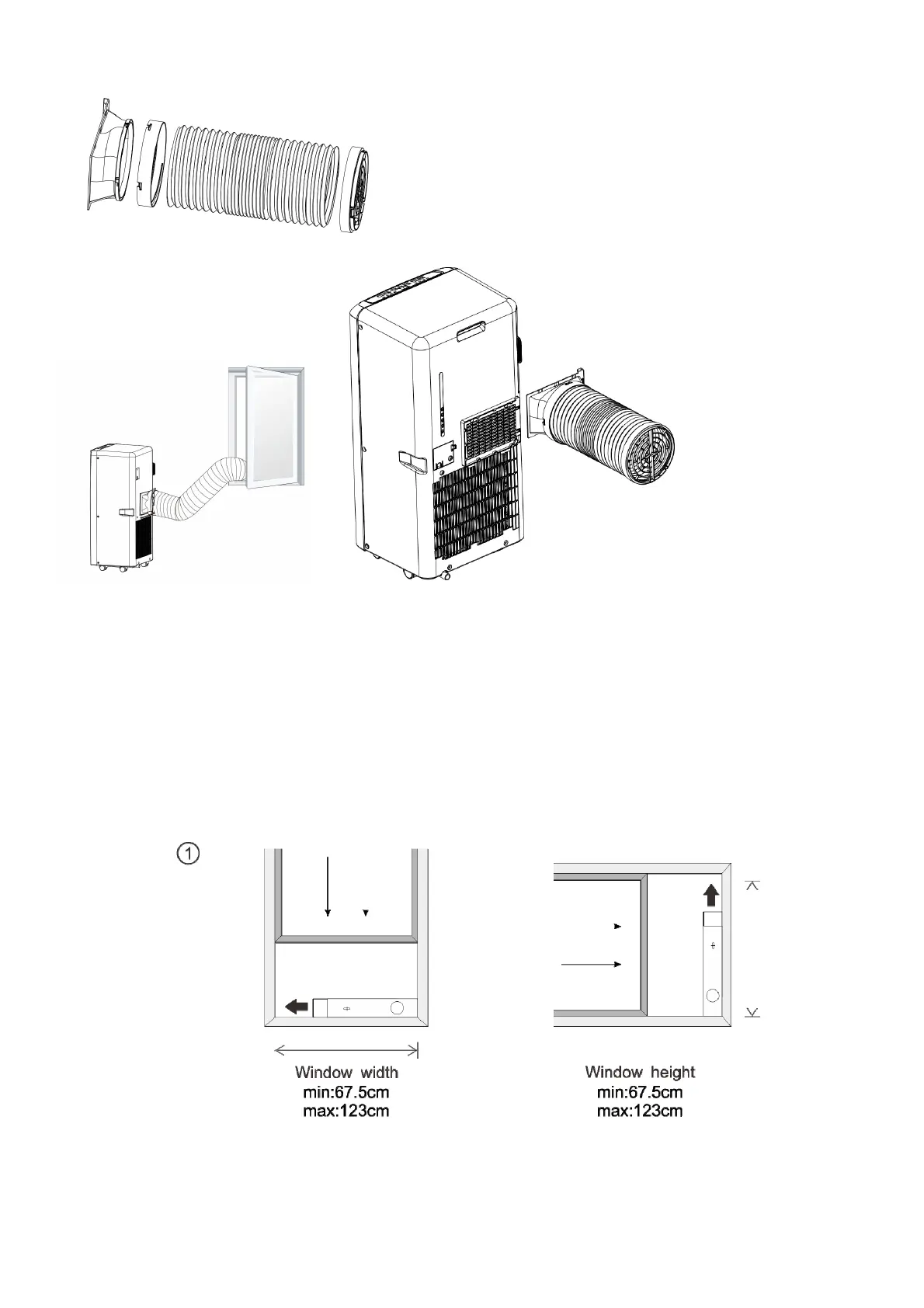

B) Window Kit Installation
The installation manner of window slider kit is mostly in “horizontal” or “vertical”. As
shown Fig.5 and Fig.5a, check the min. and max. size of the window before the installation.
1. Install the window kit on the window (Fig.5, Fig.5a);
2. Adjust the length of the window slider kit according to the window width or height, and fix it with
the dowel;
3.Insert the window connector of the hose to the hole of the window kit(Fig.5b)
Fig.5 Fig.5a
45
