INSTALLATION MANUAL
46
MULTI SPLIT IX21D5
Installation
plate
Mounting screw
Refrigerant
ST3.9
×25-C-H
pipe
Remote
controller
holder
Clip anchor
(2)
1
2
3
5
4
1
Installation plate
Mounting screw
Clip anchor
ST3.9
×25-C-H
(1)
Remote
controller
holder
5 4 3
2
The maximum
amount of the
connection cables is 5.
This section is for
reference only.
Air-break Switch
Drainage
Pipe
Air-break
Switch
Outdoor Unit
Power Cable

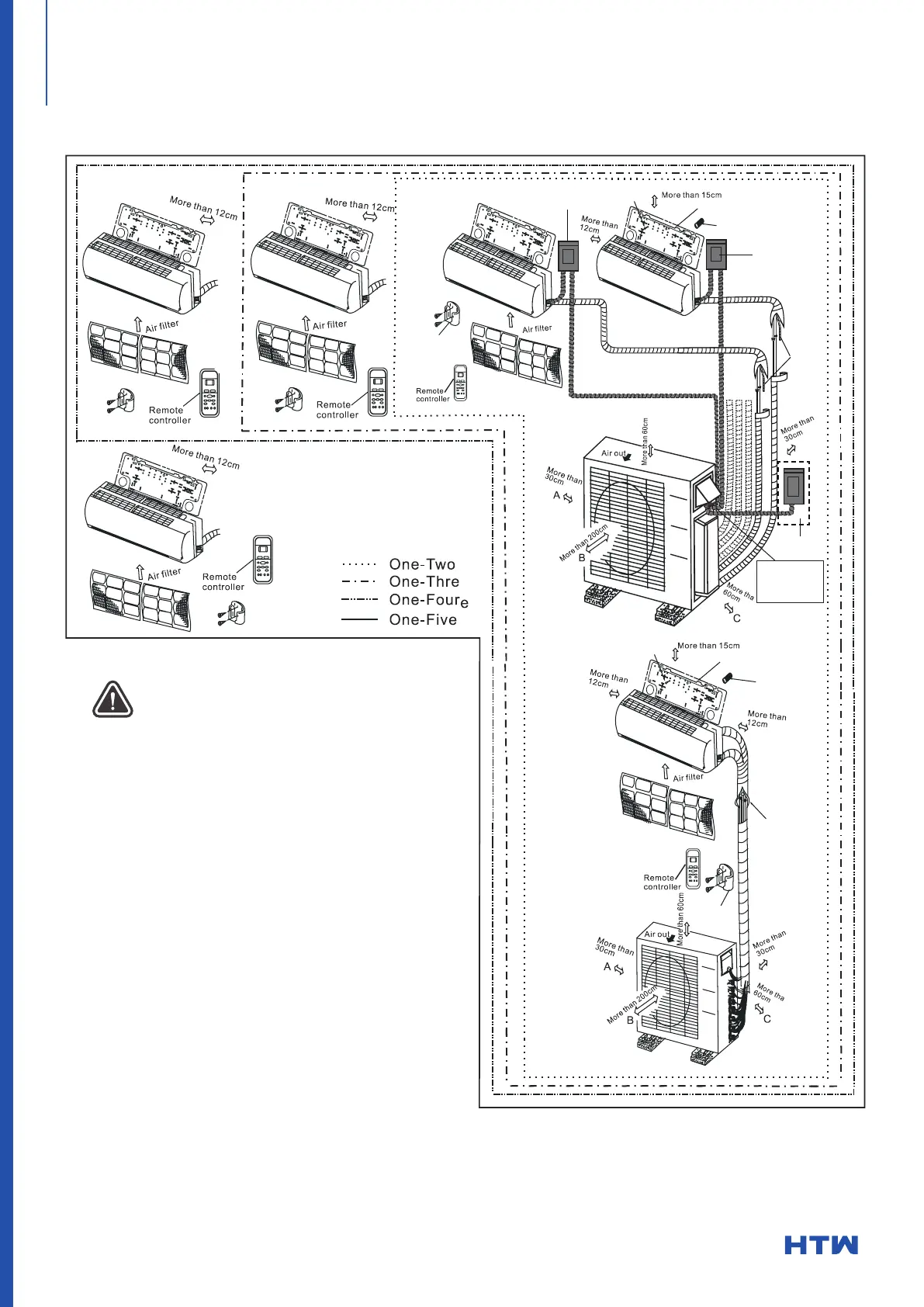

3. INSTALLATION DIAGRAM
SAFETY PRECAUTIONS
CAREFUL
• To prevent damage to walls, use a stud nder to detect
studs.
• A minimum pipe run of 3 meters is required to minimize
vibrations and excessive noise.
• Two of the air circulation paths A, B and C must always
be free of obstructions.
• This illustration is for demonstration purposes only.
• The actual shape of your air conditioner may be slightly
different.
• Copper conduits must be independently insulated..
NOTE: Installation must be done in compliance with
local and national regulations. Installation may need to
be done slightly differently depending on each area.
