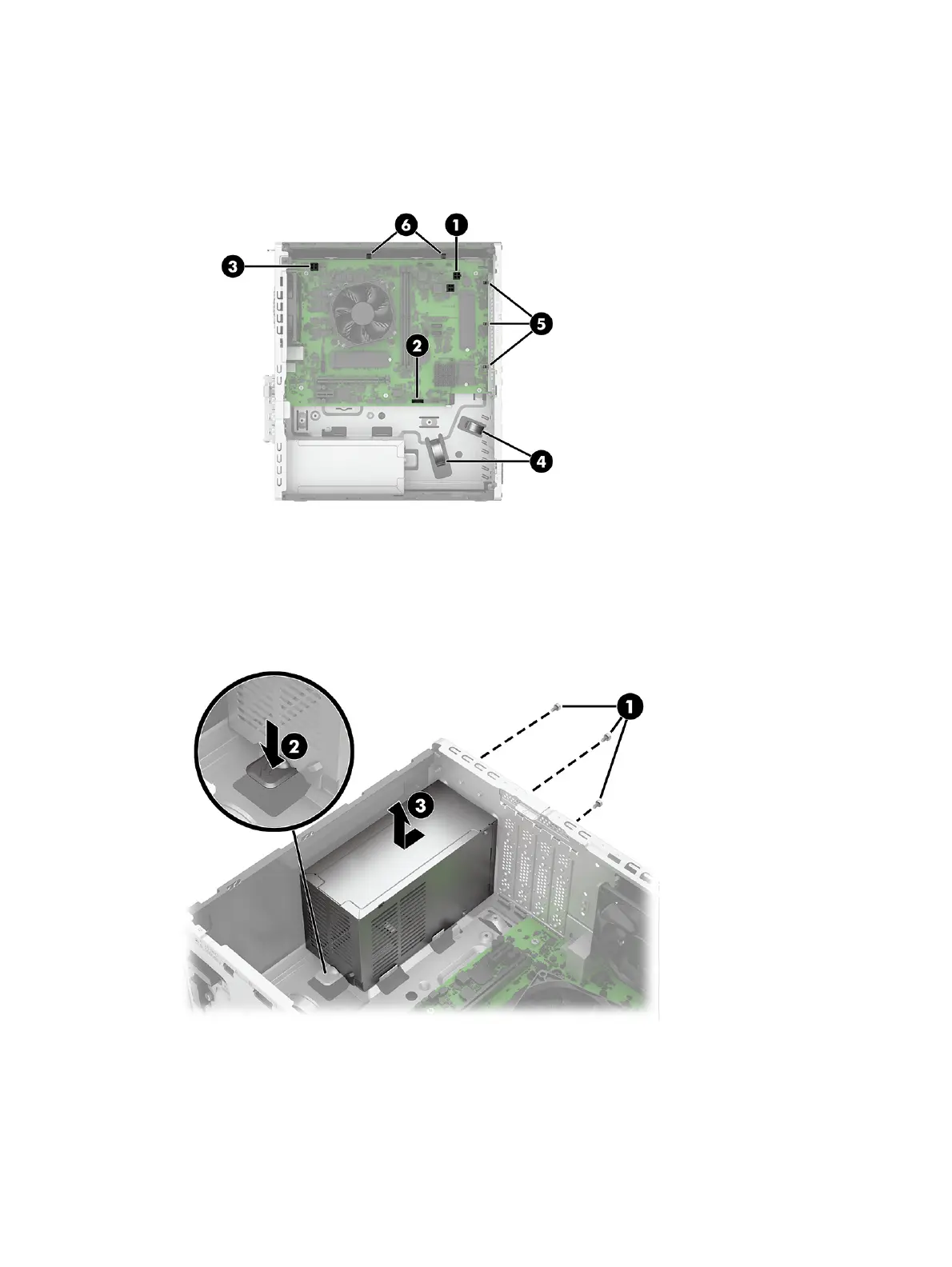

4. Remove the cables from the large clips (4) in front of the power supply and the clips (5) on the inside
front wall of the chassis.
5. Remove the PWRCPU cable from the clips (6) on the side of the computer between the system
board and wall of the chassis.
6. On the outside, rear of the computer, remove the three screws (1) that secure the power supply to
the rear of the chassis.
7. On the chassis floor in front of the power supply, press the release lever (2).
8. Slide the power supply (3) toward the front of the computer, and then lift it out of the computer.
To install the power supply, reverse the removal procedures.
Optical drive cage
To remove the optical drive cage, use these procedures.
40
Chapter 4 Removal and replacement procedures
