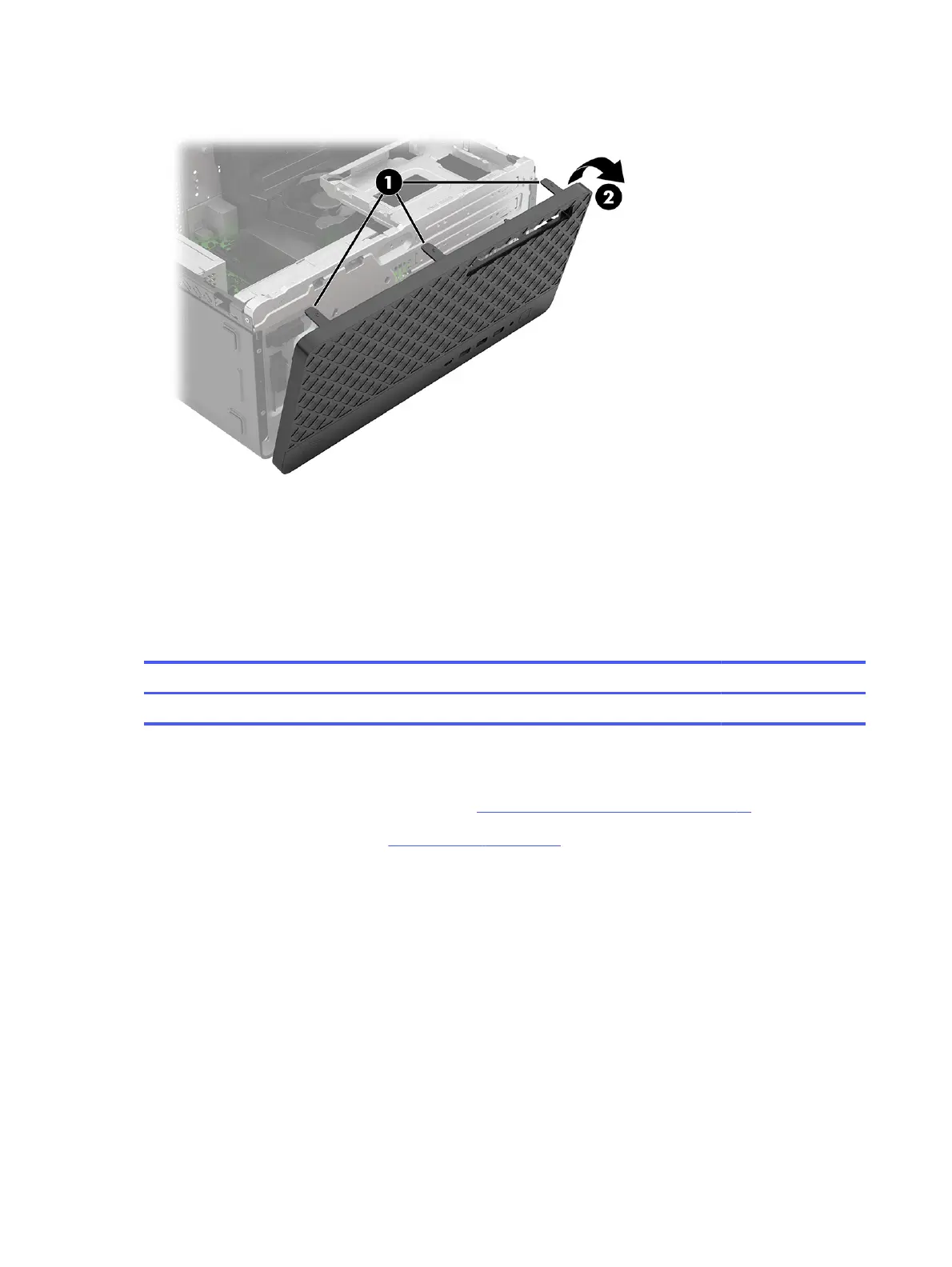

Pull the three tabs (1) upward, and then rotate the bezel (2) off the computer.
To install the front bezel, reverse the removal procedure.
Fan duct (UMA models only)
To remove the fan duct, use these procedures.
Table 4-3
Fan duct description and part number
Description Spare part number
Fan duct (for use in UMA models only) P26756-001
Before removing the fan duct, follow these steps:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 19).
2. Remove the access panel (see Access panel on page 19).
Remove the fan duct:
1. Lift the rear duct (1) out of the computer.
22
Chapter 4 Removal and replacement procedures
