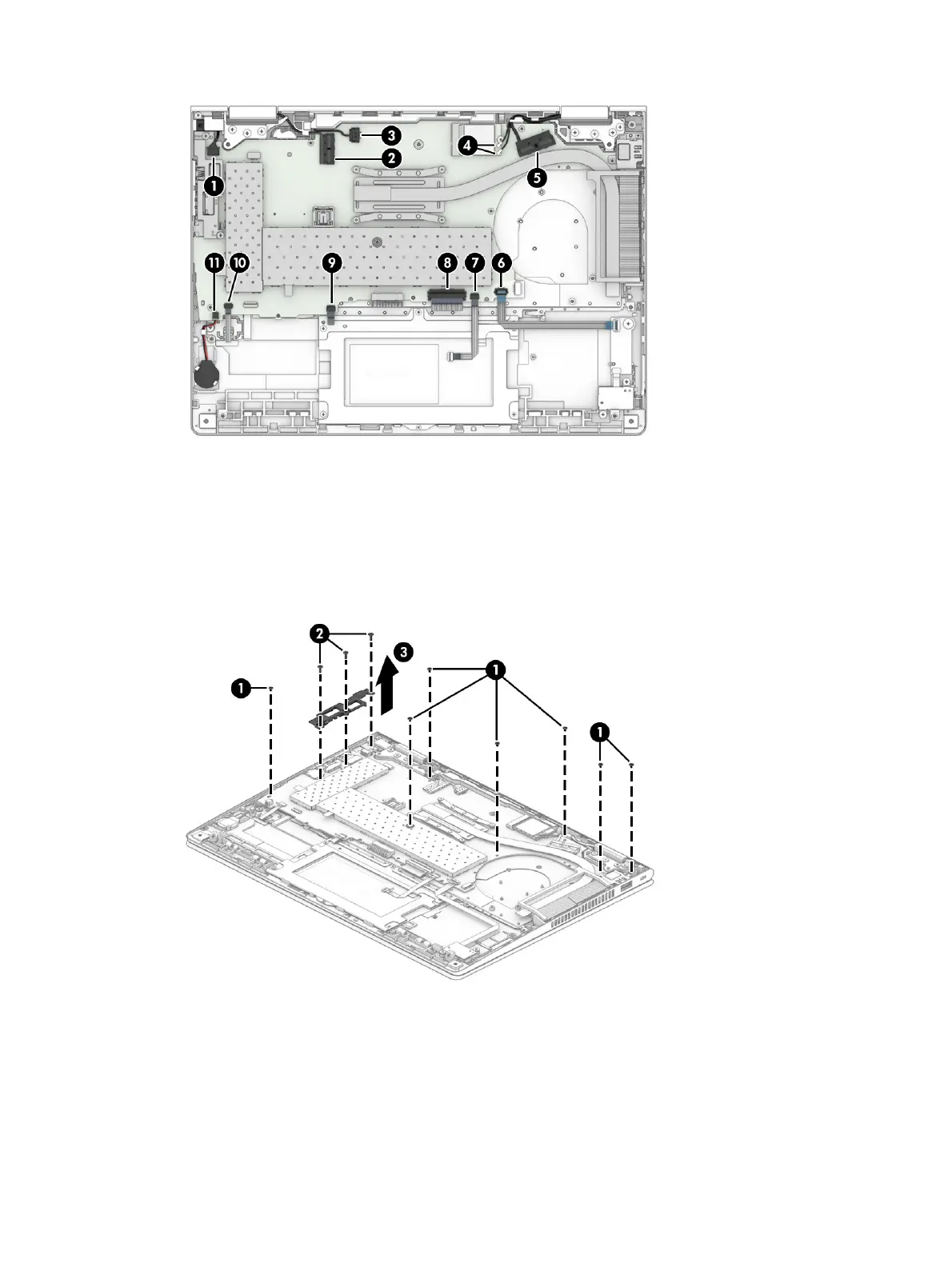

2. Remove the seven Phillips M2.0 × 2.3 screws (1) that secure the system board to the computer.
3. Remove the three Phillips M2.0 × 5.0 screws (2) that secure the system board and the I/O bracket to
the computer.
4. Remove the I/O bracket (3).
The I/O bracket is included in the Plastics Kit, spare part number N39195-001.
5. Lift the right side of the system board (1) until it rests at an angle.
6. Remove the system board (2) by sliding it up and to the right at an angle.
When removing the system board, be sure to make note of the location of the USB port bracket (3).
This bracket may become dislodged when the system board is removed.
54
Chapter 5 Removal and replacement procedures for authorized service provider parts
