e. Disconnect the cable from the panel (2).

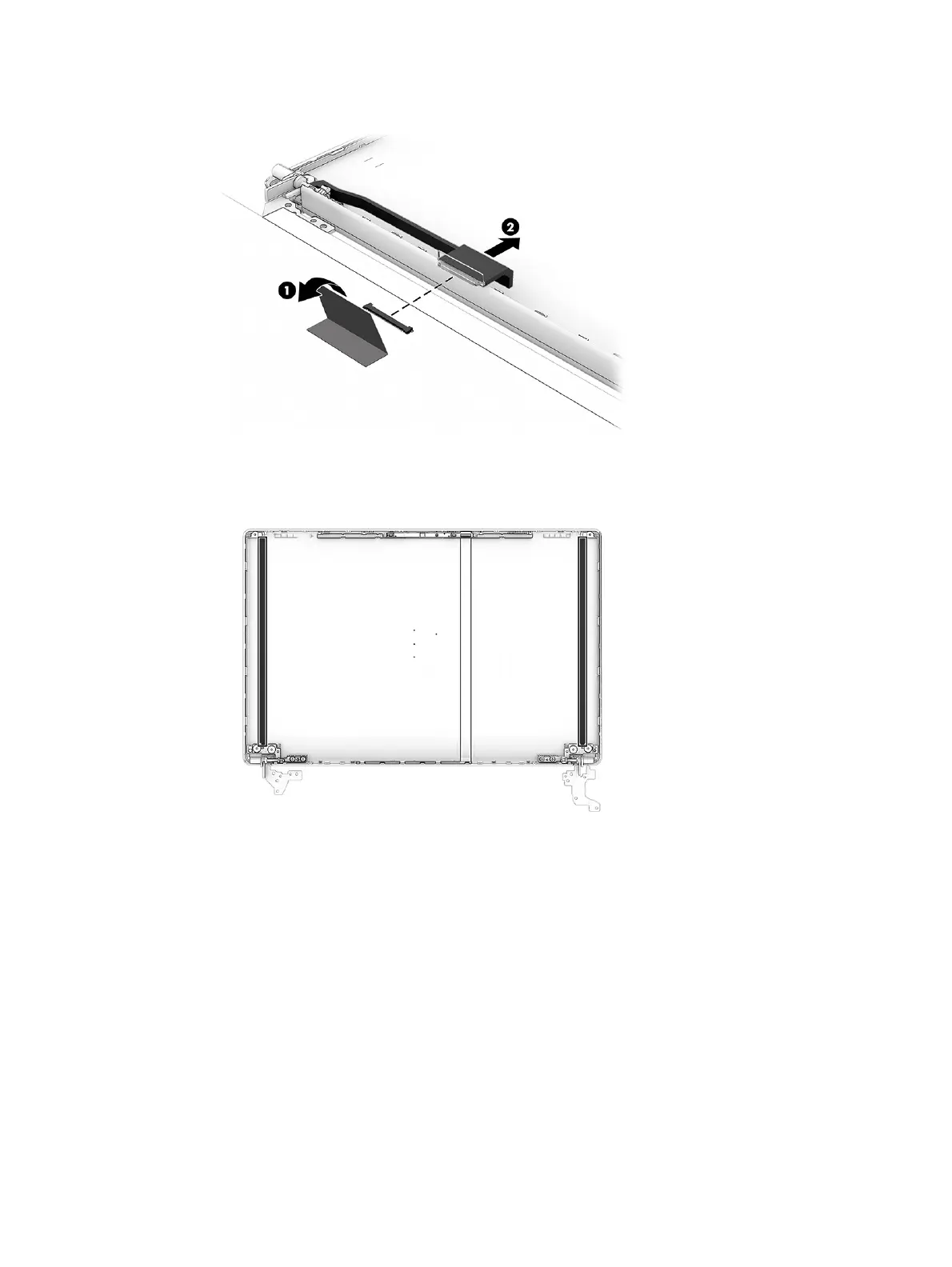

f. When replacing the display panel, use the following illustration to determine the proper
installation locations of the stretchable tape on the display back cover.
Display panels are available as the following spare part numbers:
P21489-001—FHD, antiglare, UWVA, low blue light, 300 nits
P21488-001—FHD, antiglare, SVA, 250 nits
P21490-001—HD, antiglare, SVA, 250 nits
Display panel adhesive is available as spare part number P31856-001.
10. To remove the hinges from the display enclosure:
a. Remove the two Phillips M2.0 × 2.5 screws (1) that secure the hinges to the display back cover.
b. Remove the two Phillips M2.5 × 3.5 screws (2) that secure each hinge to the display back cover.
c. Remove the two Phillips M2.5 × 2.5 screws (3) that secure each hinge to the display back cover.
58
Chapter 6 Removal and replacement procedures for authorized service provider parts
