31-5000884 Rev. 6 13
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS

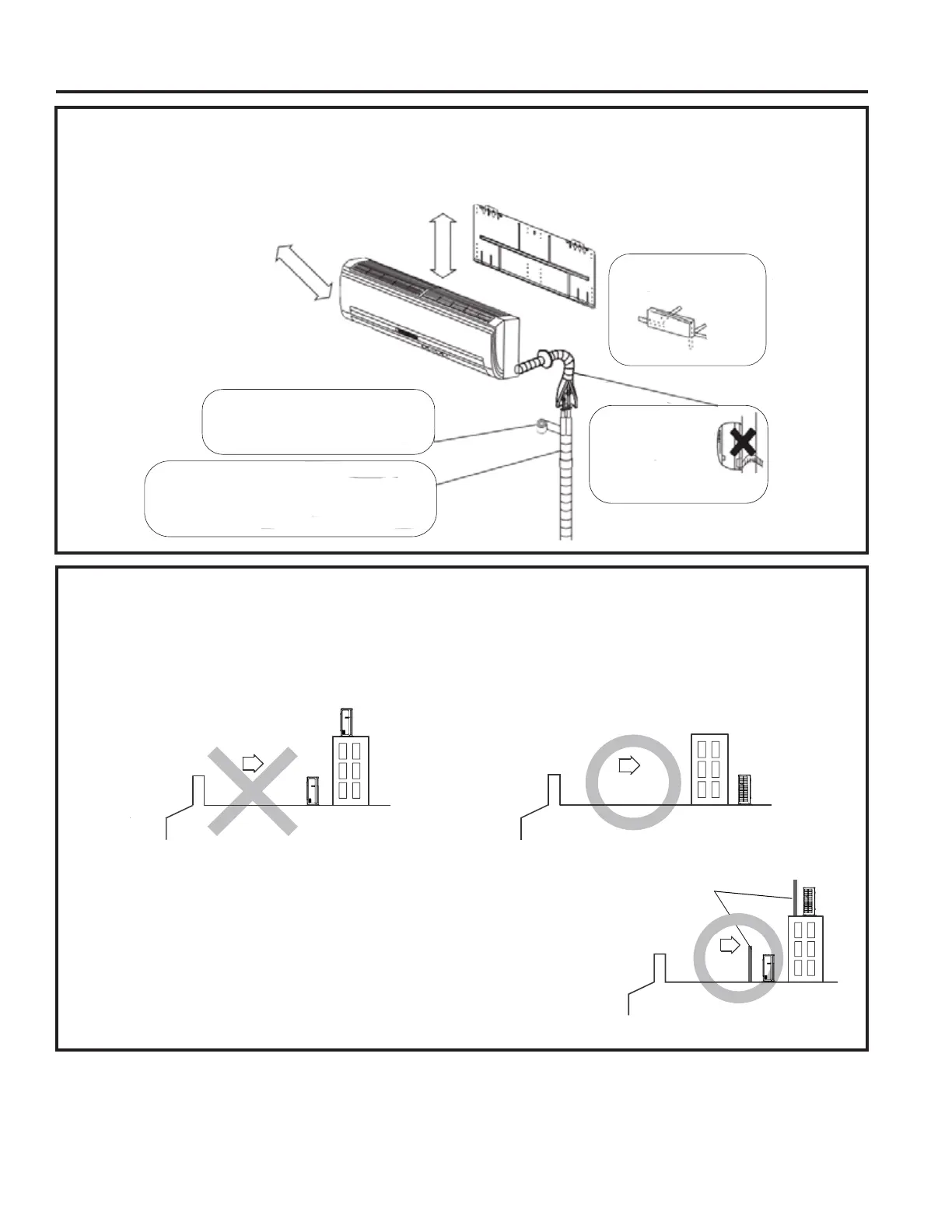

MINIMUM CLEARANCES
(Appearance may vary)
This picture is for reference only. Your product may look different. Read your manual before installation. Explain the
operation of the unit to the user according to this manual.
Wrap the insulation pipe with
WKH¿QLVKLQJWDSHIURPWKH
bottom to top.
Cut thermal insulation pipe to an
appropriate length and wrap it with tape,
making sure that no gap is left in the
insulation pipe’s cut line.
Arrangement of
piping directions
Condensate piping
must have a
downward slope of
at least 1/4” per foot
for proper drainage.
Rear Left
Rear Right
Right
Below
Left
More than 4 inches
More than 4 inches
SALTWATER COAST INSTALL
• The outdoor unit should be installed at least ½ mile away from the salt water, including seacoasts and inland
waterways. If the unit installed from ½ mile to 5 miles away from the salt water, including seacoasts and
inland waterways, please follow the installation instruction below.
• Install the outdoor unit in a place (such as near buildings etc.) where it can be protected from sea breeze
which can damage the outdoor unit.
• If you cannot avoid installing the outdoor unit by the seashore, construct a
protection wall around it to block the sea breeze.
• A protection wall should be constructed with a solid material to block the
sea breeze. The height and the width of the wall should be 1.5 times
larger than the size of the outdoor unit. Also, allow at least 28“ (700mm)
between the protection wall and the outdoor unit for air circulation to
ventilate.
• Install the outdoor unit in a place where water can drain freely.
• If the above conditions cannot be met, contact HotPoint for assistance.
Protection Walls
Sea
Breeze
Sea
ODU
ODU
Sea
Breeze
Sea
ODU
Sea
Breeze
Sea
ODU
ODU
