4. Half Glass Door Reversal
Special Tools Required:
Wrench A: 1 - 11/16" (17 mm) Thin Open End Tappet Wrench
Wrench B: 1 - 5/16" (8 mm) Thin Open End Tappet Wrench
Note: Hinge brackets are universal and can be used in both left and right-hinged
applications.
Example shows change from right hinged to left hinged.
1) Lock the casters.
2) Remove the front panel, then being careful not to pull the wires on the control module
and door switch(es), remove the control panel. Secure the control panel so that it does

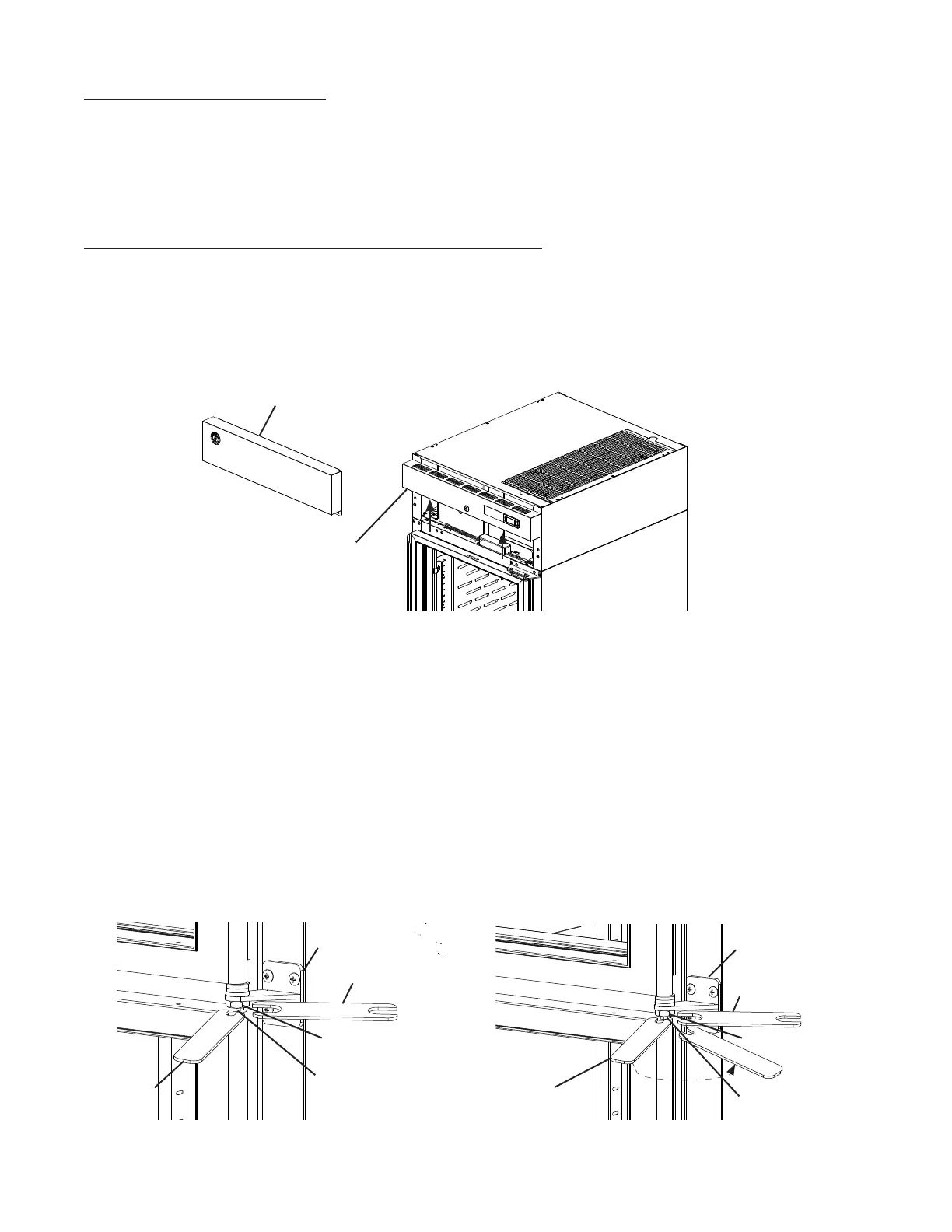

not interfere with the hinge brackets and will not fall. See Fig. 52.
3) At the center hinge, place wrench B on the tension rod and hold (prepare for tension
pressure), then using wrench A, loosen the lock nut. See Fig. 53.
4) Turn wrench B counter-clockwise to relieve tension on the tension rod. Without releasing
the pressure on wrench B and the tension rod, use wrench A to tighten the lock nut.
See Fig. 54.
5) Grip wrench B in a new position on the tension rod and hold (prepare for tension
pressure), then using wrenchA, loosen the lock nut again.
6) Once loose, turn wrench B counter clockwise to relieve tension on the tension rod.
Repeat until all tension is released from the tension rod.
Fig. 54
Fig. 52
Fig. 53
Center Hinge
Bracket
Front Panel
Control Panel
Wrench B
Wrench A
Wrench A
Lock Nut
Tension Rod
Wrench B
Lock Nut
Tension Rod
Center Hinge
Bracket
