21
3) While maintaining a hold on the door, remove the upper hinge bracket then lift the door
up off the bottom hinge and set aside. See Fig. 16. Remove the ller screws from the
opposite side upper hinge bracket holes and mount them into the holes of the removed
upper hinge bracket. NOTICE! Be sure to reuse the bracket screws for mounting the
bracket as the bracket screws are 5×12 and ller screws are 5×10.

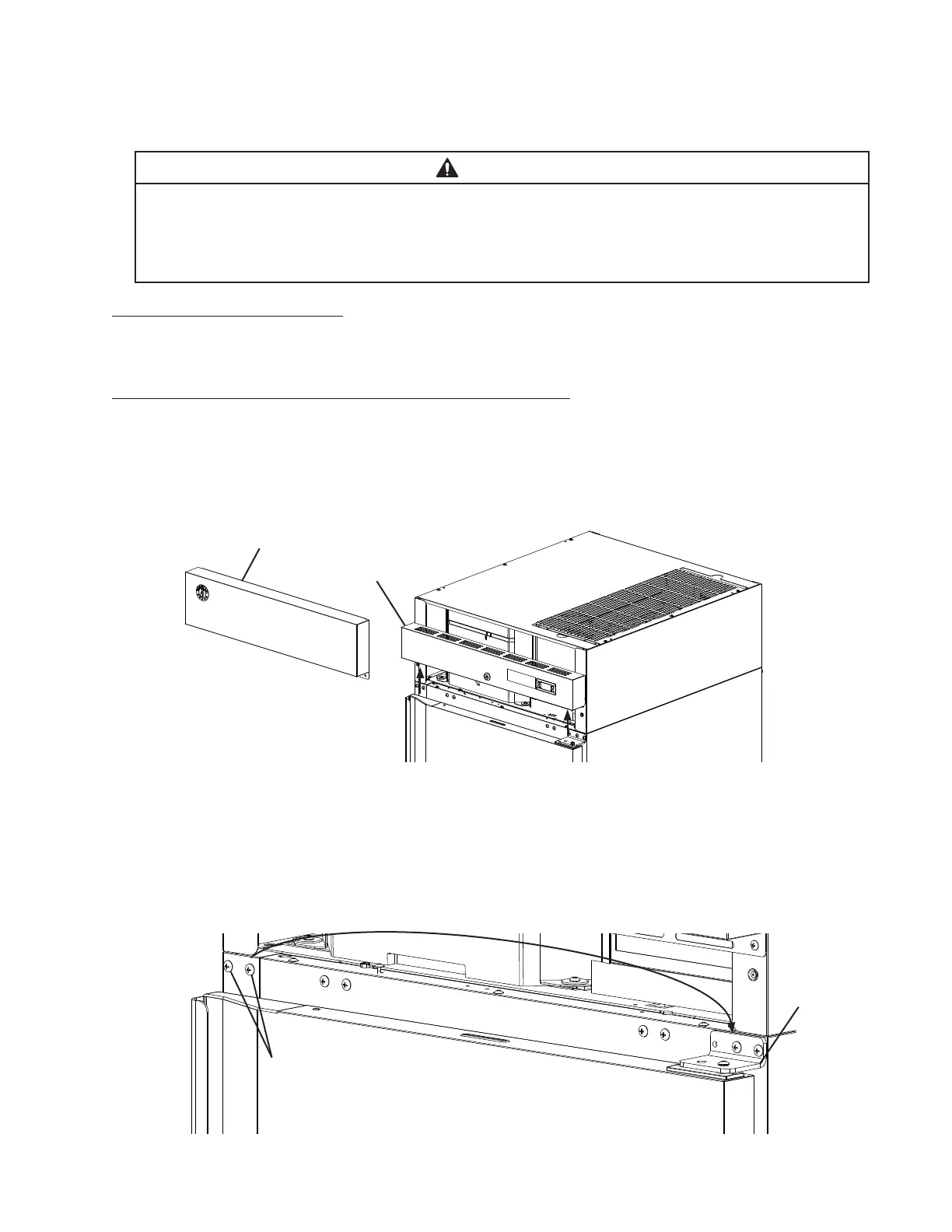

Fig. 15
F. Door Reversal
This appliance is provided with a cabinet design which, after being delivered to the
installation location, permits changing of the door swing from left to right or right to left.
WARNING
• Wear proper PPE (personal protection equipment) when executing these
procedures (safety glasses and gloves).
• Keep ngers away from edge of upper hinge bracket. Spring cartridge can cause
the upper hinge bracket to move suddenly with extreme force.
1. Full Solid Door Reversal
Note: Hinge brackets, and spring cartridge are universal and can be used in both left and
right-hinged applications.
Example shows change from right hinged to left hinged.
1) Lock the casters.
2) Remove the front panel, then being careful not to pull the wires on the control module
and door switch(es), remove the control panel. Secure the control panel so that it does
not interfere with the hinge bracket and will not fall. See Fig. 15.
Fig. 16
Front Panel
Filler Screws
Upper Hinge
Bracket
Control Panel
