ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at
21
MSM75_3IN1_230V | MSM75_3IN1_400V
When dimensioning the required space, take into account that the operation, maintenance and
repair of the machine must be possible without restrictions at all times. In the case of long
workpieces, no crushing or shearing points may occur in the extension area (=danger area). Also
note the space required for any auxiliary stands or work tables for supporting long workpieces.
WARNING
Danger of tipping over!
Unanchored machine can tip over and cause injuries.
• Anchor the machine in the ground before commissioning!
The base plate of the machine has fixing holes by means of which the machine is firmly connected
to the floor. This prevents movement of the machine during operation and possible damage or
injury.
NOTE
Required mounting material is not included in the scope of delivery.
Preparation of the surfaces
Before putting the machine into operation, carefully remove the corrosion protection or grease
residues from the bare metal parts. This can be done with the usual solvents. Under no
circumstances should you use nitro thinners or other cleaning agents, as these can attack the
machine´s finish.
NOTE
The use of paint thinners, petro, aggressive chemicals or scouring agents will damage
the surfaces!
Therefore: Use only mild cleaning agents!
14.2 Assemble
NOTE
The machine and machine components are heavy!
2 persons are required to assemble the machine.
The machine comes pre-assembled, it is necessary to assemble the components dismantled for
transport according to the following instructions and to make the electrical connection.

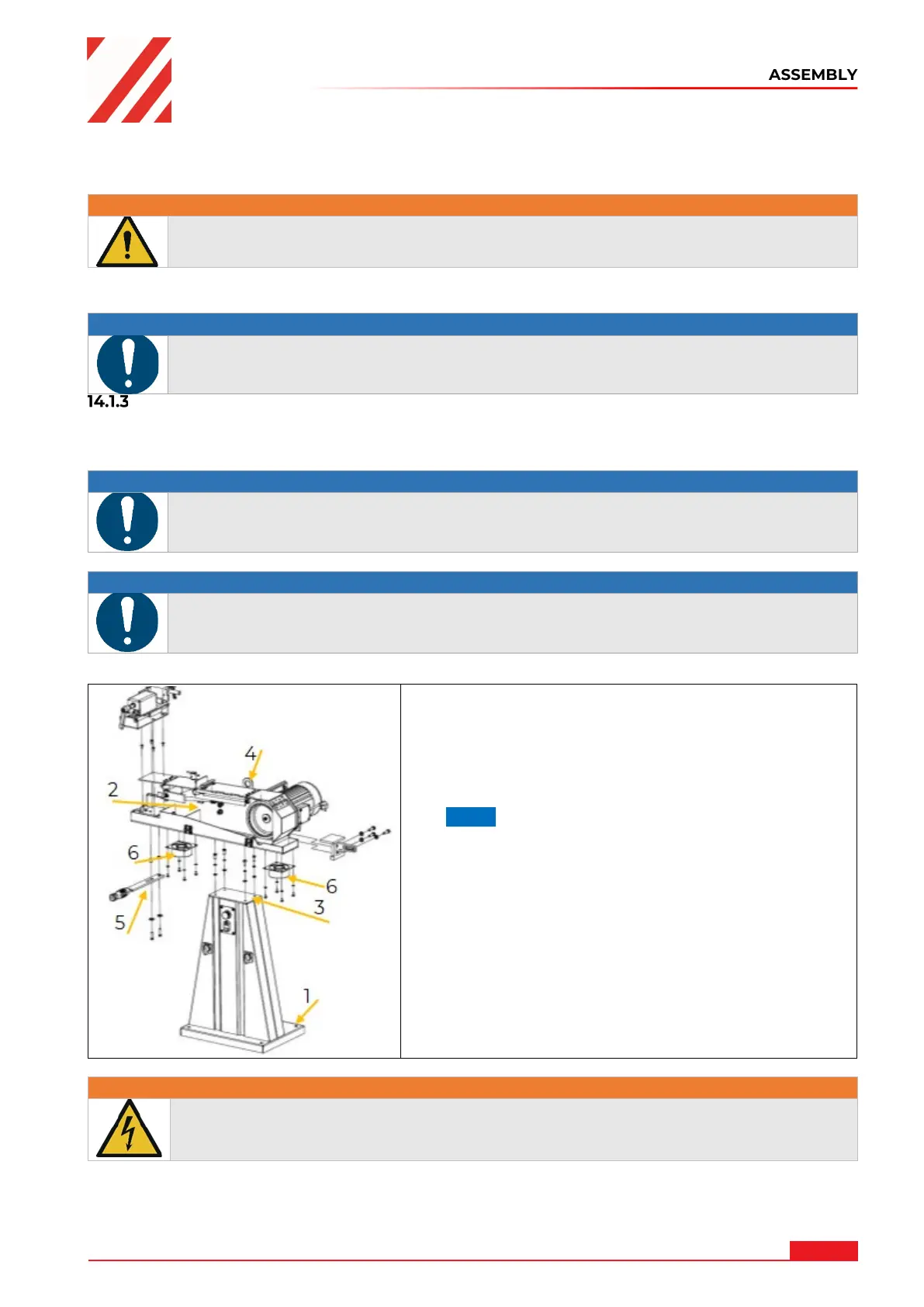

1. Attach the machine column to the base plate (1)
with 4 screws.
2. Remove the protective cover of the sanding unit
(2).
3. Place the intermediate plate on the machine
column (3).
4. Lift the sanding unit onto the machine column:
NOTE: Carry out this step using a suitable crane.
Hook the lifting gear into the lifting eye (4) of the
sanding unit and position it on the intermediate
plate of the machine column (3).
5. Secure the sanding unit with the screws. Close the
protective cover again (2).
6. Position the feed lever under the front of the table
and secure it (5).
7. When using the machine WITH extraction system:
Attach an extraction hose to the extraction
connection (6).
When using the machine WITHOUT extraction
system:
Close the opening of the suction connection with
a plate (6).
14.3 Electrical connection
WARNING
Dangerous electrical voltage!
Risk of injury due to dangerous electrical voltage!
• The associated checks of power supply may only be carried out by a qualified
electrician or under the instruction and supervision of a qualified electrician!
• Check, whether the neutral connection (if existing) and the protective grounding function
properly.
• Check, whether the supply voltage and the frequency correspond to the specifications of
the machine.
