ASSEMBLY
HOLZMANN MASCHINEN GmbH www.holzmann-maschinen.at 47
ED750FDQ

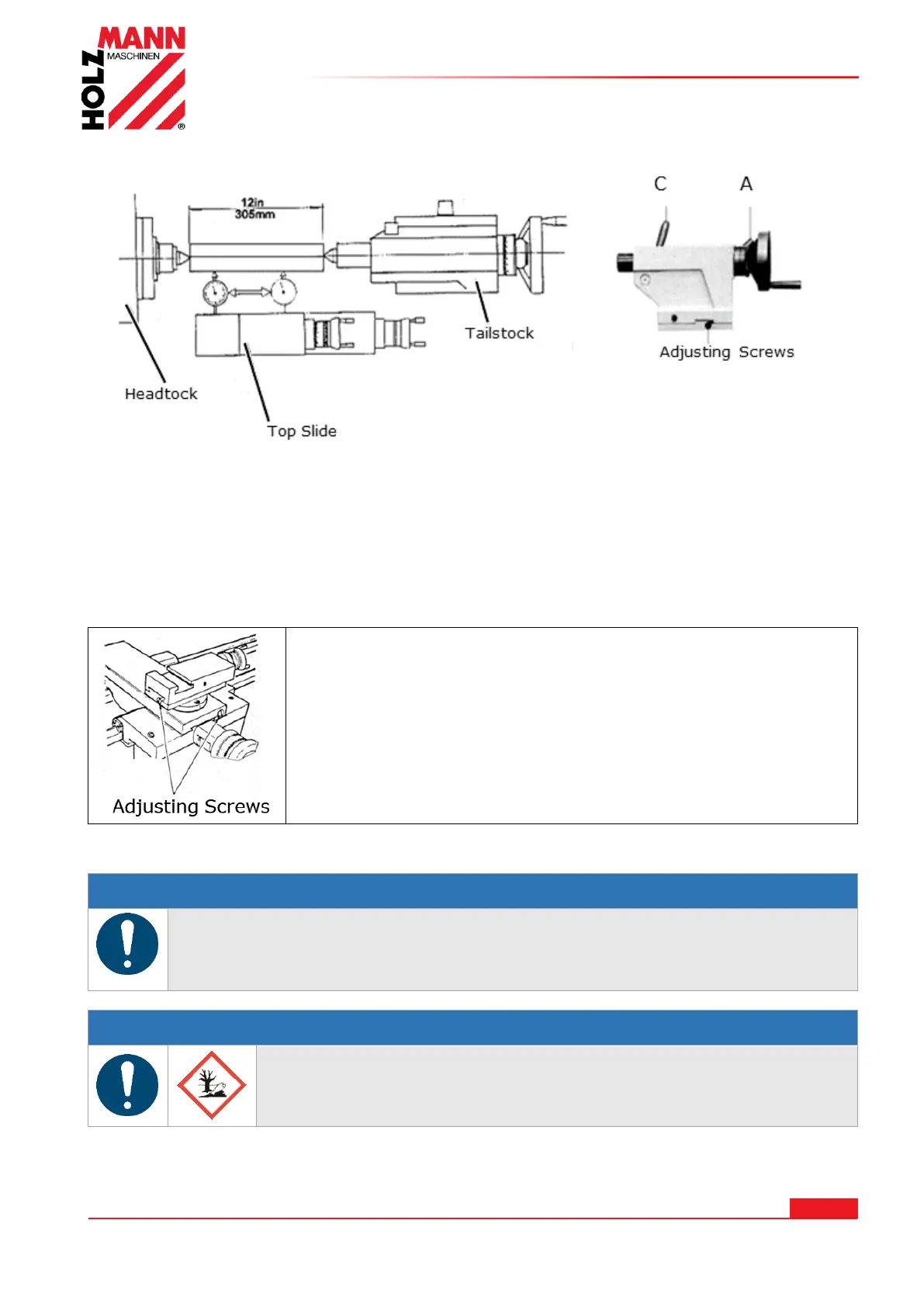

17.2.5 Adjusting the tailstock
A … clamping lever tailstock; C … clamping lever spindle sleeve;
To adjust the tailstock, clamp a ground steel tube 305 mm long between the headstock and
tailstock tips (see illustration above). Now place a dial gauge on the top slide and pull it along the
workpiece axis below the workpiece.
If the dial gauge shows different values, loosen the tailstock clamping lever (A) and readjust
using the two set screws. Repeat this procedure until both points are exactly aligned.
17.2.6 Adjusting the sliding guides
The sliding guides of the cross slide and top slide are equipped with
bevelled guide rail adjusting screws (see illustration on the left), which
can be used to eliminate any play that may occur there over time.
Ensure that the slideways are thoroughly cleaned before adjustment.
Then adjust the guide pads by loosening the rear guide pad adjusting
screw a little while tightening the front one a little. Ensure that
smooth running is guaranteed over the entire sliding guide section.
Too tight an adjustment will result in increased wear and heavy, jerky
running.
17.2.7 Visual inspection
NOTICE
The machine is delivered with running-in oil! This oil must be changed after the
running-in period (approx. 100 operating hours). Failure to do so may cause serious
damage to the machine. For running operation, use a viscous oil with viscosity ISO
220 (e.g. GOE5L) or a comparable SAE140 oil!
NOT I CE
Lubricants are toxic and must not be released into the environment!
Always follow the manufacturer's instructions and, if necessary, contact
your local authority for information on proper disposal.
Check the lubrication of the following parts and top up with suitable oil if necessary before
working on the machine:
