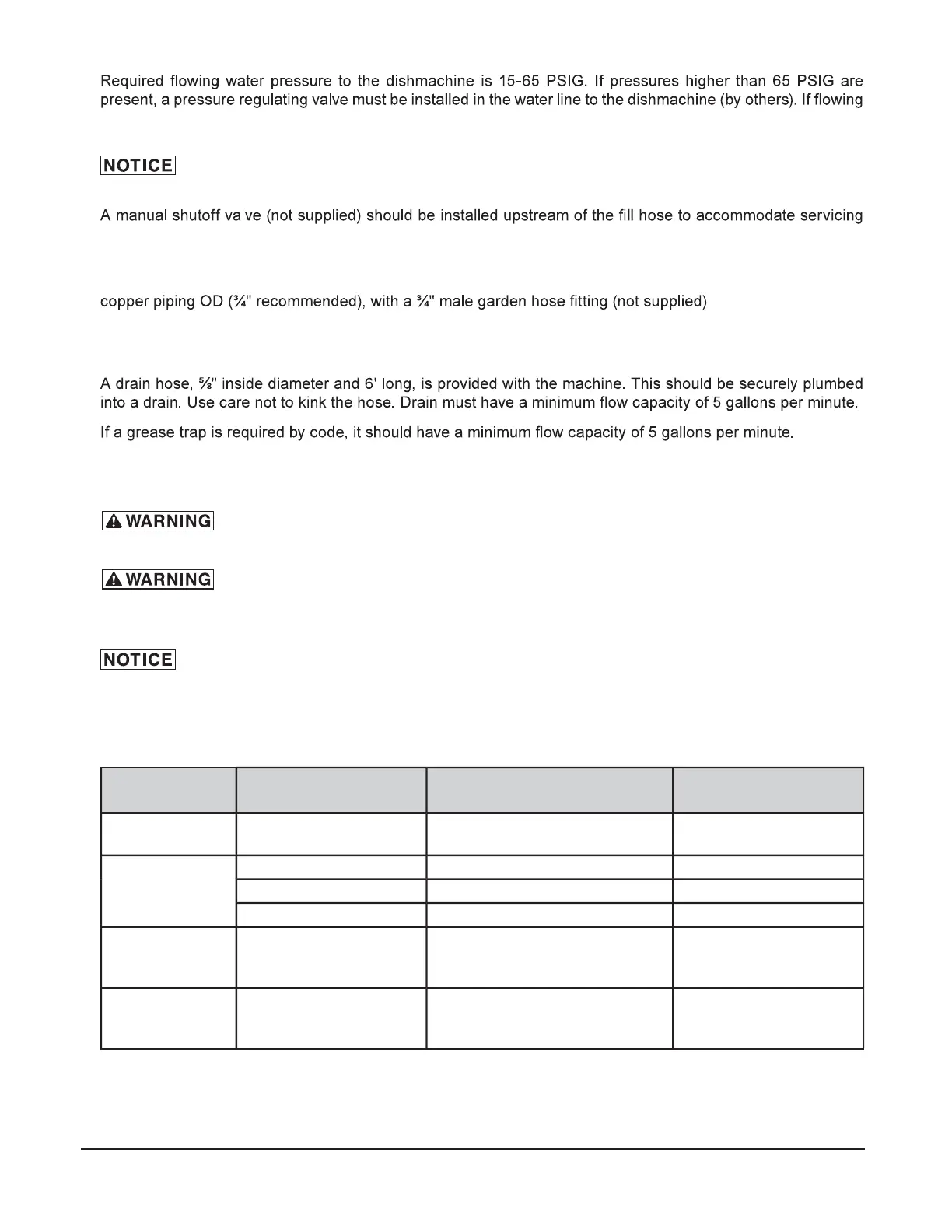

– 7 –
pressure is less than 15 psi, improper machine operation may result. All LXn / LXGn models are equipped with
a pumped rinse system; therefore, a water pressure gauge is not required and is not supplied with the machine.
The water pressure regulator must have a relief bypass. Failure to use the proper type of
pressure regulator may result in damage to the unit.
the machine.
It is recommended that a line strainer (not supplied) be installed in the supply line between the manual shutoff
valve (not supplied) and the connection point on the machine. Make plumbing connections with ½" minimum
Drain
ELECTRICAL CONNECTION
Electrical and grounding connections must comply with the applicable portions of the
National Electrical Code, NFPA 70 (latest edition), and / or other local electrical codes.
Disconnect the electrical power to the machine and follow lockout / tagout procedures.
Electrical Data
For supply connections, use copper wire only rated at 90ºC minimum.
Refer to the wiring diagram located on the back side of the lower front panel and to the machine data plate
located at the top of the door for service size requirements when connecting the dishwasher. Also, refer to the
electrical data chart shown below.
ELECTRICAL DATA
Model Volts/Hertz/Phase
Minimum Supply Circuit
Conductor Ampacity
Maximum Protective
Device Ampacity
LXnC
LXGnPR
120/60/1 20 20
LXnH
LXnR
208-240/60/1 40 40
208-240/60/3 30 30
220-240/50/1 40 40
LXnH
LXnR
LXGnR
120/208-240(3W)/60/1* 40 40
LXnH-30
LXnR-30
LXGnR-30
120/208(3W)/60/1* 30 30
*The (3W) systems require three power wires that include a current carrying neutral. An additional fourth wire
must be provided for machine ground.
