– 18 –

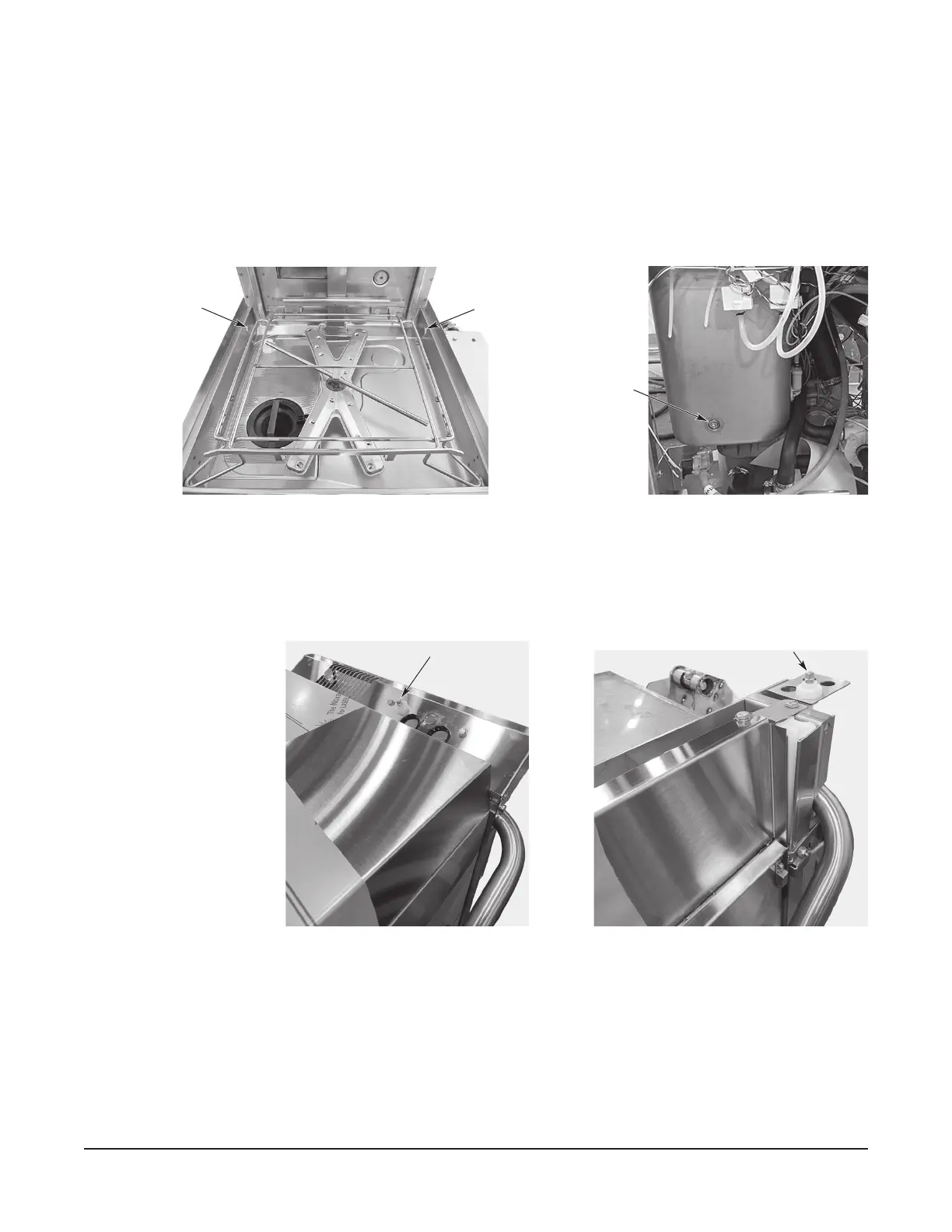

Detergent Dispenser
The dishwasher has three 7/8" diameter plugged holes; two on the rear upper tank side walls
(one left side, one right side, Fig. 12) and one on the lower front part of the tank (Fig. 13).
With the tank empty, remove both plugs to install the detergent dispenser.
• The upper tank holes are for installation of the detergent feeder tube (use left or right
side location).
• The lower tank hole is used for installation of the detergent sensor.
Rinse Aid Dispenser
Remove the 1/8" NPT plug (Fig. 14 for standard height units, Fig. 15 for tall units) for installation
of the rinse aid dispenser tube.
Fig. 15Fig. 14
RINSE AID PLUG
RINSE AID PLUG
Fig. 13
DETERGENT SENSOR
HOLE LOCATION
Fig. 12
DETERGENT FEEDER
HOLE LOCATION
(LEFT SIDE OPTION)
DETERGENT FEEDER
HOLE LOCATION
(RIGHT SIDE OPTION)
