– 14 –
Voltage Adjustment (380 - 415 Volt Machines Only)
This adjustment procedure applies to all AM16 dishwashers rated at 380 to 415 volts,
50 Hz, 3 phase. All other AM16 dishwasher voltages are preset at the factory and do not
require this adjustment procedure.
THIS PROCEDURE MUST BE DONE ONLY BY A QUALIFIED ELECTRICIAN.
If the supply voltage to the machine is 415 volts, no change is necessary. The control circuit
transformer [T2] should already be set to operate at 415 volts.
If the supply voltage to the machine is 380 volts, the control circuit transformer [T2] must be
changed to operate at 380 volts. To change the tap, relocate the red wire on TB5 terminal
block from the 415V tap to the 380V tap.
NOTE: TB5 is located on the controls baseplate located at the lower right side of the
machine (Fig. 10).
Motor Rotation (480-Volt & 50-Hertz Machines Only)
Before placing machine into service, check wash pump motor for correct rotation by observing
motor direction. If pump motor does not rotate in the correct direction, DISCONNECT
ELECTRICAL POWER SUPPLY and interchange any two of the incoming power supply
leads. Reconnect the power supply and verify correct rotation.

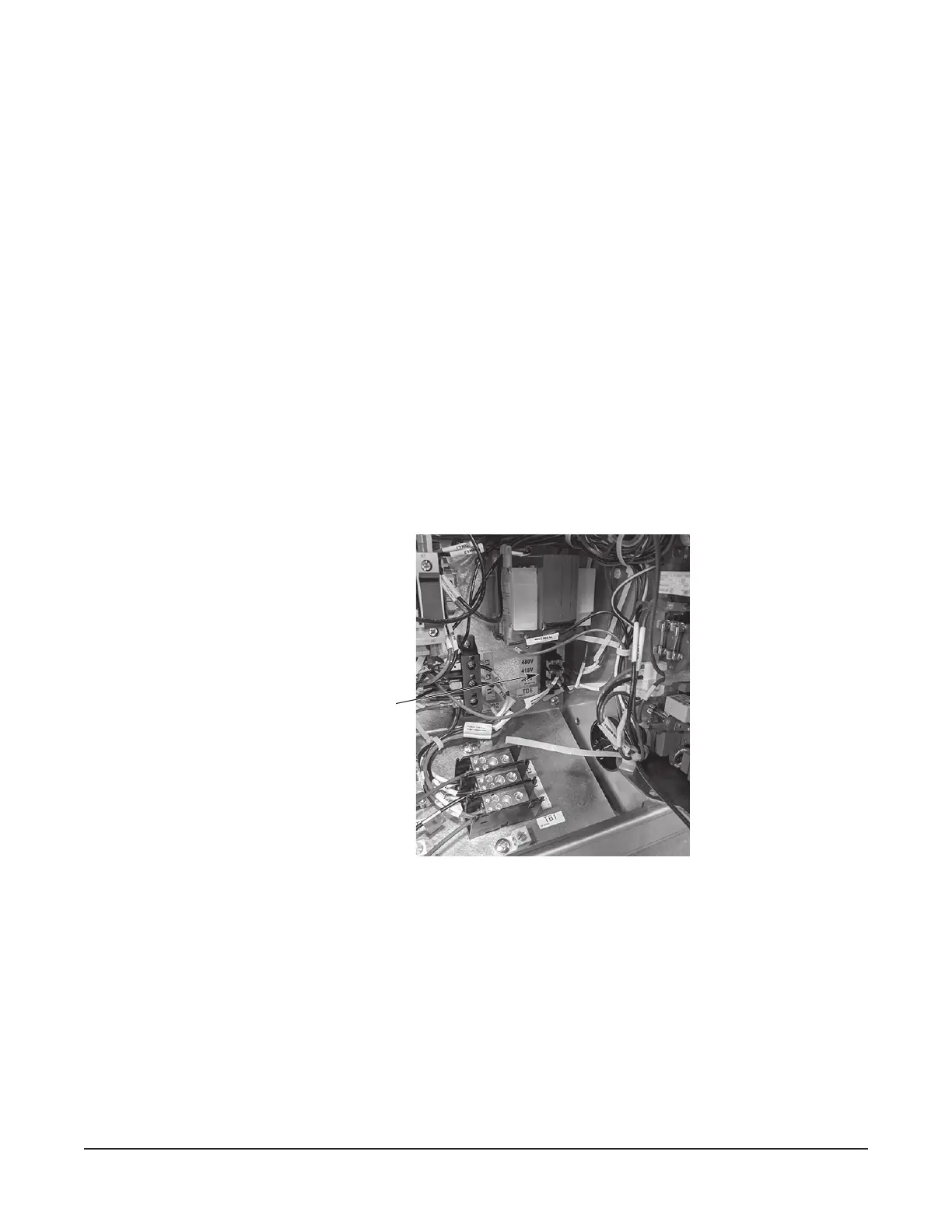

Fig. 10
TB5 TERMINAL
BLOCK
To convert an AM16 model to a dual point electric conguration or to convert from 3-phase to
single phase, refer to F-45845 instructions attached inside right hand trim panel of machine.
NOTE: AM16-SCB and AM16VL-SCB models cannot be eld converted to a dual point
conguration. These models can only be installed with a single-phase, single point electric
connection conguration.
