Connecting an ‘open window’ sensor
The use of sensor type ‘FDS 100’ is recommended if a window sensor must be installed. The sensor
must be of the potential-free NO (normally open) contact type. It must be connected to the designated
port on the motor control unit (MCU) in the enclosure at the front of the appliance. A cord of type
H05VV-F 2x0,5 mm
2
(or similar) is recommended for connecting a window sensor. Without a window
sensor, a jumper closes the electrical circuit.

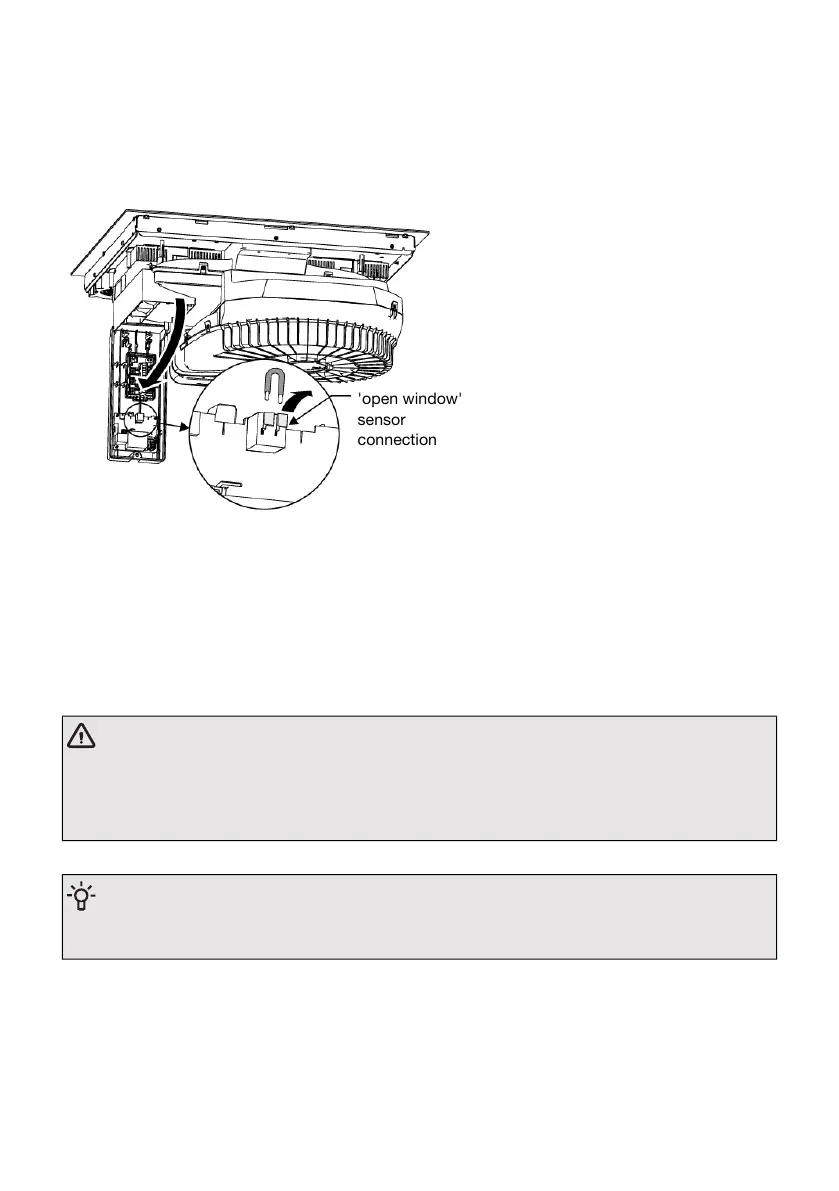

'open window'
sensor
connection
1. Unscrew and remove the cover of the MCU enclosure.
2. Remove the jumper of the sensor connection.
3. Connect the wires of the cord to the sensor connection.
4. Secure the cord at the cable outlet of the MCU housing with a tie wrap.
5. Connect the wires of the cord to the window sensor in such a way the contact is open when the
window is closed (consult the instructions included with the window sensor).
Installation settings
Current limiter
WARNING!
A registered and qualified installer must set the current limiter to match your connection and
circuit breakers. Please read the safety regulations and the installation instructions carefully.
Settings cannot be changed once the device has been connected to the mains for more than
2 minutes.
NOTE!
Setting a lower value of the current limiter will cause the appliance to perform at a reduced
level.
15
