Handleiding
Je bekijkt pagina 5 van 16
4

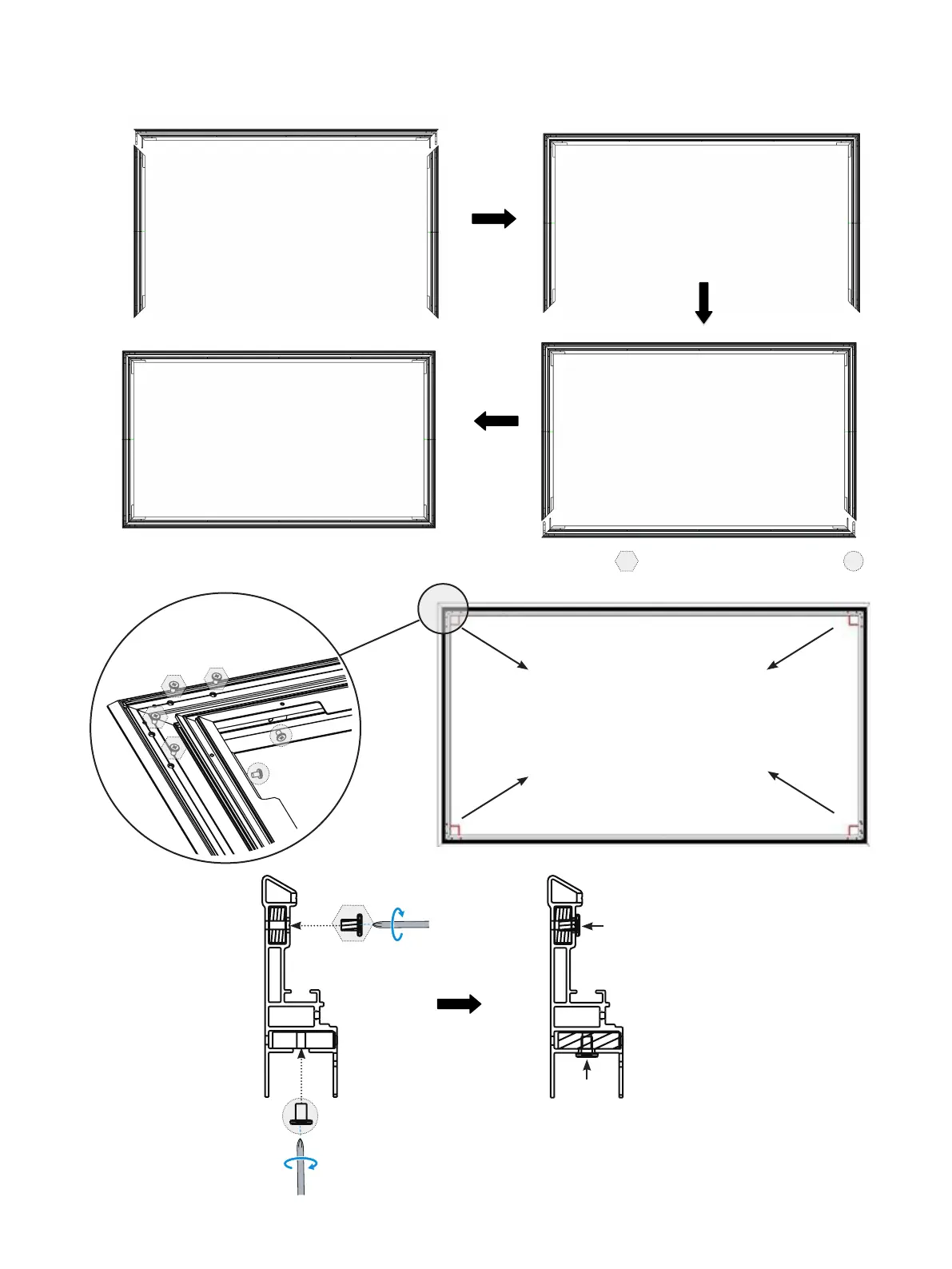

3. Insert the two
Short Inner Frames (B)
into the
L Corner Piece (C)
and
L Elbow Joint (D)
as shown in the diagram below.
4.
Fasten the four angles with the
M4x6 Screws (E)
. First fasten screws marked by , then fasten screws marked by in
the following figure.
A1
D
C
B B
D
C
A2
Make sure all four corners are
properly in place to form a
perfect square.
M4x6 Screw (E)
M4x6 Screw (E)
E
E
①
②
