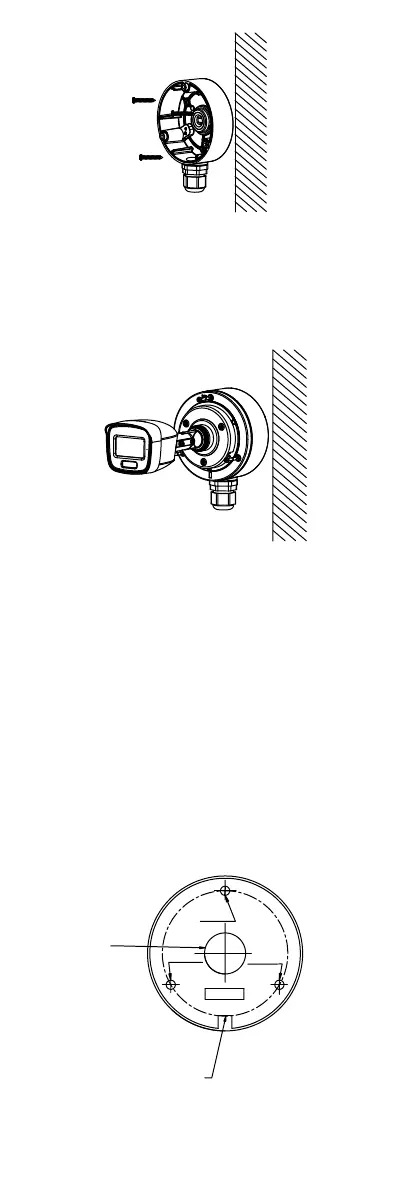

Figure 2-46 Secure the Junction Box on the Wall
7. Route the cables through the bottom cable hole or
side cable hole of the junction box and connect the
cables.
8. Fix the junction box cover on its body with three
PM3 × 16 L6 screws that come with the junction
box.
Figure 2-47 Fix the Junction Box Cover on Its
Body
9. Repeat steps 6 to 7 of 2.4.1 Ceiling/Wall Mounting
Without Junction Box to finish the installation.
2.5 Installation of Type V Camera
2.5.1 Ceiling/Wall Mounting Without Junction Box
Before you start:
The ceiling mounting and wall mounting are similar.
Following steps take ceiling mounting as an example.
Steps:
1. Paste the drill template (supplied) to the place
where you want to install the camera.
2. (Optional) For cement ceiling, drill the screw holes
with a 5.5 mm drill and insert the supplied wall
plugs.
Cable
Hole
Side Opening
Scre w Hole
Scre w Hole
Scre w Hole
template
Figure 2-48 Drill Template
3. (Optional) Drill the cable hole, when the cables are
routed through the ceiling.
