- 22 -

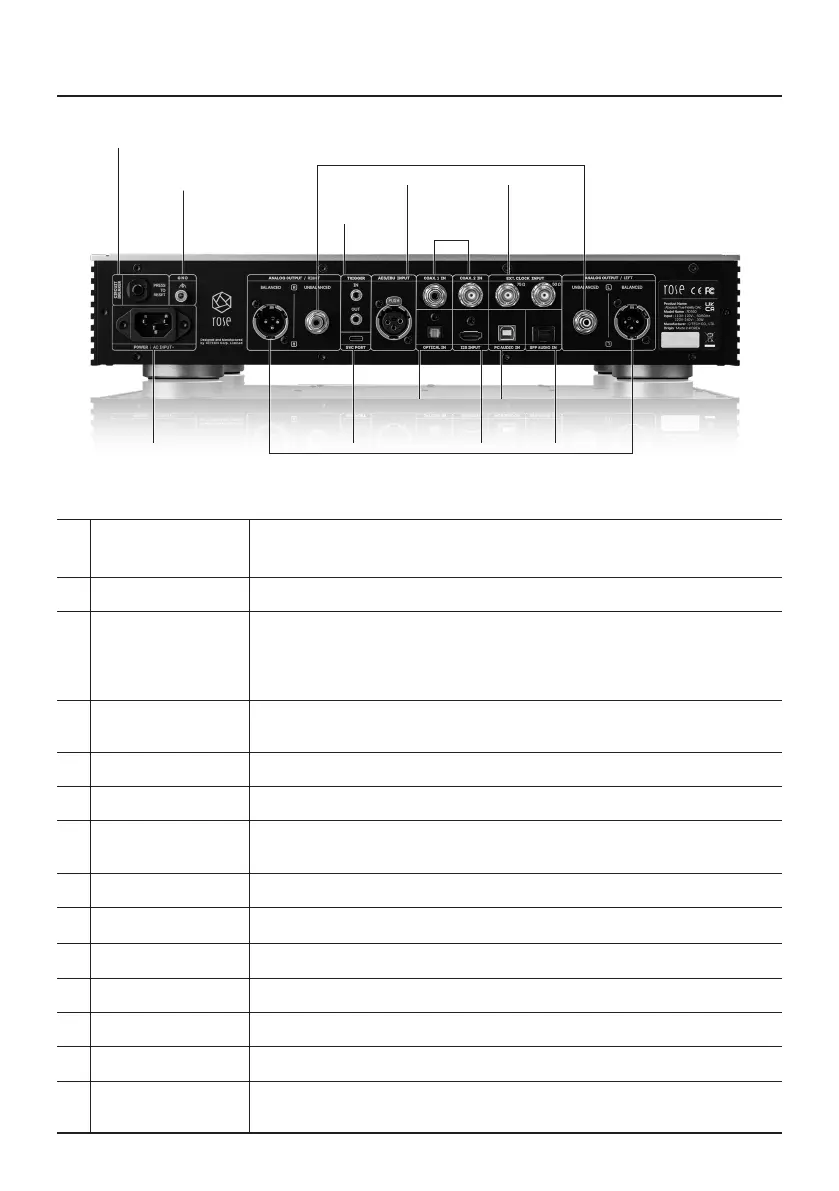

2. Rear Side of the Product
1 CIRCUIT BREAKER
This protection terminal prevents damage to the set due to overvoltage or
overcurrent.
2 GND
This port is used to ground the product and external devices.
3 TRIGGER In/Out
This is a function that automatically turns on the set without operation through
the remote control when power is supplied from an external device. When you
press the power on button on the set, a power control signal is output to the
trigger out terminal after the power is stabilized.
4
UNBALANCED
Output
Connect the RCA cable to this port to output analog signals.
5 AES/EBU Input
Connect the AES/EBU cable to this port to input digital signals.
6 COAX. Input
Connect the COAXIAL cable to this port to input digital signals.
7 EXT. CLOCK Input
You can connect a 50Ω SMA cable or 75Ω BNC cable to the EXT CLOCK port.
You can input an external clock by changing the mode in the input settings.
8 POWER (AC Input~)
Connect the AC power cable here.
9 SVC PORT
This port is used for system updates. (A/S Service Only)
10 OPTICAL Input
Connect the OPTICAL cable to this port to input digital signals.
11 BALANCED Output
Connect the Balanced cable to this port to output analog signals.
12 I2S Input
Connect the HDMI cable to the I2S port to input digital signals.
13 PC AUDIO Input
Connect the USB Type-B cable to this port to input digital signals.
14 SFP AUDIO Input
You can connect an SFP module and an external USB 3.0 fiber hub here with an
optical cable.
POWER
(AC Input~) SVC PORT
SFP
AUDIO In
I2S
Input
PC
AUDIO In
9
14
12
1310
AES/EBU
Input
TRIGGER
EXT. CLOCK
Input
8
BALANCED
11
UNBALANCED
4
7
COAX. In
6
GND
CIRCUIT
BREAKER
1
2
3
5
OPTICAL
In
