DIM 'X' GAS
1/8" [3.2mm] NG
11/64" [4.4mm] LP
MAIN ORIFICE
(SEE P/N ABOVE)
AIR SHUTTER
SINGLE-FLOW
BURNER BASE
ASSEMBLY
X
LOCK
SCREW
ORIFICE
HOLDER

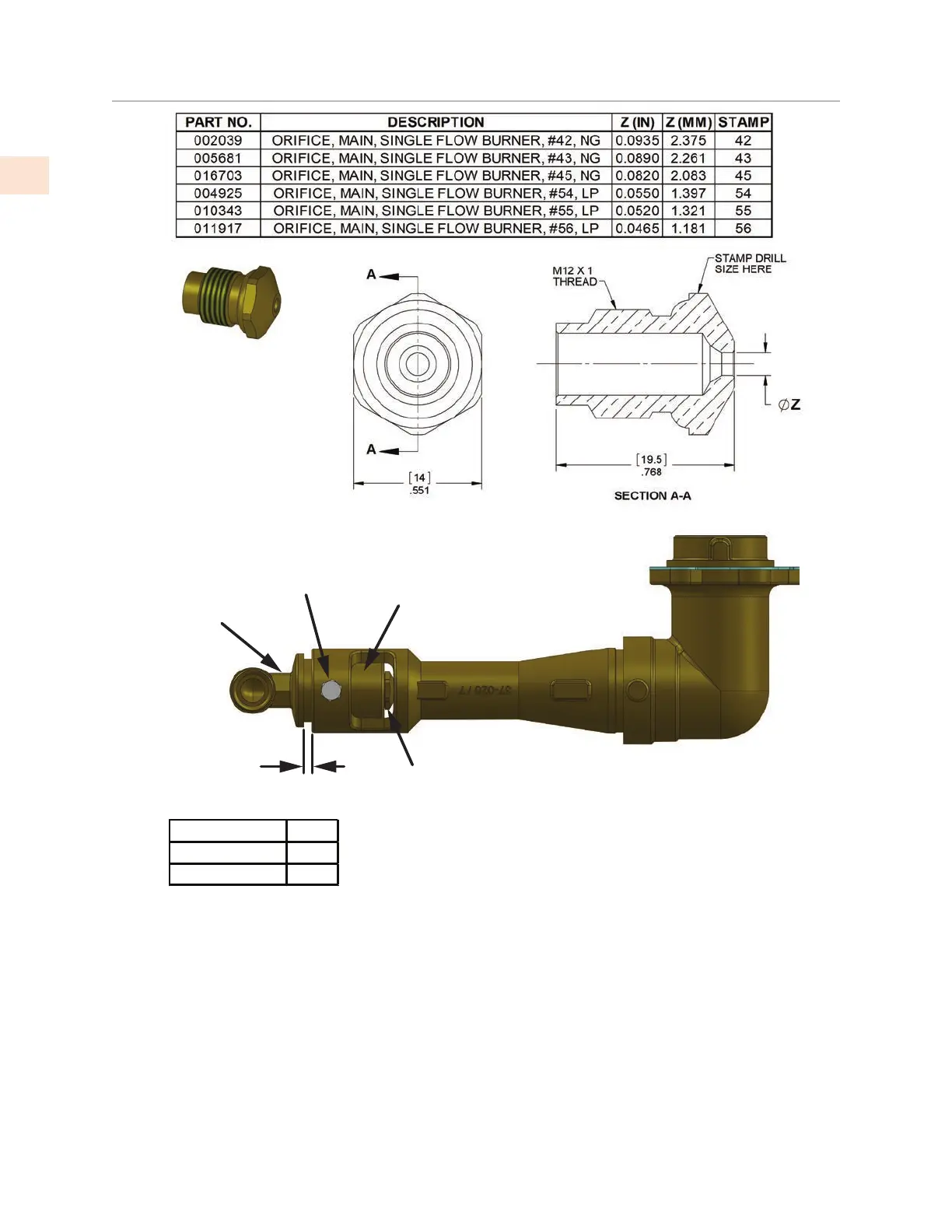

CHANGING BURNER ORIFICES - RANGETOP SECTION
(cont.)
9. The main BURNER orifice can be replaced without disconnecting the hose, however care must be
taken when handling to avoid bending or kinking the hose. Loosen the lock screw to extract the
orifice holder from the main body. See the chart on page 6 to select the appropriate orifice size for
your gas type / altitude. The part number and identification for the orifice is given in the table above.
When reinstalling the orifice holder in the body, be sure to set the correct air shutter distance
(Dimension X), then tighten the lock screw. If later on, the flame characteristics require adjustment,
loosen the lock screw and adjust the air shutter in or out in very tiny increments, lock down the
screw, replace all the components and check the flame again.
