– Check freewheeling of the impeller
– Check all parts for tightness, particularly screws, protection guards. Do not loosen screws in the process!
– Check fan for vibration and noise during test run
– Compare power consumption to rating plate data

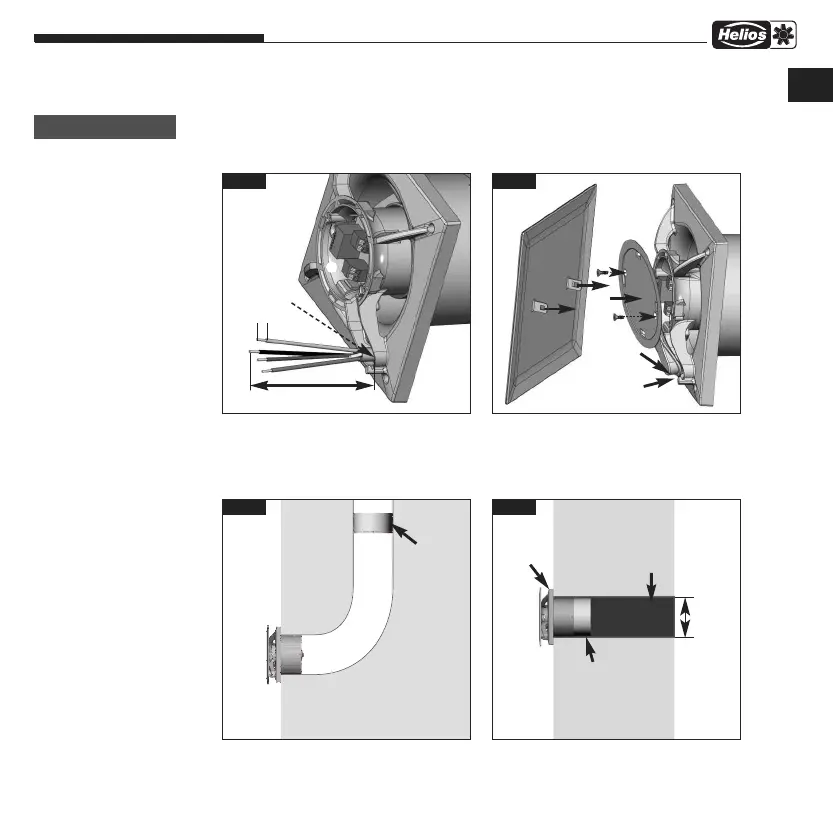

6.5 Mounting
MiniVent M1/100/120
Installation and Operation Instructions
9
fig.12 fig.13
➊
➋
➌
100 mm
7 mm
Attach terminal
compartment cover
Sealing
compound
UK
1. Align terminal compartment cover
➋
with groove,
attach and screw to casing.
2. Then snap-in facia
➊
.
- Length of single conductors 100 mm
- Stripping length 7 mm
- Strip sheathed cable flush with cable duct
fig.15fig.14
Standard installation
WES 1.. or
TWH 1..
Guide vane with
back draught
shutter
Mount guide
vane with
back draught
shutter at the
end of the
duct or just
omit it.
Fan
Duct channel
90° bend
Assembly in cramped
conditions
Room side
Outside
Core drill
hole
M1/100 =
Ø 115 mm
M1/120 =
Ø 130 mm
WARNING
