MiniVent M1/100/120
Installation and Operation Instructions
6
All subsequent information and instructions are intended solely for
authorised electricians!
6.0 Scope of delivery/Design
Leave the delivery unit in its box until installation. Check that the fan is in good condition and has not been damaged
in transit.
6.1 Preparation for wall or ceiling installation (surface mounted)
The safety instructions in chapter 1.2 must be observed!
The fan is delivered as a complete unit, i.e. ready for connection, as standard. The installation and start-up of the fan
should take place after the completion of all other works and after the final cleaning, in order to prevent damage and
contamination of the ventilation unit.
After the removal of packaging and the start of installation, the following points must be checked:
– is there any transport damage,
– broken or bent parts
– freewheeling of the impeller
6.2 Installation
The M1/100/120 MiniVent is designed for direct wall installation. The housing must not be deformed or warped du-
ring installation, and the flat structure of the installation surface must be ensured. The fans must only be installed on
sufficiently solid and stable subsurfaces with suitable fastening materials. Sufficient backflow must be ensured! If ap-
plicable, observe instructions in DIN 1946-6.
1. Cable exit from the wall:
– The location of the cable outlet varies in the dark area (fig.6).
– Distance to the duct centre depending on cable exit 58/68* mm with a variable position under the casing.
– For a simple assembly an exit is recommended as shown (turnable by 90° in each case).
The optimal position is 45° each if the cable exit is directly at the position of the cable grommet.
MiniVent M1/100/120..
➍
➎
➏
➊

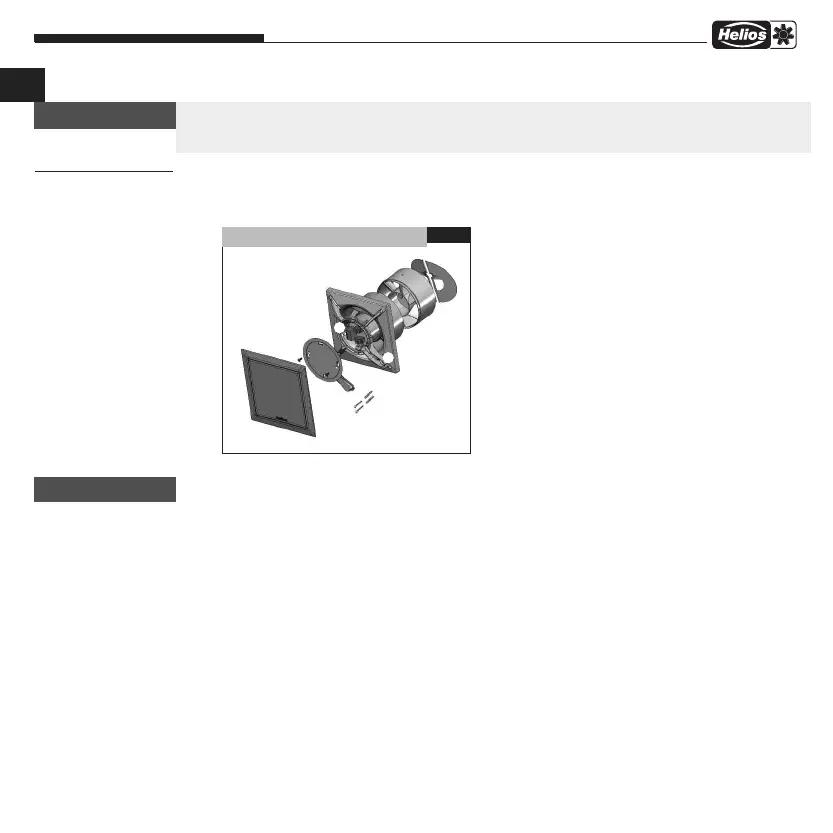

fig.5
➋
➊ Facia
➋ Terminal compartment cover
incl. 2x fastening screws
➌ Control board
➍ Plastic casing with impeller
➎ Guide vane removable at reduced installation depth
➏ Back draught shutter removable
➐ Cable grommet
➑ Assembly kit
2x screws including plugs for wall mounting
➌
➐
➑
CHAPTER 6
INSTALLATION
UK
WARNING
ATTENTION
